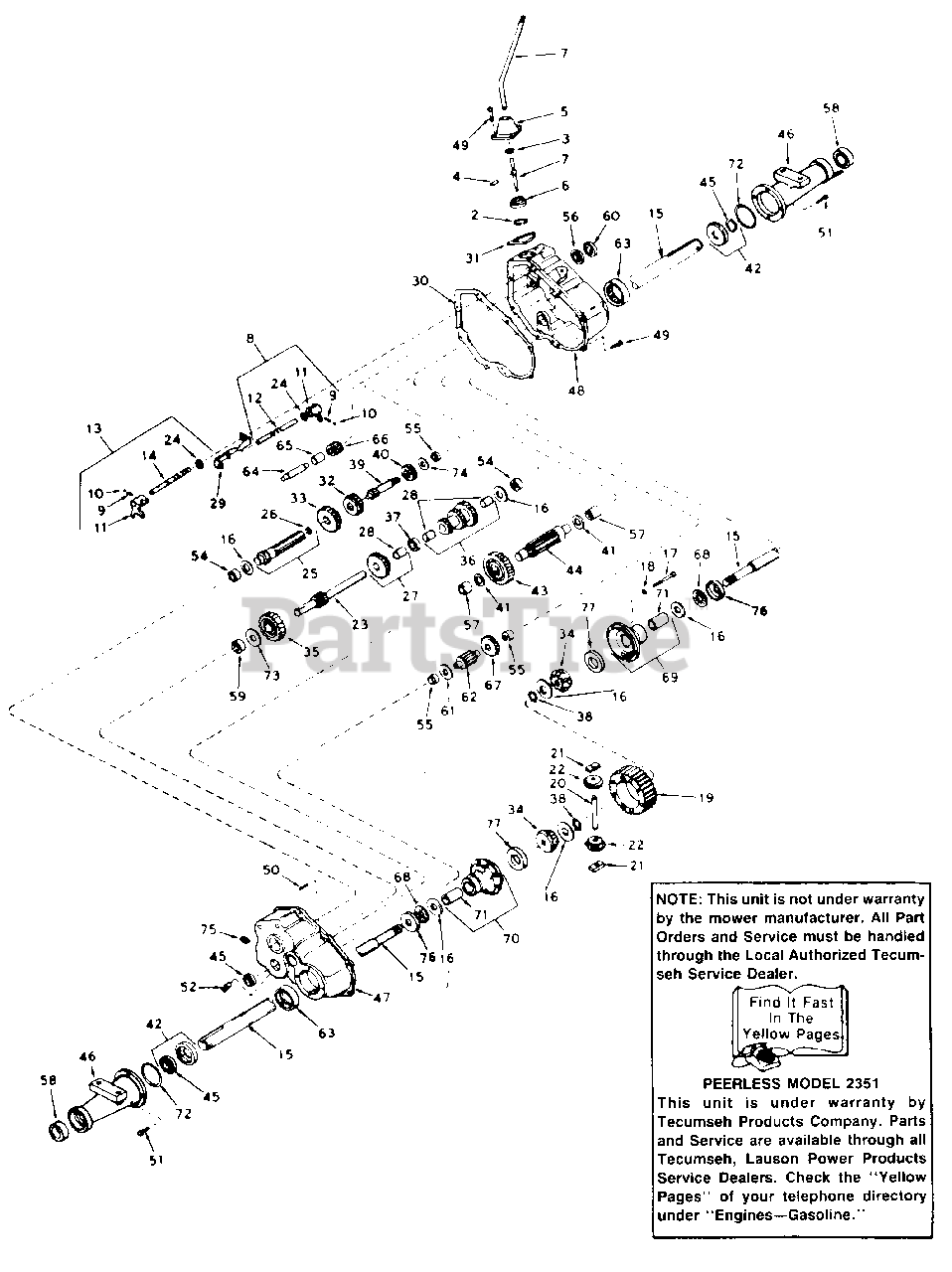

14833C - MTD Garden Tractor (1986) Transaxle Parts Diagram

Garden Tractor

Transaxle Parts Diagram

  • Title

2

MTD PE-792016

Ring: Snap

$

$

Currently unavailable

3

MTD PE-792001

Ring: Quad

$

$

Currently unavailable

4

MTD PE-792049

Pin: Roll

$

$

Currently unavailable

5

MTD PE-784093

Housing: Shift Lever

$

$

Currently unavailable

6

MTD PE-784094

Keeper: Shift Lever

$

$

Currently unavailable

7

MTD PE-784308

Lever: Shift

$

$

Currently unavailable

8

MTD PE-784054

Rod Ass'y.: Shift

Note: (Incl. Nos. 9 thru 12 and 24)

$

$

Currently unavailable

9

MTD PE-792003

Spring

$

$

Currently unavailable

10

MTD PE-792004

Ball: Steel

$

$

Currently unavailable

11

MTD PE-784004

Fork: Shifter

$

$

Not available

12

MTD PE-784055

Rod: Shifter

Note: (3rd and 4th)

$

$

Currently unavailable

13

MTD PE-784056

Rod Ass'y.: Shift

Note: (Incl. Nos. 9: 10: 11: 14 and 24)

$

$

Currently unavailable

14

MTD PE-784057

Rod: Shifter

Note: (Low)

$

$

Currently unavailable

15

MTD PE-774433

Axle (18-11/32" Long)

$

$

Currently unavailable

16

MTD PE-780042

Washer: Thrust

$

$

Currently unavailable

17

MTD PE-792005

Scr.: Hex Hd.: 1/4-20 x 2 1/2

$

$

Currently unavailable

18

MTD PE-792006

Lock Washer: 114"

$

$

Currently unavailable

19

MTD PE-778033A

Gear: Ring

$

$

Currently unavailable

20

MTD PE-786019

Pin: Drive

$

$

Currently unavailable

21

MTD PE-786027

Block: Drive

$

$

Currently unavailable

22

MTD PE-778094

Pinion: Bevel

$

$

Currently unavailable

23

MTD PE-776029A

Shaft and Gear: Brake

$

$

Currently unavailable

24

MTD PE-792017

Ring: Snap

$

$

Currently unavailable

25

MTD PE-776189A

Shaft and Bearing Ass'y.: Pinion

Note: (Incl. No. 26)

$

$

Currently unavailable

26

MTD PE-780018

Bearing: Needle

$

$

Currently unavailable

27

MTD PE-778034

Gear Cluster Ass'y.

Note: (Incl. No. 28)

$

$

Currently unavailable

28

MTD PE-780053

Bushing

$

$

Currently unavailable

29

MTD PE-784074

Stop: Shifter

$

$

Currently unavailable

30

MTD PE-788023

Gasket: Case and Cover
(Superseded to TC-788023)

$4.49

$

Usually ships in 3-12 days

0

31

MTD PE-788022

Gasket: Shifter Lever Housing

$

$

Not available

32

MTD PE-778019A

Gear: Shifting

Note: (3rd and 4th)

$

$

Not available

33

MTD PE-778020

Gear: Shifting

Note: (1st: 2nd and Rev.)

$

$

Not available

34

MTD PE-778095

Gear: Bevel

$

$

Currently unavailable

35

MTD PE-778037

Gear: Idler

$

$

Currently unavailable

36

MTD PE-778035A

Gear Cluster Ass'y.

Note: (Incl. No. 28)

$

$

Not available

37

MTD PE-786024

Spacer

$

$

Currently unavailable

38

MTD PE-792018

Ring: Snap

$

$

Currently unavailable

39

MTD PE-776175

Shaft: Input

$

$

Currently unavailable

40

MTD PE-778024A

Spur Gear: Input Shaft

$

$

Currently unavailable

41

MTD PE-780052

Washer: Thrust

$

$

Currently unavailable

42

MTD PE-788021

Seal and Retainer Ass'y.: Oil

Note: (Incl. No. 45)

$

$

Currently unavailable

43

MTD PE-778036

Gear: Output

$

$

Currently unavailable

44

MTD PE-776028

Pinion: Output

$

$

Currently unavailable

45

MTD PE-788008

Seal: Oil
(Superseded to TC-788008)

$8.49

$

In Stock, only 2 left!

0

46

MTD PE-782025

Housing: Axle

$

$

Currently unavailable

47

MTD PE-772016A

Cover Ass'y.: Transaxle

Note: (Incl. Nos. 54: 55: 57: 59 and 63)

$

$

Currently unavailable

48

MTD PE-770012

Case Ass'y.: Transaxle

Note: (Incl. Nos. 54: 55: 57 and 63)

$

$

Currently unavailable

49

MTD PE-792007

Screw: Socket Hd.: 1/4-20 x 314

$

$

Currently unavailable

50

MTD PE-786026

Pin: Dowel

$

$

Currently unavailable

51

MTD PE-792037

Screw: Hex Hd. Sems: 5/16-18 x 1

$

$

Currently unavailable

52

MTD PE-792019

Plug: Magnetic Drain

$

$

Currently unavailable

54

MTD PE-780049

Bearing: Needle

$

$

Currently unavailable

55

MTD PE-530105

Bearing: Needle

$

$

Currently unavailable

56

MTD PE-780024

Bearing: Ball

$

$

Currently unavailable

57

MTD PE-780047

Bearing: Needle

$

$

Currently unavailable

58

MTD PE-780050

Bearing: Ball

$

$

Not available

59

MTD PE-780046

Bearing: Needle

$

$

Currently unavailable

60

MTD PE-788025

Seal: Oil

$

$

Currently unavailable

61

MTD PE-780001

Washer

$

$

Not available

62

MTD PE-776031

Shaft and Pinion

$

$

Not available

63

MTD PE-780048

Bearing: Needle

$

$

Currently unavailable

64

MTD PE-776030

Shaft: Reverse Idler

$

$

Currently unavailable

65

MTD PE-786025

Spacer: Reverse Idler

$

$

Currently unavailable

66

MTD PE-778016

Idler: Reverse

$

$

Currently unavailable

67

MTD PE-778038

Spur Gear (22 Teeth)

$

$

Currently unavailable

68

MTD PE-780039

Bearing: Thrust

$

$

Currently unavailable

69

MTD PE-774072A

Carrier Ass'y.: Differential

Note: (Incl. No. 71)

$

$

Currently unavailable

70

MTD PE-774071A

Carrier Ass'y: Differential

Note: (Incl. No. 71)

$

$

Currently unavailable

71

MTD PE-780041

Bushing

$

$

Currently unavailable

72

MTD PE-788024

"O" Rlng

$

$

Currently unavailable

73

MTD PE-780007

Washer: Thrust

$

$

Currently unavailable

74

MTD PE-780051

Washer: Thrust

$

$

Currently unavailable

75

MTD PE-792010

Plug: Pipe

$

$

Currently unavailable

76

MTD PE-780075

Race: Thrust

$

$

Currently unavailable

77

MTD PE-780107

Washer

$

$

Currently unavailable
