14833C - MTD Garden Tractor (1986) Electrical Parts Diagram

Garden Tractor

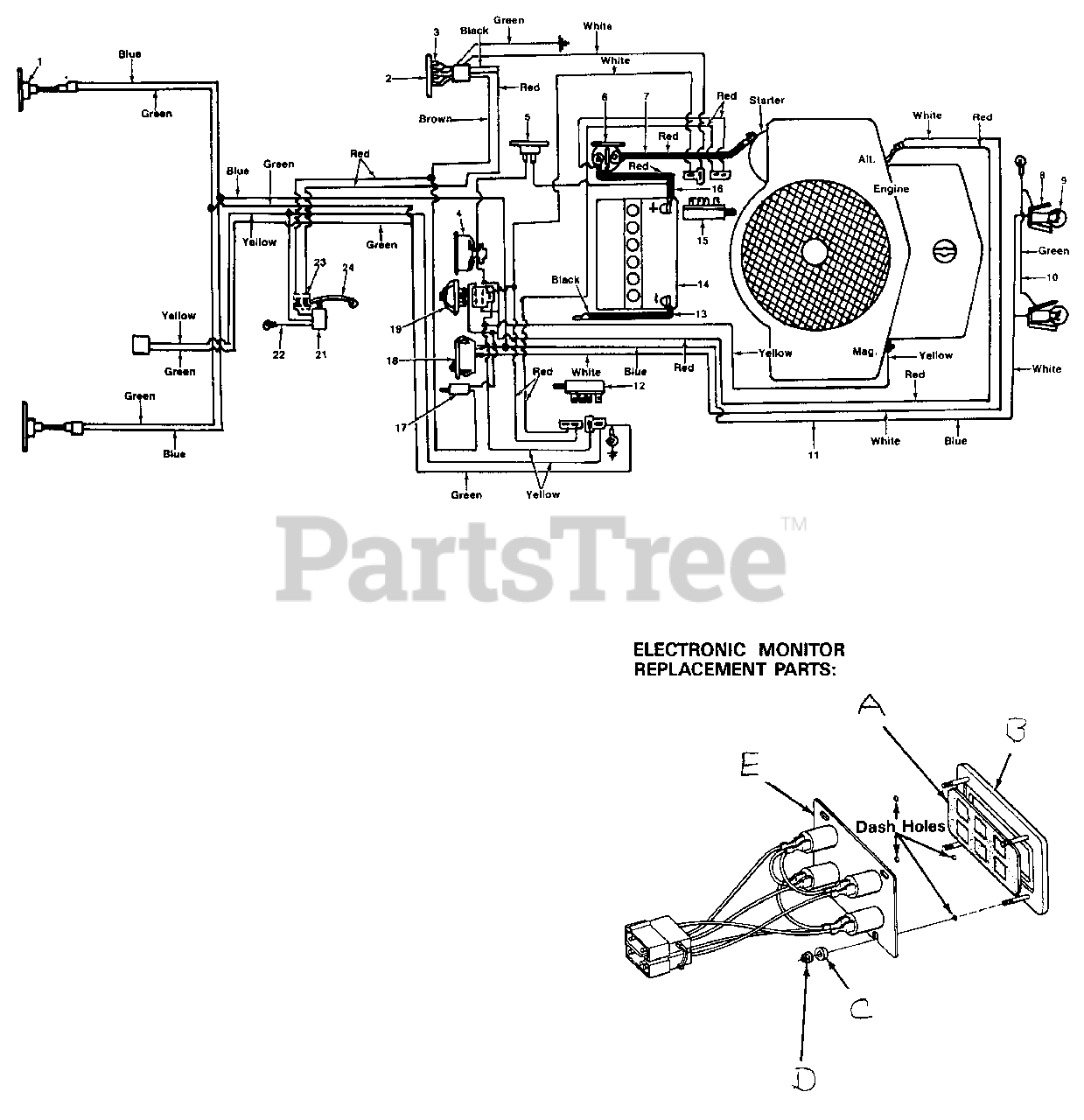

Electrical Parts Diagram

  • Title

1

MTD 725-1128

Taillight

$

$

Not available

2

MTD 725-1122

Indicator Light Ass'y.

$

$

Currently unavailable

3

MTD 725-3104

Lamp

$

$

Not available

4

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

5

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

6

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

7

MTD 725-0561

Wire
(Superseded to 629-0705)

$

$

Not available

8

MTD 725-1058

Socket
(Superseded to 925-1058A)

$

$

Not available

9

MTD 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

10

MTD 725-0916

Ground Wire
(Superseded to 725-0916A)

$

$

Not available

11

MTD 725-1127

Wire Harness

$

$

Currently unavailable

12

MTD 725-0465

Safety Switch
(Superseded to 925-0465A)

$30.99

$

In Stock, only 1 left!

0

13

MTD 725-0996

6 Ga. Black Wire 7.5" Lg.

$

$

Not available

14

MTD 725-0453

12V Battery

$

$

Not available

15

MTD 725-0842

Safety Switch

$

$

Not available

16

MTD 725-0563

Wire

$

$

Currently unavailable

17

MTD 725-0277

Safety Switch N.O. Black

$

$

Not available

18

MTD 725-1130

Headlight Switch

$

$

Not available

19

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

Note: (Not Shown)

$9.49

$

In Stock, only 1 left!

0

21

MTD 725-1197

Safety Switch

$

$

Currently unavailable

22

MTD 725-0765

Elec. Wire

$

$

Not available

23

MTD 725-1204

Switch Lead Adapter

$

$

Currently unavailable

24

MTD 732-0405

Spring Lever

$

$

Currently unavailable
