148 N (125-148N100) - Cub Cadet Walk-Behind Mower (1995) Drive And Wheel Assembly Parts Diagram

Walk-Behind Mower

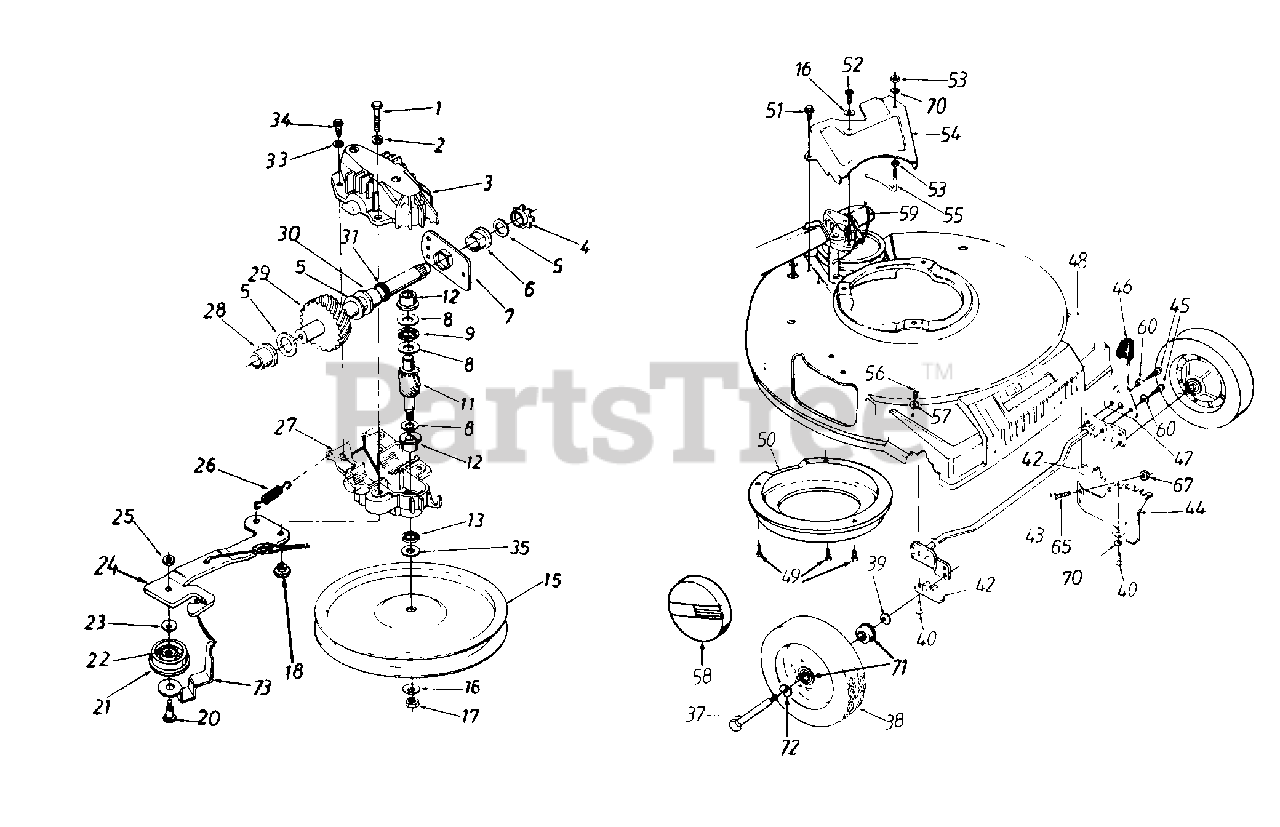

Drive And Wheel Assembly Parts Diagram

  • Title

1

Cub Cadet 710-1062

Hex Patch Bolt 1/4-20 x 1.25"

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

Cub Cadet 717-0418A

Upper Hsg. Half

$

$

Not available

4

Cub Cadet 713-0400

#48 Sprocket 7T x 1/2 Pitch

$

$

Not available

5

Cub Cadet 736-0336

Fl-Wash. 5/8" I.D. x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

6

Cub Cadet 741-0413

Hex Flange Brg. .631" I.D.

$9.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

Cub Cadet 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0314

Thrust Wash. .382" I.D. x .70" O.D

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 741-0479

Thrust Bearing .375" I.D. x .812" O.D.

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 717-1216

11 Tooth Pinion Shafts
(Superseded to 917-1216)

$

$

Not available

12

Cub Cadet 748-0208A

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 721-0212

Oil Seal

$

$

Not available

15

Cub Cadet 756-0330A

Fl-Pulley 5.06" O.D.

$

$

Not available

16

Cub Cadet 736-0270

Bell-Wash. .265" I.D. x.75"

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0351

Hex L-Nut 1/4-28 L.H. Thd.
(Superseded to 712-04326)

$14.99

$

In Stock, only 1 left!

0

18

Cub Cadet 738-0440

Shld. Spacer .375" Dia. x .170

$5.99

$

In Stock, only 4 left!

0

20

Cub Cadet 738-0826

Shld. Bolt .375" Dia. x .40"

$12.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 656-0008

Fl-Idler Plastic 1.50" Dia.
(Superseded to 956-0008)

Note: (Incl. Ref. 22)

$20.99

$

In Stock, only 3 left!

0

22

Cub Cadet 741-0556

Needle Brg. .375" x .31

$17.99

$

In Stock, only 3 left!

0

23

UNKNOWN

$

$

Not available

24

Cub Cadet 782-7570

Idler Brk't. Ass'y.
(Superseded to 682-0054)

$25.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-0138

Hex Patch L-Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-0357

Extension Spring 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, only 3 left!

0

27

Cub Cadet 717-0419A

Lower Hsg. Half

$

$

Not available

28

Cub Cadet 741-0415

Flange Bearing .566 Dia.
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 717-0616A

Shaft Ass'y.

$

$

Not available

30

Cub Cadet 741-0414

Flange Bearing .629 Dia.

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 721-0213

Oil Seal .625 Dia.

$10.99

$

In Stock, only 1 left!

0

33

Cub Cadet 736-0722

L-Wash. #10 I.D.

$6.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-0436

Hex B-Tap Scr. #10 x.62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0410

Hex Washer 26" x .88"
(Superseded to 936-0410)

$

$

Not available

?36

Cub Cadet 717-0417B

Transmission Comp
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

38

Cub Cadet 734-1517B

Wheel Ass'y Comp.

$68.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0105

Bell-Wash 380" I.D. x .88

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 710-1241

Hex Wash Hd. Scr 1/4 x 1" Lg.

$6.99

$

In Stock, Qty 19

0

42

Cub Cadet 741-0492A

Block Bushing

$6.49

$

In Stock, Qty 9

0

43

Cub Cadet 17733

Axle Ass'y

$

$

Not available

44

Cub Cadet 782-0516

Height Adj. Bracket

$

$

Not available

45

Cub Cadet 710-0653

Hex TT-Tap Scr 1/4-20 x .38"

$4.49

$

In Stock, Qty 13

0

46

Cub Cadet 720-0190

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

47

Cub Cadet 732-0639

Spring Lever

$

$

Not available

48

Cub Cadet 731-1281

Plastic Front End
(Superseded to 931-1281A)

$

$

Not available

49

Cub Cadet 710-0352

Hex B-Tap Scr. 1/4" x .38"

$4.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 782-7558

Belt Cover

$

$

Not available

51

Cub Cadet 710-0599

Hex Wash. Hd. TT-Scr. 1/4-20

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 710-0896

Hex Wash Hd B-Tap Scr 1/4 x .62" (Spec.)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 17058A

Transmission Belt Cover
(Superseded to 17058A-0637)

Variations

Cub Cadet 17058A-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

55

Cub Cadet 747-0549

S.P. Belt Guard

$

$

Not available

56

Cub Cadet 710-1242

Torx Truss Hd. Scr. 5/16 x .75"

$4.99

$

In Stock, Qty 19

0

57

Cub Cadet 736-0242

Bell-Wash 345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

59

Cub Cadet 746-0710A

S.P. Cable
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

60

Cub Cadet 736-0222

External L-Wash 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

65

Cub Cadet 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

67

Cub Cadet 712-3027

Hex Flange L-Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0329

L-Wash 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

71

Cub Cadet 741-0484

Wheel Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

72

Cub Cadet 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

73

Cub Cadet 782-7569

Belt Guard

$7.49

$

Usually ships in 3-6 days

0
