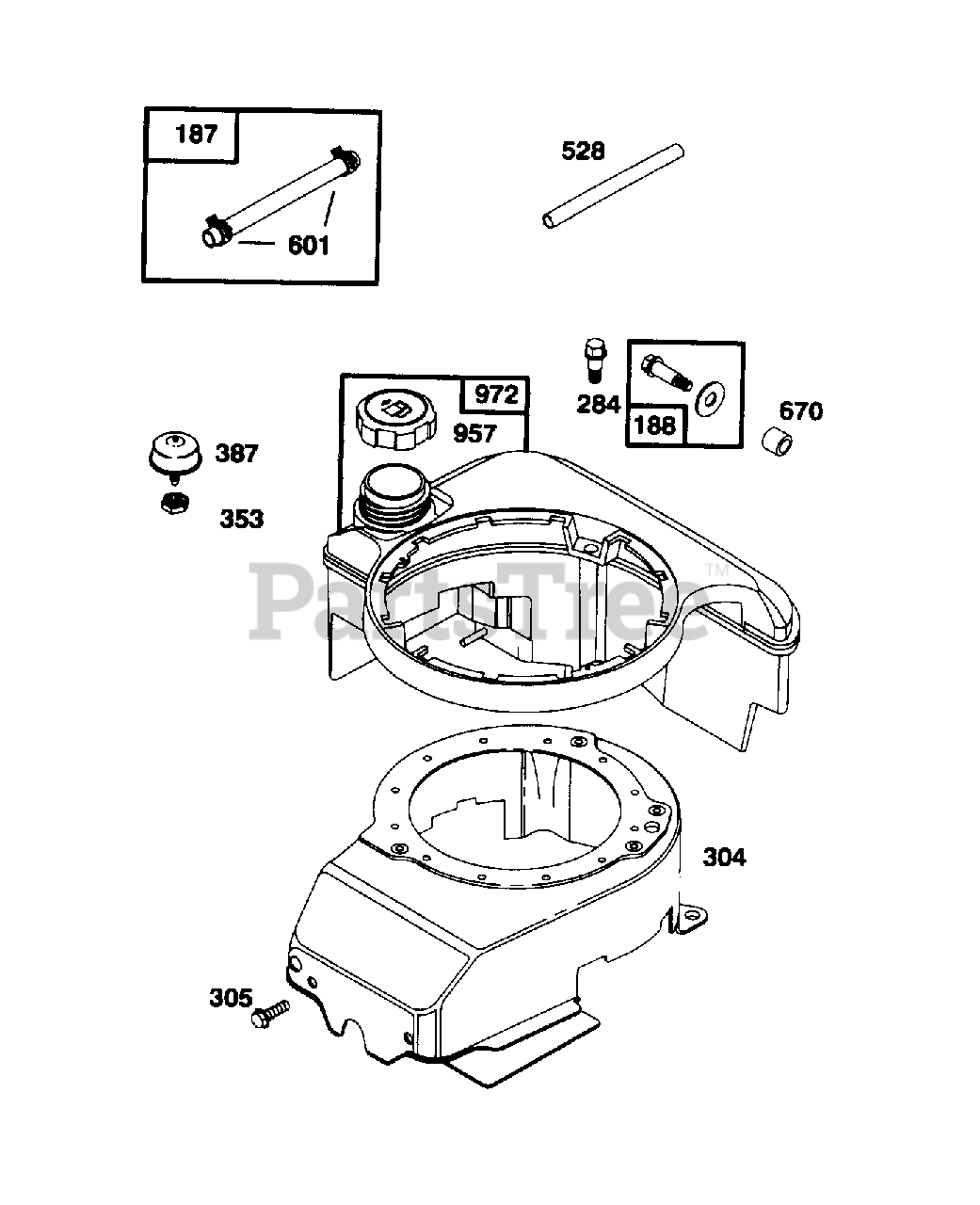

148 C (123-148C100) - Cub Cadet Walk-Behind Mower Engine (1993) B&S 5 HP Fuel Tank Ass'y & Blower Housing Parts Diagram

Walk-Behind Mower Engine

B&S 5 HP Fuel Tank Ass'y & Blower Housing Parts Diagram

  • Title
187

Cub Cadet BS-492790

Hose--Fuel
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

188

Cub Cadet BS-398540

Screw--Tank Mounting
(Superseded to BS-692311)

Note: (Includes Washer)

$7.49

$

Usually ships in 2-12 days

0

284

Cub Cadet BS-94511

Screw--Hex Head
(Superseded to BS-690940)

$3.99

$

In Stock, Qty 8

0

304

Cub Cadet BS-493293

Housing--Blower
(Superseded to BS-795071)

$102.99

$

In Stock, only 2 left!

0

305

Cub Cadet BS-94513

Screw--Hex Head Sem
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 12

0

353

Cub Cadet BS-94581

Washer--Lock

$

$

Not available

387

Cub Cadet BS-394281

Primer Ass'y.
(Superseded to BS-394281S)

$16.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-399254

Hose--Primer

$9.49

$

Usually ships in 2-12 days

0

601

Cub Cadet BS-93807

Clamp--Hose (Black)

$

$

Not available

670

Cub Cadet BS-280512

Spacer--Fuel Tank
(Superseded to BS-692294)

$4.99

$

In Stock, Qty 5

0

957

Cub Cadet BS-397974

Cap Assembly--Fuel
(Superseded to BS-796577)

$16.99

$

In Stock, only 1 left!

0

972

Cub Cadet BS-495224

Tank Ass'y.--Fuel (1.6 Quart, Black)
(Superseded to BS-699374)

$64.99

$

In Stock, Qty 20+

0
