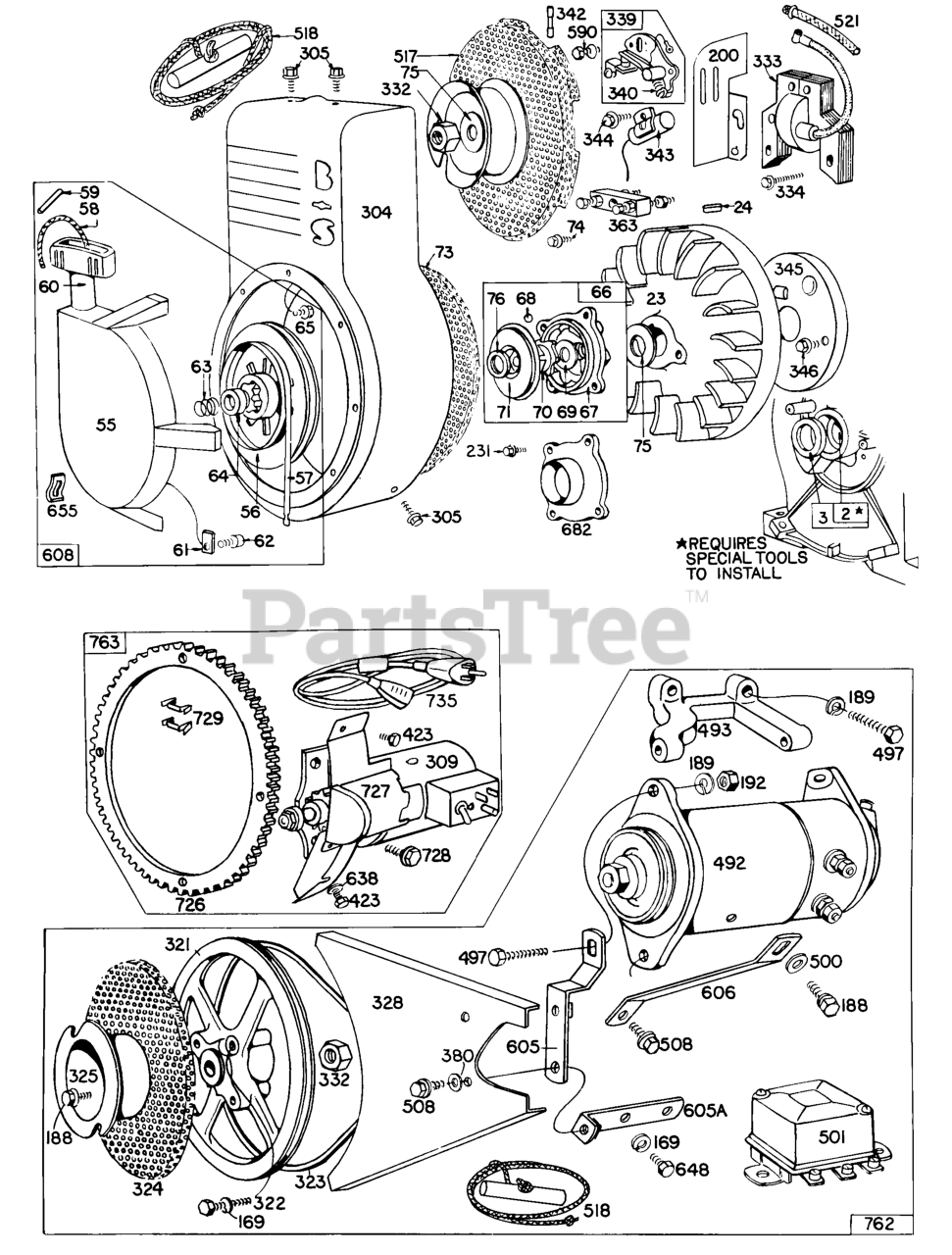

147404-0643-XX - Briggs & Stratton Horizontal Engine BlowerHsg,Rewind,Elec. Start Parts Diagram

Horizontal Engine

BlowerHsg,Rewind,Elec. Start Parts Diagram

  • Title

2

Briggs & Stratton 295962

Bushing/Seal Kit

Note: Requires special tools for installation.

$28.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 294606

Seal, Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

23

Briggs & Stratton 298260

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 61760

Key, Flywheel (For Breaker Ignition System)
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

55

Briggs & Stratton 295272

Housing, Rewind (Casting) (Used With Metal Pulley)
(Superseded to 693900)

$131.99

$

In Stock, Qty 9

0

55

Briggs & Stratton 297663

Housing-Rewind Starter

Note: Uses: 230581 Nut, Mounting (4)

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

Note: If longer rope is required, order No. 66894 and cut to length.

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind Starter
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66564

Rope-Starter (63" Long)

Note: If longer rope is required, order No. 66894 and cut to length.

$8.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 66564

Rope-Starter (63" Long)

Note: if longer rope is required, order No. 66574 and cut to length.

$8.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter Rope.
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

61

Briggs & Stratton 68848

Bumper-Starter Pulley
(Superseded to 68848S)

$1.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93254

Screw-Pulley Bumper Mounting Sem

$3.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 260414

Spring-Ratchet
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter-Spring
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 93163

Screw, Sem Hex Head
(Superseded to 691003)

Note: Used Before Code Date 6905011

$3.49

$

In Stock, Qty 9

0

65

Briggs & Stratton 93572

Screw, Hex Head Tap (10-32 X 3/8)
(Superseded to 690664)

Note: Used After Code Date 6904301

$5.49

$

In Stock, only 1 left!

0

66

Briggs & Stratton 295684

Clutch Assy.-Rewind Starter
(Superseded to 399671)

Note: Used Before Code Date 6601181

$34.99

$

In Stock, Qty 20+

0

66

Briggs & Stratton 298798

Clutch Assy.-Rewind Starter
(Superseded to 399671)

Note: Used After Code Date 6601171

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 210400

Housing-Starter Clutch

Note: Used Before Code Date 6601181

$

$

Not available

67

Briggs & Stratton 211383

Housing-Starter Clutch
(Superseded to 394897)

Note: Used After Code Date 6601171

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

69

Briggs & Stratton 66718

Washer, Thrust (1-1/16" O.d. X 17/32" I.d.)
(Superseded to 690271)

$8.49

$

In Stock, only 1 left!

0

70

Briggs & Stratton 296916

Ratchet-Rewind Starter Clutch

Note: Used Before Code Date 6601181

$

$

Not available

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: Used After Code Date 6601171

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221301

Washer

Note: Used Before Code Date 6601181

$1.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 221653

Washer, Steel (Non-Coated)
(Superseded to 691359)

Note: Used After Code Date 6601171

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 220823

Screen-Rewind Starter

Note: Used Before Code Date 6601181

$6.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 221796

Switch-Stop
(Superseded to 691754)

Note: Used After Code Date 6601171

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer, Belleville (Used With Heavy Flywheel)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

169

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 91449

Screw/Hex Hd

$

$

Not available

188

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 91397

Nut, Hex (5/16-18)
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

200

Briggs & Stratton 221760

Guide-Air
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 93064

Screw-Sem
(Superseded to 690292)

$3.99

$

In Stock, only 3 left!

0

304

Briggs & Stratton 299861

Blower Housing/Plat (No Tank)
(Superseded to 491596)

$

$

Not available

305

Briggs & Stratton 93128

Screw, Sem
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 299329

Motor Assy (For 110V Mitsubishi Or American Bosch)

$

$

Not available

309

Briggs & Stratton 299330

Motor-Starter (12v Mitsubishi & American Bosch)
(Superseded to 390307)

$

$

Not available

309

Briggs & Stratton 299556

Motor-Starter American Bosch 110V (Sme 110-c6)

$

$

Not available

309

Briggs & Stratton 299764

Motor-Starter American Bosch 110V (Sme 110-c8)

$

$

Not available

309

Briggs & Stratton 390307

Motor-Starter

Note: (Bosch or Mitsubishi)

$

$

Not available

309

Briggs & Stratton 390838

Motor-Starter (For 3-1/16" Housing Lenght)
(Superseded to 497595)

$110.99

$

In Stock, Qty 20+

0

321

Briggs & Stratton 210899

Pulley-Vee Belt

$39.99

$

Usually ships in 2-12 days

0

322

Briggs & Stratton 90931

Screw-Hex 1/4-20 X 2 1/4"

$3.99

$

Usually ships in 2-12 days

0

323

Briggs & Stratton 68588

Belt-Vee

$27.99

$

Usually ships in 2-12 days

0

324

Briggs & Stratton 221067

Screen-Rotating

$51.99

$

Usually ships in 2-12 days

0

325

Briggs & Stratton 299307

Pulley-Rope Start (With Screen)

$29.99

$

Usually ships in 2-12 days

0

328

Briggs & Stratton 221447

Guard-Belt

$28.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 92284

Nut, Jam (Flywheel)
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 298968

Armature-Mag (For Breaker Ignition)

$

$

Not available

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

339

Briggs & Stratton 29667

Breaker Assy.-Ignition

$

$

Not available

340

Briggs & Stratton 26018

Spring-Breaker Arm

$7.49

$

In Stock, only 1 left!

0

342

Briggs & Stratton 65704

Plunger-Breather Point
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

343

Briggs & Stratton 29861

Condenser

$25.99

$

Usually ships in 2-12 days

0

344

Briggs & Stratton 93370

Screw-Condenser Mtg. Sem

$5.49

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 221046

Cover-Breaker Point

$

$

Not available

346

Briggs & Stratton 93014

Screw, Sem
(Superseded to 93014GS)

$14.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19165

Puller-Flywheel (Optional Accessory)

$25.99

$

Usually ships in 2-12 days

0

380

Briggs & Stratton 62199

Washer, Steel
(Superseded to 692810)

$5.49

$

Usually ships in 2-12 days

0

423

Briggs & Stratton 93410

Screw-Hex

$7.99

$

In Stock, only 1 left!

0

492

Briggs & Stratton 296028

Starter-Gen (12v Delco-Remy #1101695 & Pulley #1949358)

$

$

Not available

493

Briggs & Stratton 211594

Bracket-Starter

$39.99

$

Usually ships in 2-12 days

0

497

Briggs & Stratton 91203

Screw, Hex Head Cap (5/16-18 X 1-3/4")
(Superseded to 691614)

$6.99

$

Usually ships in 2-12 days

0

500

Briggs & Stratton 91325

Washer-Plain
(Superseded to 690282)

$3.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 295924

Regulator (Flat Mount, Delco-remy)

$76.99

$

Usually ships in 2-12 days

0

508

Briggs & Stratton 93294

Screw, Sem (5/8" Long)
(Superseded to 692198)

Note: For 1/2" long Screw order Part No. 93158

$5.99

$

In Stock, Qty 11

0

517

Briggs & Stratton 295423

Screen/Pulley Assy
(Superseded to 496084)

$173.99

$

Usually ships in 2-12 days

0

518

Briggs & Stratton 69932

Rope/Grip Assy (55")
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

521

Briggs & Stratton 298529

Shielding-Ignition Cable

$33.99

$

Usually ships in 2-12 days

0

590

Briggs & Stratton 93226

Screw-Slotted Hex.
(Superseded to 690295)

$6.99

$

Usually ships in 2-12 days

0

605A

Briggs & Stratton 297171

Bracket-Support (Lower)

$5.49

$

Usually ships in 2-12 days

0

605

Briggs & Stratton 298758

Bracket-Guard (Upper)

$

$

Not available

606

Briggs & Stratton 221790

Strap-Adjusting

$9.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 295001

Starter-Rewind (Standard Length Rope)
(Superseded to 693900)

Note: For Starter Assembly with longer than standard rope order No. 298107

$131.99

$

In Stock, Qty 9

0

638

Briggs & Stratton 26404

Washer-Flat

$5.99

$

Usually ships in 2-12 days

0

648

Briggs & Stratton 91439

Screw-Cap, Hex. Head 1/4-20 X 3/8"

$

$

Not available

655

Briggs & Stratton 221014

Anchor-Rewind Spg

$5.99

$

Usually ships in 2-12 days

0

682

Briggs & Stratton 211516

Shield-Starter Clutch

$4.49

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 299543

Gear-Ring (Steel, Includes Mounting Parts)

$204.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 390233

Cover And Shield-Starter
(Superseded to 395405)

$

$

Not available

728

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

729

Briggs & Stratton 221907

Clip-Wire

$3.49

$

Usually ships in 2-12 days

0

735

Briggs & Stratton 390748

Cord, Appliance (For Canadian Use Only)
(Superseded to 390966)

$59.99

$

Usually ships in 2-12 days

0

735

Briggs & Stratton 390966

Cord-Starter (Includes Adaptor Plug)

$59.99

$

Usually ships in 2-12 days

0

762

Briggs & Stratton 297335

Electric Starter-Generator Kit 12 Volt (Low Position)

$

$

Not available

763

Briggs & Stratton 299914

Electric Starter Kit 110 Volt (Gear Drive)

$

$

Not available
