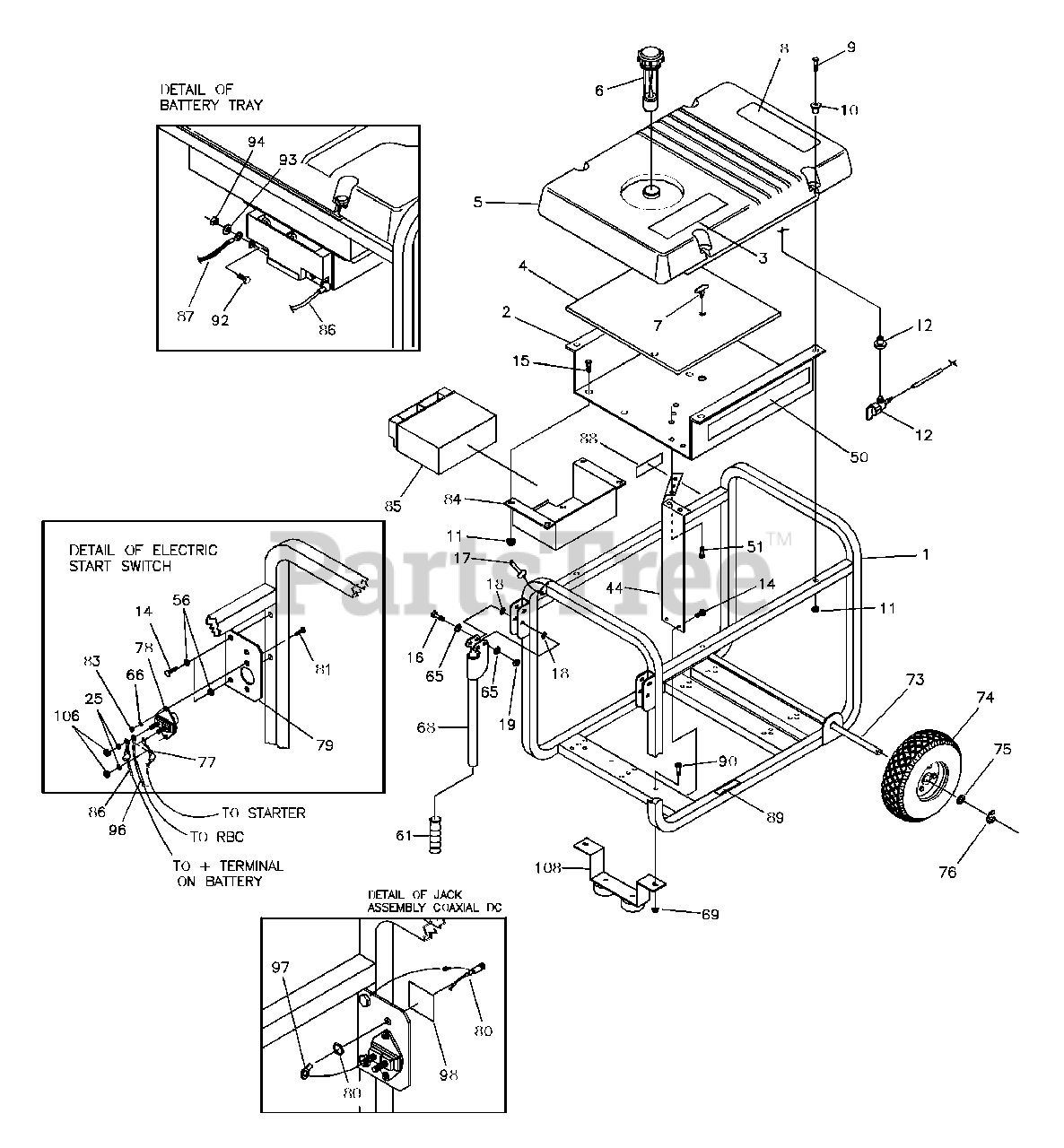

1470-0 - Generac EXL 7,000 Watt Portable Generator Frame Parts Diagram

EXL 7,000 Watt Portable Generator

Frame Parts Diagram

  • Title

1

Briggs & Stratton M187024GS

CRADLE
(Superseded to M197022GS)

$

$

Not available

2

Briggs & Stratton 192982GS

SHIELD, Heat

$60.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92665GS

INSULATION

$16.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B1998GS

ASSY,Tank, Fuel
(Superseded to 193500GS)

Note: (Includes Item 12)

$

$

Not available

6

Briggs & Stratton B4363GS

CAP, with Gauge, Fuel

$41.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 85000GS

CLIP, Insulation

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 93826GS

DECAL, Start Instructions

$14.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 78831BGS

SCREW

$

$

Not available

10

Briggs & Stratton 83465GS

GROMMET,Tank

$3.99

$

In Stock, only 4 left!

0

11

Briggs & Stratton 77395GS

NUT, Lock

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 192980GS

KIT,VLV, FUEL, SRV

$17.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 43116GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 39287GS

SCREW

$3.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton B4135GS

PIN, with Lanyard

$

$

Not available

18

Briggs & Stratton 187104GS

WASHER, Nylon

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 49820GS

NUT, Nylok

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

44

Briggs & Stratton 192983GS

SHIELD, Heat

$38.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 186798GS

DECAL, Heat Shield

$20.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 56893GS

SCREW

$3.49

$

In Stock, only 1 left!

0

56

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton B4605GS

GRIP
(Superseded to 198669GS)

$8.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 22145GS

WASHER

$2.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 22097GS

WASHER, Lock

$3.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton BB5586GS

HANDLE

Note: (Includes Item 61)

$

$

Not available

69

Briggs & Stratton 52858GS

NUT, Lock

$3.99

$

In Stock, only 2 left!

0

73

Briggs & Stratton 191267GGS

AXLE

$29.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton B4966GS

WHEEL
(Superseded to 209636GS)

$93.99

$

In Stock, only 2 left!

0

75

Briggs & Stratton 22247GS

WASHER

$3.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

77

Briggs & Stratton 189302BGS

ASSY,Wire

$17.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

In Stock, only 2 left!

0

79

Briggs & Stratton 188987GS

BRACKET, Switch

$10.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 188989GS

ASSY, Jack, DC
(Superseded to 192531GS)

$

$

Not available

81

Briggs & Stratton 22287GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 22127GS

NUT

$1.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 192985GS

TRAY, Battery

$81.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton B4489GS

BATTERY
(Superseded to 193043GS)

$137.99

$

In Stock, only 2 left!

0

86

Briggs & Stratton 189302CGS

ASSY,Wire

$

$

Not available

87

Briggs & Stratton 185939HGS

ASSY,Wire

$21.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 73054GS

DECAL, Fuel Shut-Off

$8.99

$

Usually ships in 2-12 days

0

89

Briggs & Stratton 77816GS

DECAL, Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 39253GS

SCREW

$3.49

$

In Stock, Qty 6

0

92

Briggs & Stratton 52618GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23897GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 52856GS

NUT

$3.49

$

Usually ships in 2-12 days

0

96

Briggs & Stratton 191698GS

ASSY,Wire

$42.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 58359GS

LUG

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 189198GS

DECAL, Instruction, ES

$8.99

$

In Stock, only 1 left!

0

106

Briggs & Stratton 22259GS

NUT

$3.49

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 189956GS

ASSY,Wheel Support
(Superseded to 193982GS)

$30.99

$

Usually ships in 2-12 days

0
