147-863-000 - MTD Garden Tractor (1987) Transaxle Parts Diagram

Garden Tractor

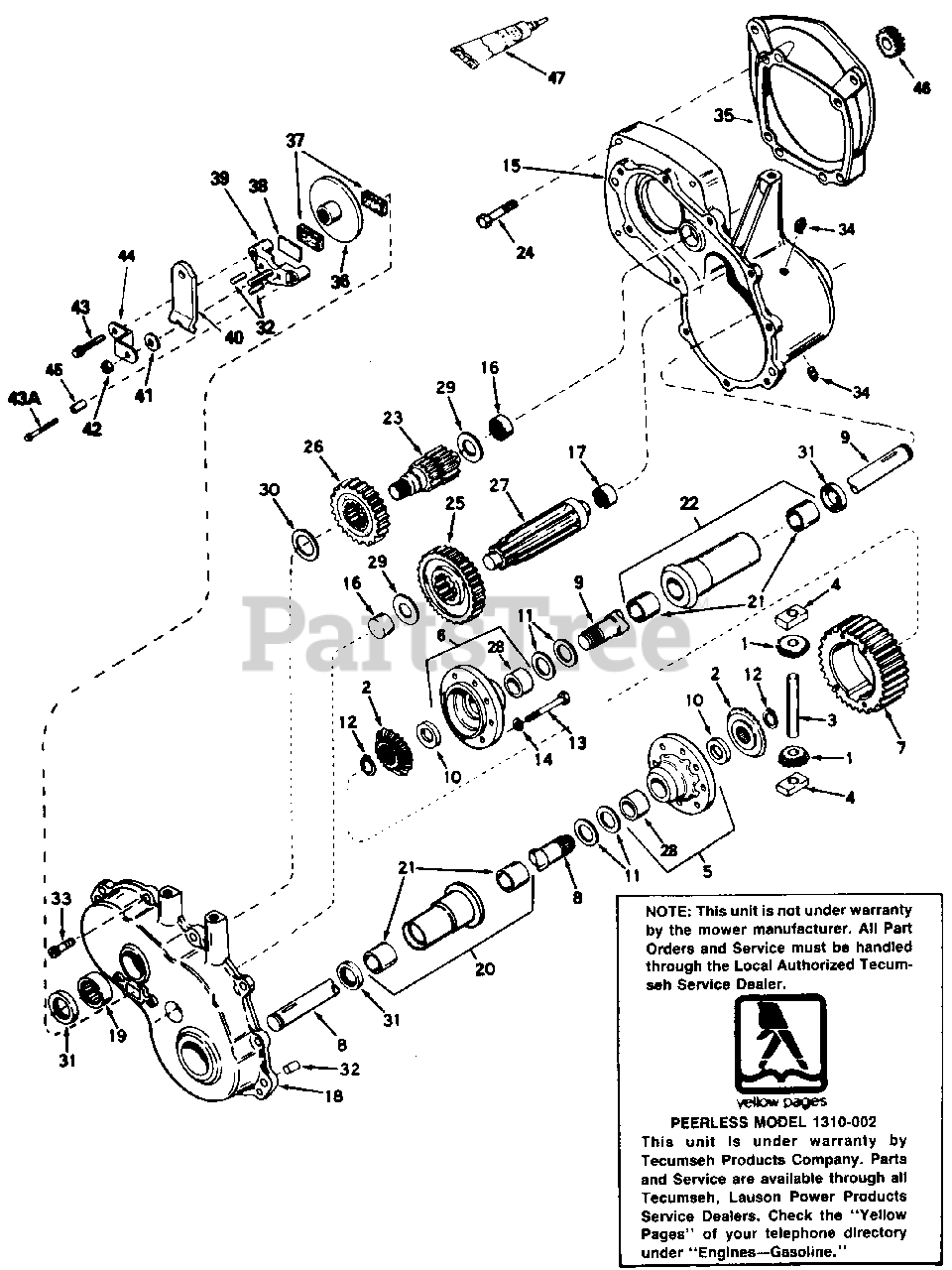

Transaxle Parts Diagram

  • Title

1

MTD PE-778094

Pinion, Bevel

$

$

Currently unavailable

2

MTD PE-778095

Gear, Bevel

$

$

Currently unavailable

3

MTD PE-786019

Pin, Drive

$

$

Currently unavailable

4

MTD PE-786027

Block, Drive

$

$

Currently unavailable

5

MTD PE-774609

Carrier Ass'y., Differential

Note: (Incl. No. 28)

$

$

Currently unavailable

6

MTD PE-774610

Carrier Ass'y., Differential

Note: (Incl. No. 28)

$

$

Currently unavailable

7

MTD PE-778033A

Gear, Ring

$

$

Currently unavailable

8

MTD PE-774611

Axle (13-1/16" Long)

$

$

Currently unavailable

9

MTD PE-774612

Axle (19-1/8" Long)

$

$

Currently unavailable

10

MTD PE-780107

Washer

$

$

Currently unavailable

11

MTD PE-780042

Washer, Thrust

$

$

Currently unavailable

12

MTD PE-792018

Ring, Snap

$

$

Currently unavailable

13

MTD PE-792005

Screw, Hex Hd., 1/4-20 x 21/4

$

$

Currently unavailable

14

MTD PE-792006

Lock Washer, 1/4"

$

$

Currently unavailable

15

MTD PE-770081

Case Ass'y.

Note: (Incl. Nos. 16 & 17)

$

$

Currently unavailable

16

MTD PE-780013

Bearing, Needle

$

$

Currently unavailable

17

MTD PE-780088

Bearing, Needle

$

$

Currently unavailable

18

MTD PE-772085

Cover Ass'y.

Note: (Incl. Nos. 16 & 19)

$

$

Currently unavailable

19

MTD PE-780089

Bearing, Needle

$

$

Currently unavailable

20

MTD PE-782041A

Housing & Bushing Ass'y. (6-518" Long)

$

$

Currently unavailable

21

MTD PE-780054

Bushing

$

$

Currently unavailable

22

MTD PE-782067

Housing & Bushing Ass'y.

Note: (12-45/64" Long)

$

$

Currently unavailable

23

MTD PE-776245

Shaft, Brake

$

$

Currently unavailable

24

MTD PE-792120

Screw, Hex Hd., 3/8-16 x 2

$

$

Currently unavailable

25

MTD PE-778036

Gear, Output

$

$

Currently unavailable

26

MTD PE-778195

Gear, Idler

$

$

Currently unavailable

27

MTD PE-776244

Shaft, Output

$

$

Currently unavailable

28

MTD PE-780144

Bushing

$

$

Currently unavailable

29

MTD PE-780001

Washer

$

$

Not available

30

MTD PE-780090

Washer

$

$

Currently unavailable

31

MTD PE-788008

Seal, Oil
(Superseded to TC-788008)

$8.49

$

In Stock, only 2 left!

0

32

MTD PE-786026

Pin, Dowel

$

$

Currently unavailable

33

MTD PE-792046

Screw, Hex Washer Hd. Thread Forming, 1/4-20 x 1

$

$

Currently unavailable

34

MTD PE-792010

Plug, Pipe

$

$

Currently unavailable

35

MTD PE-786112

Plate, Adapter

$

$

Currently unavailable

36

MTD PE-790027

Disc, Brake

$

$

Currently unavailable

37

MTD PE-790006

Pad, Brake
(Superseded to TC-799021)

$10.99

$

Usually ships in 3-12 days

0

38

MTD PE-790007

Plate, Brake Pad

$

$

Currently unavailable

39

MTD PE-790025

Holder, Brake Pad

$

$

Currently unavailable

40

MTD PE-790010

Lever, Brake

$

$

Currently unavailable

41

MTD PE-792076

Washer, Flat

$

$

Currently unavailable

42

MTD PE-792075

Lock Nut, 5/16-24

$

$

Currently unavailable

43

MTD PE-792073

Screw, Flanged Hex Ha. Thread Forming, 1/4 20 x 1 1/4
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

43A

MTD PE-792085

Screw, Flanged Hex Hd. Thread Forming, 1/4-20 x 2-1/4

$

$

Currently unavailable

44

MTD PE-786086

Bracket

$

$

Currently unavailable

45

MTD PE-786066

Spacer

$

$

Currently unavailable

46

MTD PE-778196

Gear, Spur (18 Teeth)

$

$

Currently unavailable

47

MTD PE-510334

Gasket Eliminator

$

$

Currently unavailable
