147 (2050203U) - Cub Cadet Garden Tractor Engine-K321a-14 Hp Parts Diagram

Garden Tractor

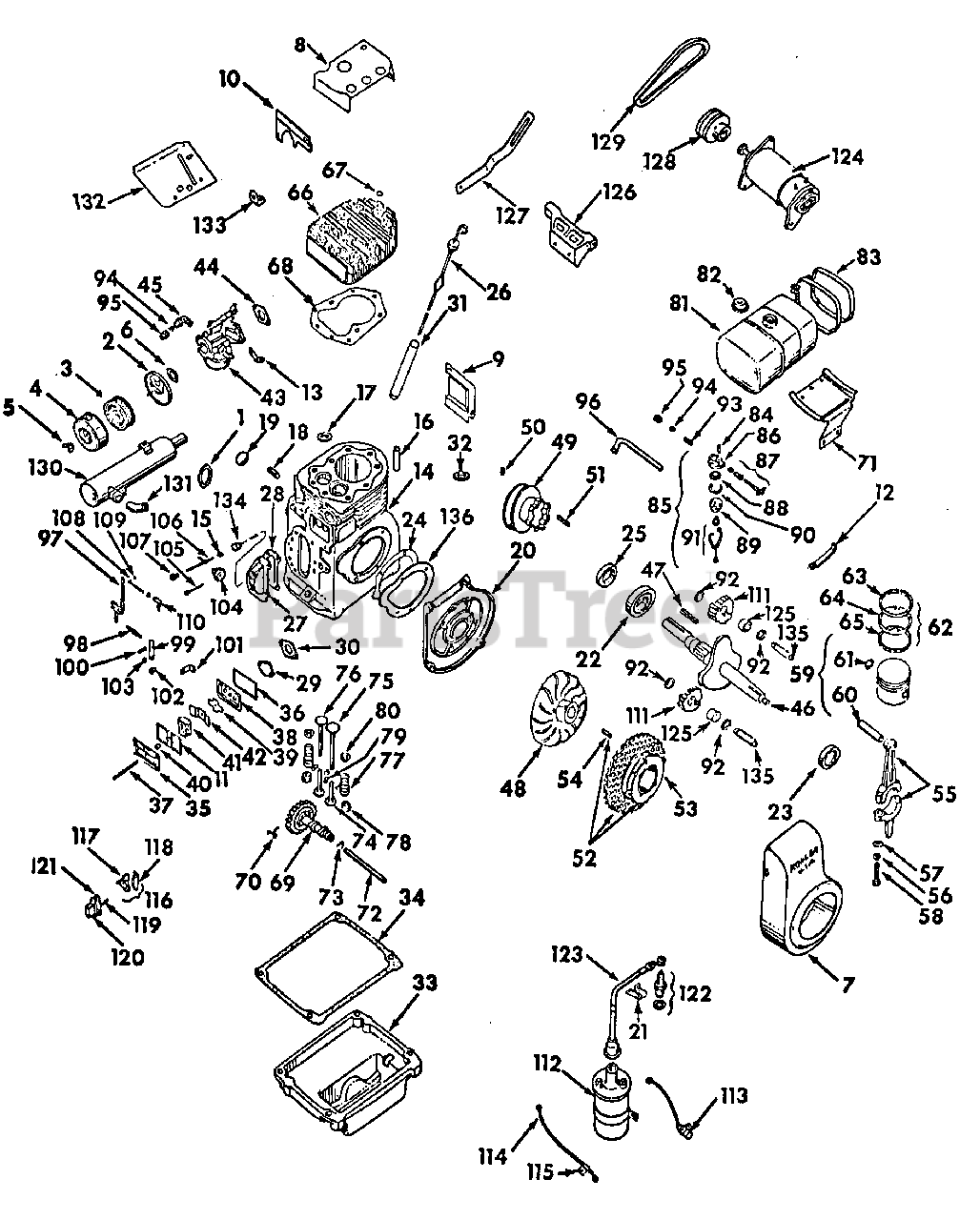

Engine-K321a-14 Hp Parts Diagram

  • Title

1

Cub Cadet 712-0250

Nut, Exhaust Muffler Elbow Lock

$

$

Not available

2

Cub Cadet KH-235101

Base, Air Cleaner

$

$

Not available

Screw, 10-32 X 5/16 Znd Fil Hd Slt Mach

Note: Common Hardware Purchase Locally

$

$

Not available

Washer, No. 10 Int Tooth Lock

Note: Common Hardware Purchase Locally

$

$

Not available

3

Cub Cadet IH-385168-R2

Element, Air Cleaner Filter
(Superseded to IH-385168-R3)

$30.99

$

In Stock, Qty 5

0

4

Cub Cadet KH-235102

Cover, Air Cleaner

$

$

Not available

~NLA

Washer, Packing

$

$

Not available

5

KH-X-2767

Nut, Air Cleaner Wing

$

$

Not available

6

Cub Cadet KH-275341

Gasket, Air Cleaner

$6.49

$

In Stock, only 3 left!

0

7

~NLA

Housing Assy, Blower

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/4 C-Z Hex Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

8

Cub Cadet KH-237677

Baffle, Cylinder Head Air

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/8 C-Z Hex Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

9

Cub Cadet KH-236676

Baffle, Cylinder Air

$

$

Not available

Cub Cadet IH-9409106

Screw w/Spring Lock Washer, 1/4-20 X 1/2 C-Z Hex Hd Mach

$

$

Not available

10

Cub Cadet KH-235652

Baffle, Housing Side Air

$

$

Not available

11

Cub Cadet KH-275144

Gasket, Valve Cover

$

$

Not available

12

Cub Cadet KH-A-237559

Bracket, Throttle Cable
(Superseded to KH-A-237559-S)

$

$

Not available

13

Cub Cadet KH-A-236919

Bracket, Choke

$

$

Not available

Cub Cadet KH-235603

Clip, Speed

$

$

Not available

14

Cub Cadet KH-77-522-46

Crankcase Assy

Note: (For service replacement) Consists of

$

$

Not available

Cub Cadet KH-234866

Bearing

$

$

Not available

Cub Cadet KH-235007-S

Guide

$

$

Not available

Cub Cadet KH-230170

Insert

$

$

Not available

Cub Cadet KH-235125-S

Shaft

$98.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-234866

Bearing, Needle

$

$

Not available

16

Cub Cadet KH-235007-S

Guide, Valve

$

$

Not available

17

Cub Cadet KH-230265

Insert, Exhaust Valve

$

$

Not available

18

Cub Cadet KH-235125-06

Shaft, Governor

$

$

Currently unavailable

19

Cub Cadet IH-172548

Plug, 1-1/8 Expansion (Crankcase)

$

$

Currently unavailable

20

Cub Cadet KH-45-156-03

Plate, Crankcase Brg

$

$

Not available

Screw, 3/8-16 X 1 C-Z Hex Hd Mach w/Spring Lock Washer

Note: Common Hardware Purchase Locally

$

$

Not available

21

~NLA

Clip, Spark Plug Cable

$

$

Not available

22

Cub Cadet IH-ST436

Bearing, Crankcase Ball
(Superseded to IH-ST436P)

$97.99

$

Usually ships in 3-6 days

0

23

Cub Cadet KH-47-032-06

Seal, Crankcase Brg Plate Oil

Note: (Blower housing end)

$

$

Not available

24

Cub Cadet KH-235070

Gasket, Brg Plate, .005

$

$

Not available

Cub Cadet KH-235070

Gasket, Brg Plate, .010

$

$

Not available

25

Cub Cadet KH-47-032-07

Seal, Crankcase Oil

Note: (Flywheel pulley end)

$

$

Not available

26

Cub Cadet KH-A-236640

Dipstick

$

$

Not available

27

~NLA

Cover, Camshaft

$

$

Not available

Cub Cadet IH-9409106

Screw, 1/4-20 X 1/2 C-Z Hex Hd Mach

$

$

Not available

28

Cub Cadet KH-235025

Gasket, Camshaft Cover
(Superseded to KH-235025-S)

$10.99

$

In Stock, Qty 7

0

29

Cub Cadet KH-240282

Cover, Fuel Pump Pad

$

$

Not available

Screw, 1/4-20 X 5/8 C-Z Fil-Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

30

Cub Cadet KH-52-041-17

Gasket, Fuel Pump Pad Cover

$

$

Not available

31

Cub Cadet KH-235895

Tube, Oil Fill

$

$

Not available

32

Cub Cadet KH-230265

Insert, Intake Valve

$

$

Not available

33

Cub Cadet KH-47-199-09

Base, Oil Pan

$

$

Not available

Cub Cadet KH-X-75-10

Plug, 3/8-18 Auto Sq-Hd Filler & Drain
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, only 3 left!

0

Screw w/Spring Lock Washer, 3/8-16 X 1-1/4 C-Z Hex-Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

34

Cub Cadet KH-235353

Gasket, Oil Pan Base

$11.99

$

In Stock, only 2 left!

0

35

Cub Cadet KH-A-235418-S

Cover, Breather

$

$

Not available

36

Cub Cadet KH-235048

Gasket, Breather

$

$

Not available

37

Cub Cadet KH-275220

Stud, Breather Cover

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Washer, 1/4 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

38

Cub Cadet KH-235631

Plate Assy, Breather

$

$

Not available

39

Cub Cadet KH-235047

Shim, Breather
(Superseded to KH-47-402-01-S)

$36.99

$

In Stock, only 1 left!

0

40

Cub Cadet KH-231032

Seal, Breather

$

$

Not available

41

Cub Cadet KH-235118

Filter, Breather

$

$

Not available

42

Cub Cadet KH-235117

Baffle, Breather

$

$

Not available

43

Carburetor Assy

Note: (For components see list of parts under details of carburetor)

$

$

Not available

Cub Cadet KH-X-770-1

Screw w/Internal Tooth Lock Washer, 5/16-18 X 1 Slt Hex Hd Cap

$

$

Not available

44

Cub Cadet KH-271030

Gasket, Carburetor

$7.49

$

Usually ships in 2-5 days

0

45

Cub Cadet IH-401967-R1

Elbow, Carburetor to Fuel Line

$

$

Not available

46

Cub Cadet KH-45-142-25

Crankshaft

$

$

Not available

47

Cub Cadet IH-532004-R1

Key, Crankshaft
(Superseded to KH-X-286-17)

$

$

Not available

48

Cub Cadet KH-237297

Flywheel

$

$

Not available

49

Cub Cadet KH-231591

Pulley w/Clutch Drive Plate, Flywheel

$

$

Not available

50

Cub Cadet KH-X-60-50

Screw, Flywheel Pulley Set

$

$

Not available

51

Cub Cadet IH-452779-R1

Key, 1/4 X 7/8 Sq Parallel
(Superseded to IH-452779-R2)

$

$

Not available

52

Cub Cadet KH-41-071-03

Cup Assy, Flywheel Drive

$

$

Not available

Screw, 1/4-20 X 5/8 C-Z Truss Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 736-0222

Washer, 1/4 Int Tooth Lock

$5.99

$

In Stock, only 3 left!

0

~NLA

Washer, Grass Screen

$

$

Not available

Cub Cadet IH-125267

Nut, 5/8-18 Znd Hex Lock

$

$

Not available

Cub Cadet KH-X-25-76

Washer, .641 X 1.250 X .250 Znp

$

$

Currently unavailable

Cub Cadet 759-3287

Cup w/Pulley

$

$

Not available

53

Cub Cadet KH-47-755-17

Screen, Drive Cup Grass

$

$

Not available

54

Cub Cadet IH-385293-R1

Pin, Flywheel Drive Cup
(Superseded to KH-X-56-7)

$

$

Not available

55

Cub Cadet KH-47-067-09

Rod Assy, Connecting, Std

$

$

Not available

Cub Cadet KH-47-067-10

Rod Assy, Connecting, .010 U/S

$

$

Not available

56

Washer, 3/8 Hv Connecting Rod Lock

Note: Common Hardware Purchase Locally

$

$

Not available

57

Cub Cadet 736-0140

Washer, Connecting Rod

$7.49

$

In Stock, Qty 7

0

58

Cub Cadet IH-117116-C1

Screw, Connecting Rod

$

$

Not available

59

Cub Cadet KH-47-874-11

Piston Assy, Std

$

$

Not available

Cub Cadet KH-47-874-13

Piston Assy, .010 O/S

$

$

Not available

Cub Cadet KH-47-874-14

Piston Assy, .020 O/S

$

$

Not available

Cub Cadet KH-47-874-15

Piston Assy, .030 O/S

$

$

Not available

60

~NLA

Pin, Piston, Std

$

$

Not available

61

Cub Cadet KH-47-018-01

Retainer, Piston Pin

$

$

Not available

62

Cub Cadet KH-48-108-05

Ring Set, Piston, Std

$

$

Not available

Cub Cadet KH-236764

Ring Set, Piston, .010 O/S

$

$

Not available

Cub Cadet KH-236765

Ring Set, Piston, .020 O/S

$

$

Not available

Cub Cadet KH-236766

Ring Set, Piston, .030 O/S

$

$

Not available

63

Ring, Top Compression

Note: (Not serviced separately, order ring set)

$

$

Not available

64

Ring, Center Compression

Note: (Not serviced separately, order ring set)

$

$

Not available

65

Ring, Oil Control

$

$

Not available

66

Cub Cadet KH-237670

Head, Cylinder

Note: (Replaces IH-532110-R1 by also ordering baffle KH-237679, baffle KH-237677,

$

$

Not available

Washer, 3/8 Hv Lock

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet KH-237277

Stud, Cylinder Head

$

$

Not available

Cub Cadet IH-20153-R1

Screw, 3/8-16 X 1-1/2 Znd Hex Hd Mach

$

$

Currently unavailable

Cub Cadet KH-X-400-71

Spacer, Pipe
(Superseded to KH-25-112-14-S)

$

$

Not available

67

Cub Cadet KH-270889

Washer, Cylinder Head

$

$

Not available

68

Cub Cadet KH-47-041-15

Gasket, Cylinder Head

$

$

Not available

69

Cub Cadet KH-47-010-09

Camshaft Assy

Note: (Replaces KH-47-010-09)

$

$

Not available

70

Cub Cadet IH-393610-R2

Spring, Camshaft Actuating
(Superseded to KH-47-089-01)

$

$

Not available

71

Cub Cadet KH-236943

Bracket, Fuel Tank

$

$

Not available

72

Cub Cadet KH-47-380-09

Pin, Camshaft

$

$

Not available

73

Cub Cadet KH-275066

Shim, Camshaft, .005

$

$

Not available

Cub Cadet KH-275067

Shim, Camshaft, .010

$

$

Not available

74

Cub Cadet KH-D-235327

Tappet Assy, Valve

$

$

Not available

75

Cub Cadet KH-235582

Valve, Intake

$

$

Not available

76

Cub Cadet KH-235838

Valve, Exhaust

$

$

Not available

77

Cub Cadet KH-235168

Spring, Valve

$

$

Not available

78

Cub Cadet KH-52-413-01

Rotator, Valve

$

$

Not available

79

Cub Cadet IH-46209D

Key, Valve Spring Retainer

Note: (Order in sets of two)

$

$

Currently unavailable

80

Cub Cadet KH-235011

Retainer, Valve Spring Upper
(Superseded to KH-235011-S)

$6.49

$

In Stock, only 2 left!

0

81

Cub Cadet KH-235935

Tank Assy, Fuel w/Filler Cap

$

$

Not available

82

Cub Cadet KH-236655

Cap, Fuel Filler

$

$

Not available

83

Cub Cadet KH-A-236942

Strap, Fuel Tank

$

$

Not available

Cub Cadet 736-0329

Washer, 1/4 Znd Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

~NLA

Washer, 1/4 X 1/2 X .036 C-Z

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.99

$

In Stock, Qty 19

0

84

~NLA

Nipple, 1/8 X 3/4 C-Z Pipe

$

$

Not available

85

Cub Cadet KH-A-210101

Filter Assy, Fuel
(Superseded to KH-25-755-22)

$66.99

$

Usually ships in 2-5 days

0

86

Cub Cadet KH-210478

Body, Fuel Filter

$

$

Not available

87

Cub Cadet KH-A-210480

Valve Assy, Needle

$

$

Not available

88

Cub Cadet KH-210479

Screen, Filter

$

$

Not available

89

Cub Cadet KH-210467

Bowl, Fuel Filter Glass

$

$

Not available

90

Cub Cadet KH-210468

Gasket, Fuel Filter Bowl

$6.99

$

In Stock, Qty 5

0

91

Cub Cadet KH-A-210477

Bail Assy, Fuel Filter Bowl

$

$

Not available

92

Cub Cadet KH-47-755-01

Kit, Spacer Dyn Bal
(Superseded to KH-47-755-01-S)

$70.99

$

Usually ships in 2-5 days

0

93

Cub Cadet KH-231509

Connector, Fuel Filter

$

$

Not available

94

Cub Cadet IH-144526-H1

Sleeve, Fuel Line
(Superseded to KH-220547-S)

Note: Serial No. 315299 & below

$6.99

$

In Stock, only 1 left!

0

95

Cub Cadet KH-220786

Nut, Fuel Line

$

$

Not available

96

~NLA

Line, Fuel Filter to Carburetor Fuel

$

$

Not available

97

Cub Cadet KH-A-237653

Lever, Governor

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Screw, 1/4-20 X 1-1/4 Znd Hex Hd Cap

$

$

Not available

Cub Cadet 736-0463

Washer, 9/32 X .062 C-Z

$4.49

$

In Stock, only 2 left!

0

98

Cub Cadet KH-235496

Spring, Governor

$

$

Not available

99

Cub Cadet KH-235086

Bracket, Speed Control

$

$

Not available

100

Cub Cadet KH-48-755-10

Clamp, Control Bracket

$22.99

$

Usually ships in 2-5 days

0

101

Cub Cadet KH-235084

Bracket, Adjusting Screw

$

$

Not available

Screw, 1/4-20 X 1 C-Z

$

$

Not available

Washer, 1/4 Med Lock

$

$

Not available

Cub Cadet KH-X-25-63

Washer, 17/64 X 1/2 X .062 C-Z

$

$

Not available

102

Cub Cadet KH-235085

Spacer, Adjusting Screw
(Superseded to KH-235085-S)

$

$

Not available

103

Cub Cadet KH-275690

Washer, Adjusting Screw Spacer

$

$

Not available

104

Cub Cadet KH-A-235743-S

Gear Assy, Governor

$

$

Not available

Cub Cadet KH-237022

Space, Shim

$

$

Not available

105

Cub Cadet KH-231355

Pin, Governor Stop
(Superseded to KH-231355-S)

$10.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-12

Washer, 17/64 X 1/2 X .062, Copper

$

$

Not available

106

Cub Cadet KH-A-235256-S

Shaft Assy, Governor Cross

$46.99

$

Usually ships in 2-5 days

0

107

Cub Cadet KH-235476

Bushing, Cross Shaft

$

$

Not available

108

Cub Cadet KH-235277

Rod, Ball Joint Throttle

$

$

Not available

109

Cub Cadet BS-93307

Retainer, Throttle Rod

$5.99

$

In Stock, only 3 left!

0

110

Cub Cadet IH-19726-R1

Joint, 10-32 X 1/4 Ball
(Superseded to IH-19726-R2)

$

$

Not available

Cub Cadet 712-0349

Nut, 10-32 Znd Hex Mach Screw

$4.99

$

In Stock, Qty 5

0

Washer, No. 10 Med Lock

$

$

Not available

111

Cub Cadet KH-45-043-03

Gear Balance

$

$

Not available

112

Cub Cadet KH-231281

Coil, Ignition
(Superseded to KH-41-519-21-S)

$149.99

$

In Stock, only 1 left!

0

Cub Cadet IH-9409106

Screw w/Spring Lock Washer, 1/4-20 X 5/8 C-Z Slt Hex Hd Mach

$

$

Not available

Cub Cadet 736-0173

Condenser, Ignition Coil

$4.49

$

In Stock, only 4 left!

0

113

Cub Cadet IH-62188-C1

Condenser, Ignition Coil
(Superseded to KH-230722-S)

$31.99

$

In Stock, only 1 left!

0

114

Cub Cadet KH-A-231839

Cable Assy, Condenser to Breaker

$

$

Not available

115

Cub Cadet KH-220292

Clip, Condenser to Breaker Cable

$

$

Currently unavailable

116

Cub Cadet KH-47-150-03

Bracket & Breaker Assy

$

$

Not available

117

Cub Cadet IH-62189-C1

Breaker Point Set
(Superseded to KH-47-150-03)

$

$

Not available

118

Bracket, Point Breaker

Note: (Not serviced separately, order KH-47-150-03)

$

$

Not available

Screw w/Washer, 8-32 X 1/4 Znd Slt Pan Hd Mach

$

$

Not available

119

Cub Cadet KH-47-411-04

Rod, Breaker

$

$

Not available

120

Cub Cadet KH-232535

Cover, Breaker
(Superseded to KH-232535-S)

$

$

Not available

Cub Cadet KH-X-131-1

Screw w/Internal Tooth Lock Washer, 10-24 X 3/8 C-Z Slt Rd Hd Mach

$

$

Not available

121

Cub Cadet KH-52-041-11

Gasket, Breather Cover
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 3 left!

0

122

Cub Cadet IH-H10C

Plug, Spark (Champion)
(Superseded to 759-3333)

$5.49

$

In Stock, only 1 left!

0

123

Cub Cadet KH-238057

Kit, Hi-Tension Spark Plug Cable Lead
(Superseded to KH-238057-S)

$

$

Not available

124

Motor Generator

$

$

Not available

125

Cub Cadet IH-532184-R91

Bearing Assy, Needle
(Superseded to IH-532184-R92)

$44.99

$

Usually ships in 3-6 days

0

126

Cub Cadet KH-235373

Bracket, Motor Generator Mounting

$

$

Not available

Screw, 3/8-16 X 1-1/8 C-Z Hex Hd Cap

$

$

Not available

Washer, 3/8 Med Lock

$

$

Not available

127

Cub Cadet KH-231273

Brace, Motor Generator Adjusting
(Superseded to KH-231273-S)

$71.99

$

Usually ships in 2-5 days

0

Cub Cadet 710-0376

Screw, 5/16-18 X 1 C-Z Hex Hd Cap

$3.99

$

In Stock, only 4 left!

0

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap

$

$

Not available

Washer, 5-16 Med Lock

$

$

Not available

Washer, 3/8 Med Lock

$

$

Not available

Cub Cadet IH-20893-R1

Washer, 11/32 X 1 X 11 Ga C-Z

$

$

Currently unavailable

Washer, 5/16 C-Z Int Tooth Lock

$

$

Not available

128

Cub Cadet KH-231278

Pulley, Motor Generator Drive
(Superseded to KH-231278-S)

$71.99

$

Usually ships in 2-5 days

0

129

Cub Cadet IH-401960-R1

Belt, Motor Generator Drive

$17.99

$

In Stock, only 4 left!

0

130

Cub Cadet IH-393840-R91

Muffler Exhaust

$

$

Not available

Cub Cadet 710-0376

Screw, 5/16-18 X 1 Znd

$3.99

$

In Stock, only 4 left!

0

Cub Cadet 736-0119

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120386

Washer, 5/16 X 3/4 X .062 C-Z

$

$

Currently unavailable

131

Cub Cadet KH-235692

Tube, Exhaust Muffler

$

$

Not available

Cub Cadet KH-X-400-72

Spacer, Exhaust
(Superseded to KH-25-112-15-S)

$7.99

$

Usually ships in 2-5 days

0

132

Cub Cadet KH-237679

Baffle, Heat

$

$

Not available

133

~NLA

Angle, Hanging Strap

$

$

Not available

134

Cub Cadet KH-A-237282

Dipstick

$

$

Currently unavailable

135

Cub Cadet KH-236559

Shaft, Balance Gear Stub

$

$

Not available

Cub Cadet IH-22824-R1

Ring, Retaining

$

$

Currently unavailable

136

Cub Cadet KH-235757

Gasket, Bearing Plate

$

$

Not available

Cub Cadet IH-681797-C1

Clamp, Muffler

$

$

Not available

Bolt, 3/8-16 X 1-1/4 Znd Sq-Nk Crg

$

$

Not available

Cub Cadet 712-0798

Nut, 3/8-16 Znd Hex

$4.49

$

In Stock, only 2 left!

0

Cub Cadet KH-47-004-01

Kit, Engine Gasket
(Superseded to KH-47-755-08)

$149.99

$

Usually ships in 2-5 days

0
