146701-1626-XX - Briggs & Stratton Vertical Engine Cylinder,Sump,Control,Piston Parts Diagram

Vertical Engine

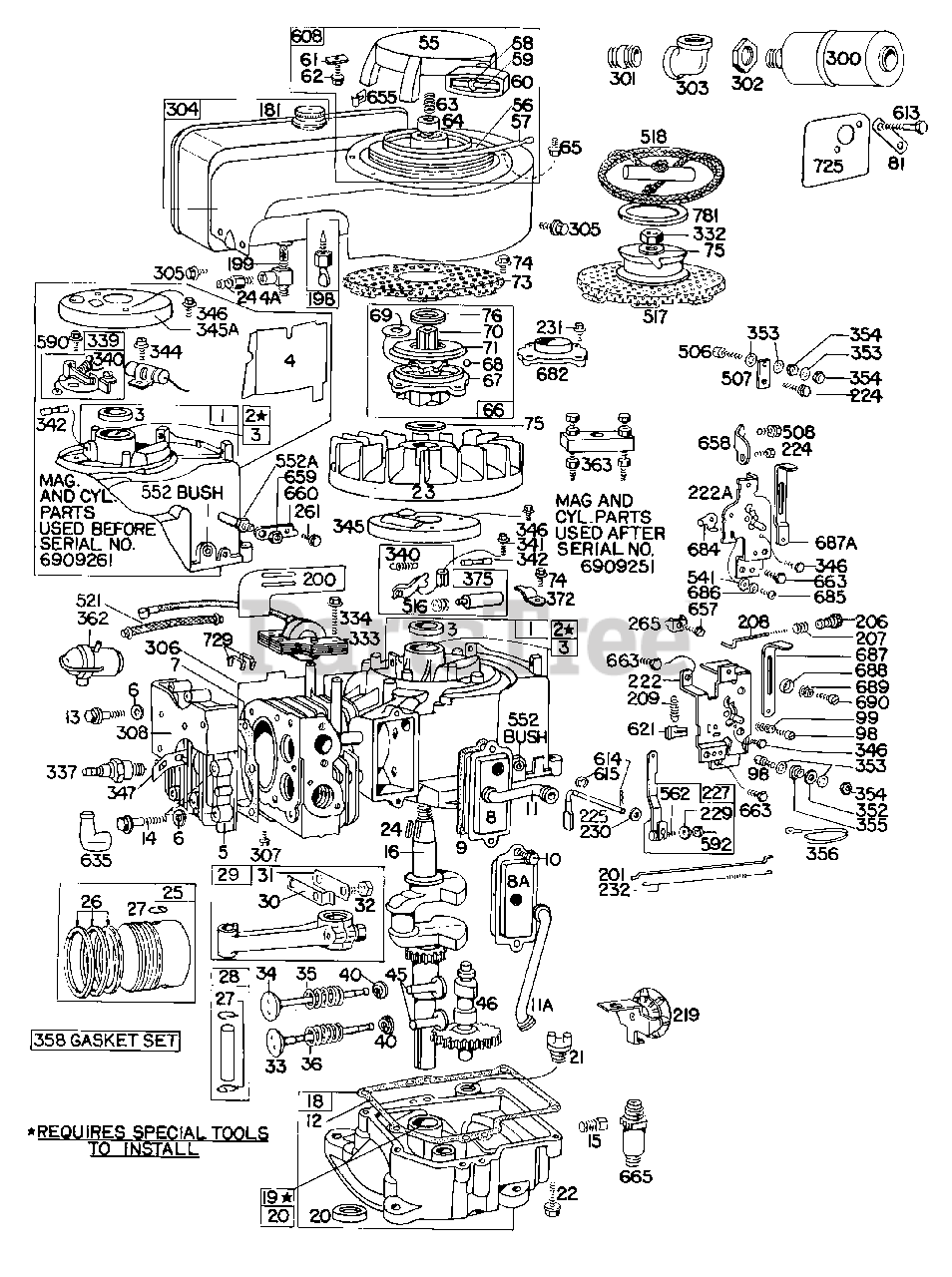

Cylinder,Sump,Control,Piston Parts Diagram

  • Title

1

Briggs & Stratton 299218

Cylinder Assembly

$

$

Not available

2

Briggs & Stratton 295962

Bushing/Seal Kit

Note: Requires special tools for installation.

$28.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 294606

Seal, Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

4

Briggs & Stratton 221001

Plate-Cylinder Baffle

$

$

Not available

5

Briggs & Stratton 210578

Head-Cylinder

$45.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 270340

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 295970

$

$

Not available

8A

Briggs & Stratton 294988

Breather-Assembly

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 299848

Breather Assy.
(Superseded to 495737)

$

$

Not available

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 295970

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93536

Screw-Sem
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11A

Briggs & Stratton 67068

Tube-Breather

Note: (Used with Metal Air Cleaner Pipe)

$12.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 280005

Tube-Breather
(Superseded to 692293)

$10.99

$

In Stock, Qty 6

0

12

Briggs & Stratton 27750

Gasket, Crankcase (1/64" Thick)
(Superseded to 692221)

Note: Included in Gasket Set-Part No. 295970

$8.99

$

In Stock, Qty 9

0

12

Briggs & Stratton 27876

Gasket-Crkcse (.005" Thick)

Note: Included in Gasket Set-Part No. 295970

$

$

Not available

12

Briggs & Stratton 27877

Gasket-Crkcse (.009" Thick)

Note: Included in Gasket Set-Part No. 295970

$10.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 93210

Screw, Cyl. Head (2-9/32" Long)
(Superseded to 93210GS)

$14.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 93211

Screw, Machine Hex (5/16-18 X 2-21/32")
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

14

Briggs & Stratton 93583

Stud, Cylinder Head
(Superseded to 691690)

$

$

Not available

15

Briggs & Stratton 91084

Plug, Pipe (Standar (3/8")
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 260356

Crankshaft
(Superseded to 491364)

$279.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 298616

Sump-Oil
(Superseded to 392548)

$110.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 295963

Bushing/Seal Kit

Note: Requires special tools for installation.

$

$

Not available

20

Briggs & Stratton 298423

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93585

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

23

Briggs & Stratton 298260

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 61760

Key, Flywheel (For Breaker Ignition System)
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 297692

Piston Assy-Std

Note: Kool-Bore Trademark of Briggs & Stratton Corp.

$104.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 297693

Piston Assy. .010" O.S.

Note: Kool-Bore Trademark of Briggs & Stratton Corp.

$52.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 297694

Piston Assembly .020" O.S.

Note: Kool-Bore Trademark of Briggs & Stratton Corp.

$

$

Not available

25

Briggs & Stratton 297695

Piston Assembly .030" O.S.

Note: Kool-Bore Trademark of Briggs & Stratton Corp.

$52.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 297705

Ring Set-Piston .010" O.S.

Note: Consists of: 211241 Ring, Piston, Comp., Top, .010" O.S. 211244 Ring, Piston, Center, .010" O.S. 211247 Ring, Piston, Piston, Oil, .010" O.S. "Kool-Bore" Trademark of Briggs & Stratton Corp.

$53.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 297706

Ring Set-Piston .020" O.S.

Note: Consists of: 211242 Ring, Piston, Comp., Top, .020" O.S. 211245 Ring, Piston, Comp., Center, .020" O.S. 211248 Ring, Piston, Oil, .020" O.S. "Kool-Bore" Trademark of Briggs & Stratton Corp.

$

$

Not available

26

Briggs & Stratton 297707

Ring Set-Piston .030" O.S.

Note: Consists of: 211243 Ring, Piston, Comp., Top, .030" O.S. 211246 Ring, Piston, Comp., Center, .030" O.S. 211249 Ring, Piston, Oil, .030" O.S. "Kool-Bore" Trademark of Briggs & Stratton Corp.

$41.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 297815

Ring Set-Piston Std.

Note: Consists of: 210600 Ring, Piston, Comp., Top, Std. 211037 Ring, Piston, Comp., Center, Std. 210602 Ring, Piston, Oil, Standard "Kool-Bore" Trademark of Briggs & Stratton Corp.

$

$

Not available

26

Briggs & Stratton 298745

For Chrome Piston Ring Set Standard Size

Note: Kool-Bore Trademark of Briggs & Stratton Corp.

$34.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 68546

Lock-Piston Pin
(Superseded to 691073)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295840

Pin-Piston Std
(Superseded to 499302)

$15.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295841

Pin-Piston 005

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 295839

Rod Assy.-Connecting

Note: For Connecting Rod with .020" undersize Crankpin Bore-order No. 298788

$31.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 221725

Dipper-Connecting Rod

$0.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 220811

Lock-Connecting Rod Screw

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92659

Screw-Connecting Rod And Bracket Mtg.
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 299885

Valve-Exhaust (Grooved Stem-Includes Retainer No. 221596)

Note: Used After Code Date 6711030

$50.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 261055

Valve-Intake
(Superseded to 261055S)

Note: Used After Code Date 6909251

$32.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 299884

Valve-Intake (Grooved Stem-Includes Retainer No. 221596)

Note: Used Before Code Date 6909261

$31.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 65906

Spring, Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 65906

Spring, Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 221596

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 690656)

Note: Used After Code Date 6711030

$

$

Not available

40

Briggs & Stratton 230476

Pin-Valve Spring Retainer

Note: Used Before Code Date 6711060

$3.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 230477

Retainer-Valve Spring

$10.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 230570

Pin-Valve Spring Retainer

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 292260

Rotocoil Assy (Exhaust Valve)
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

45

Briggs & Stratton 260933

Tappet-Valve
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 210728

Gear-Cam
(Superseded to 691167)

$36.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 295272

Housing, Rewind (Casting) (Used With Metal Pulley)
(Superseded to 693900)

$131.99

$

In Stock, Qty 11

0

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

Note: If longer rope is required, order rope No. 66894 and cut to length.

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind Starter
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66564

Rope-Starter (63" Long)

Note: if longer rope is required, order No. 66574 and cut to length.

$8.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 66884

Rope, Starter (63" Cut To Required Length)
(Superseded to 692188)

Note: If longer rope is required, order No. 66894 and cut to length.

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter Rope.
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

61

Briggs & Stratton 68848

Bumper-Starter Pulley
(Superseded to 68848S)

$1.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93254

Screw-Pulley Bumper Mounting Sem

$3.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 260414

Spring-Ratchet
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter-Spring
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 230796

Nut-Hex

$7.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 92290

Lockwasher, Zinc Pl
(Superseded to 690286)

$3.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 93163

Screw, Sem Hex Head
(Superseded to 691003)

Note: Used Before Code Date 6905011

$3.49

$

In Stock, Qty 9

0

65

Briggs & Stratton 93420

Screw-Hex (3/4" Long)

$3.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 93572

Screw, Hex Head Tap (10-32 X 3/8)
(Superseded to 690664)

Note: Used After Code Date 6904301

$5.49

$

In Stock, only 1 left!

0

66

Briggs & Stratton 295684

Clutch Assy.-Rewind Starter
(Superseded to 399671)

Note: Used Before Code Date 6601181

$34.99

$

In Stock, Qty 20+

0

66

Briggs & Stratton 298798

Clutch Assy.-Rewind Starter
(Superseded to 399671)

Note: Used After Code Date 6601171

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 210400

Housing-Starter Clutch

Note: Used Before Code Date 6601181

$

$

Not available

67

Briggs & Stratton 211383

Housing-Starter Clutch
(Superseded to 394897)

Note: Used After Code Date 6601171

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 296916

Ratchet-Rewind Starter Clutch

Note: Used Before Code Date 6601181

$

$

Not available

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: Used After Code Date 6601171

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221301

Washer

Note: Used Before Code Date 6601181

$1.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 221653

Washer, Steel (Non-Coated)
(Superseded to 691359)

Note: Used After Code Date 6601171

$9.99

$

In Stock, Qty 14

0

73

Briggs & Stratton 220823

Screen-Rewind Starter

Note: Used Before Code Date 6601181

$6.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 221796

Switch-Stop
(Superseded to 691754)

Note: Used After Code Date 6601171

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93014

Screw, Sem
(Superseded to 93014GS)

$14.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

75

Briggs & Stratton 220865

Washer, Belleville (Used With Heavy Flywheel)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

81

Briggs & Stratton 222265

Screw-Lock

$

$

Not available

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

181

Briggs & Stratton 293270

Cap-Fuel Tank
(Superseded to 493982S)

$

$

Not available

198

Briggs & Stratton 293934

Valve, Shutoff Assy
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 295896

Outlet-Tank (Includes Strainer)

$15.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 221760

Guide-Air
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260710

Link-Governor

Note: except as listed below

$10.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260971

Link-Governor

$8.99

$

Usually ships in 2-12 days

0

206

Briggs & Stratton 230149

Nut-Gov Adjusting (#5-44 Thread)

$35.99

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Spring-Governor Control Rod
(Superseded to 692522)

$

$

Not available

208

Briggs & Stratton 230853

Rod-Governor Control
(Superseded to 230841)

$29.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260723

Spring-Governor

Note: except as listed under note

$4.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 261129

Spring, Governor
(Superseded to 692529)

$8.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 298614

Oil Slinger, Gov. Gear & Brkt Assy

$18.99

$

Usually ships in 2-12 days

0

222A

Briggs & Stratton 298997

Plate-Governor Control

Note: except those listed under part No. 298998

$15.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 390661

Plate, Control Assy
(Superseded to 396349)

$

$

Not available

225

Briggs & Stratton 231071

Shaft-Gov Gear (3/16" Dia.)

$7.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 298303

Governor Control Le (For 3/16" Dia. Crank)

$7.49

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 220680

Washer, Steel
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 221559

Washer (3/16" Inside Dia.)

$3.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 93064

Screw-Sem
(Superseded to 690292)

$3.99

$

In Stock, only 3 left!

0

232

Briggs & Stratton 260584

Spring-Link
(Superseded to 692207)

$6.99

$

In Stock, only 3 left!

0

244A

Briggs & Stratton 230318

Connector, Fuel
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

261

Briggs & Stratton 93105

Screw, Sem Hex Head
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

265

Briggs & Stratton 221535

Clamp, Casing (Stamped Steel)
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

300

Briggs & Stratton 294599

Muffler-Exhaust
(Superseded to 294599S)

$16.99

$

In Stock, only 1 left!

0

301

Briggs & Stratton 91245

Nipple-Exhaust

$7.99

$

In Stock, only 1 left!

0

302

Briggs & Stratton 91242

Locknut-Muffler And Elbow
(Superseded to 690453)

$4.49

$

In Stock, Qty 9

0

303

Briggs & Stratton 91219

Elbow, Exhaust (45 Degree Street)
(Superseded to 94089)

$13.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 299853

Housing-Blower
(Superseded to 491596)

$

$

Not available

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 13

0

306

Briggs & Stratton 221005

Shield-Cylinder

$

$

Not available

307

Briggs & Stratton 93163

Screw, Sem Hex Head
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

332

Briggs & Stratton 92284

Nut, Jam (Flywheel)
(Superseded to 690662)

$5.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 298968

Armature-Mag (For Breaker Ignition)

$

$

Not available

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 29693

Spark Plug
(Superseded to 796112S)

Note: Above Spark Plugs use Ignition Cable Terminal No. 221798

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

339

Briggs & Stratton 29667

Breaker Assy.-Ignition

$

$

Not available

340

Briggs & Stratton 26018

Spring-Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger-Breather Point
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

344

Briggs & Stratton 93370

Screw-Condenser Mtg. Sem

$5.49

$

Usually ships in 2-12 days

0

345A

Briggs & Stratton 221046

Cover-Breaker Point

$

$

Not available

345

Briggs & Stratton 222117

Cover-Breaker Point

$5.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93014

Screw, Sem
(Superseded to 93014GS)

$14.99

$

Usually ships in 2-12 days

0

347

Briggs & Stratton 220884

Switch-Stop

$11.99

$

In Stock, Qty 6

0

347

Briggs & Stratton 221808

Switch-Stop

$4.99

$

Usually ships in 2-12 days

0

352

Briggs & Stratton 66068

Washer-Fiber

$4.99

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

355

Briggs & Stratton 66554

Washer-Insulating

$5.49

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 299500

Wire, Ground Assy
(Superseded to 398808)

Note: (Used with Armature Refs. 333A and 333B)

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 295970

Gasket Set

$

$

Not available

362

Briggs & Stratton 291630

Shield, Spark Plug (With Stop Switch)
(Superseded to 793351)

$14.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19165

Puller-Flywheel (Optional Accessory)

$25.99

$

Usually ships in 2-12 days

0

372

Briggs & Stratton 220477

Clamp-Condensor

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Breaker Points And Condensor Set

$

$

Not available

375

Briggs & Stratton 299061

Ignition Kit
(Superseded to 294628)

Note: Includes: 294628 Point Set 65704 Plunger 61760 Key-Flywheel

$

$

Not available

508

Briggs & Stratton 93294

Screw, Sem (5/8" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 13

0

516

Briggs & Stratton 260374

Condenser Spring

$7.99

$

Usually ships in 2-12 days

0

517

Briggs & Stratton 295423

Screen/Pulley Assy
(Superseded to 496084)

$173.99

$

Usually ships in 2-12 days

0

518

Briggs & Stratton 69932

Rope/Grip Assy (55")
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

521

Briggs & Stratton 298529

Shielding-Ignition Cable

$33.99

$

Usually ships in 2-12 days

0

541

Briggs & Stratton 22398

Washer, Steel Zinc
(Superseded to 5022398)

$3.49

$

Usually ships in 2-12 days

0

552A

Briggs & Stratton 230761

Bushing-Shaft (With Threaded End)

$

$

Not available

552

Briggs & Stratton 230927

Bushing-Gov Crank (3/16" I.d.) (No Threads)

$7.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

590

Briggs & Stratton 93226

Screw-Slotted Hex.
(Superseded to 690295)

$6.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 90356

Nut, Hex Mach (10-24)
(Superseded to 690276)

$3.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 295001

Starter-Rewind (Standard Length Rope)
(Superseded to 693900)

Note: For Starter Assembly with longer than standard rope order No. 298107

$131.99

$

In Stock, Qty 11

0

613

Briggs & Stratton 93549

Screw-Hex (1/4-20 Hex Head)

$6.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

621

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

$

$

Not available

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

655

Briggs & Stratton 221014

Anchor-Rewind Spg

$5.99

$

Usually ships in 2-12 days

0

657

Briggs & Stratton 93496

Screw, Sem Hex Head (10-32 X 5/8")
(Superseded to 690804)

$

$

Not available

658

Briggs & Stratton 221576

Strap-Control Plate

$3.99

$

Usually ships in 2-12 days

0

659

Briggs & Stratton 93390

Nut-Governor Shaft Bushing

$

$

Not available

660

Briggs & Stratton 221577

Bracket-Control Plate

$

$

Not available

663

Briggs & Stratton 93572

Screw, Hex Head Tap (10-32 X 3/8)
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

665

Briggs & Stratton 296768

Oil Minder
(Superseded to 592239)

$35.99

$

Usually ships in 2-12 days

0

682

Briggs & Stratton 211516

Shield-Starter Clutch

$4.49

$

Usually ships in 2-12 days

0

682

Briggs & Stratton 211521

Fan-Starter Clutch

Note: Uses: 93381 Screw (4)

$

$

Not available

684

Briggs & Stratton 221781

Stop-Control Lever

$

$

Not available

685

Briggs & Stratton 93392

Screw-Mach Rd Hd 5-40 X 1/2"
(Superseded to 93524)

$3.99

$

Usually ships in 2-12 days

0

686

Briggs & Stratton 91622

Washer-Lock

$

$

Not available

687A

Briggs & Stratton 298957

Slide-Friction Control

$19.99

$

Usually ships in 2-12 days

0

687

Briggs & Stratton 390690

Slide-Frictiong Control
(Superseded to 691949)

$

$

Not available

688

Briggs & Stratton 221766

Spring-Friction
(Superseded to 690395)

$8.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 260847

Spring-Friction
(Superseded to 690529)

$9.99

$

Usually ships in 2-12 days

0

690

Briggs & Stratton 92484

Screw-Slotted 10-32 X 1/2"

$3.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 221885

Shield-Heat

$12.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 221907

Clip-Wire

$3.49

$

Usually ships in 2-12 days

0

781

Briggs & Stratton 280068

Cap-Starter Pully

$1.99

$

Usually ships in 2-12 days

0
