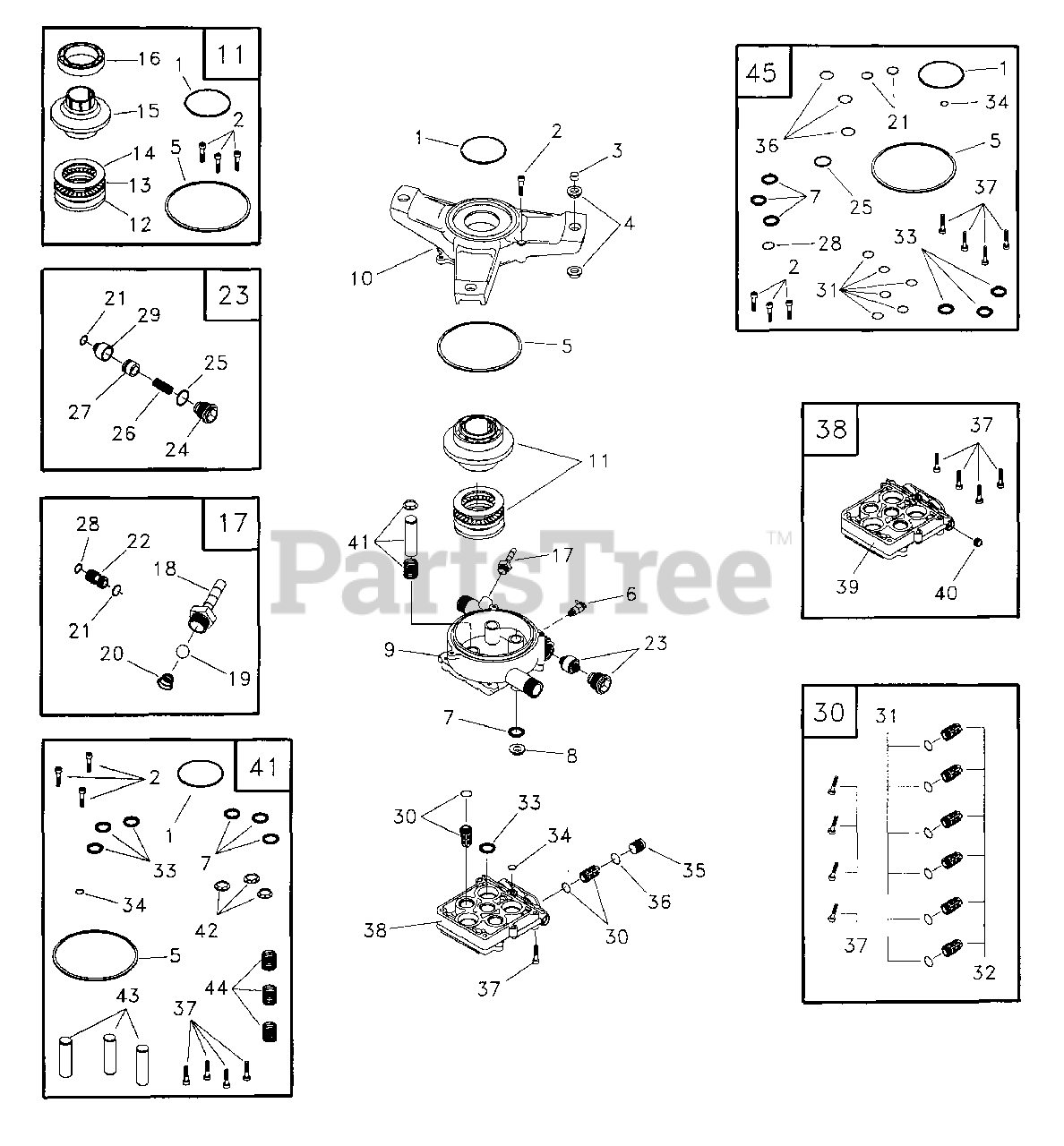

1467-0 - Generac 1,700 PSI Pressure Washer Pump Parts Diagram

1,700 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton 98300

SEAL, Engine Donut
(Superseded to 98300GS)

$11.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton 97962

SHCS, M6 - 1 x 25
(Superseded to 97962GS)

$3.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 96795

SLEEVE, Grommet Spacer
(Superseded to 96795GS)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 21429

BUSHING, Rubber Mount
(Superseded to 21429GS)

$5.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 97835

O-RING, Housing Seal
(Superseded to 97835GS)

$3.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 21783

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 93680

SEAL, Oil Piston 15 TC4
(Superseded to 93680GS)

$7.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 97831

SPACER, Pilot
(Superseded to 97831GS)

$5.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B2702

HOUSING, Piston
(Superseded to B2702GS)

$

$

Not available

10

Briggs & Stratton 98227

ADAPTER, Engine
(Superseded to 98227GS)

$21.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B2310

KIT, AXIAL CAM SERV
(Superseded to B2310GS)

$64.99

$

Usually ships in 2-12 days

0

1

SEAL, Engine Donut

$

$

Not available

2

SHCS, M6 - 1 x 25

$

$

Not available

5

O-RING, Housing Seal

$

$

Not available

12

WASHER, Brg. 36 x 65 x 6Thk

$

$

Not available

13

ASSY, Brg. Cage 45 x 65

$

$

Not available

14

WASHER, Brg. 45 x 65 x 1

$

$

Not available

15

CAM, Axial 5.6 VS

$

$

Not available

16

BALL BEARING, 35 x 72 x 17

$

$

Not available

17

Briggs & Stratton 185287

KIT, CHEM INJECT
(Superseded to 185287GS)

$

$

Not available

18

FITTING, Chem Inject

$

$

Not available

19

BALL, Chem Inject

$

$

Not available

20

SPRING, Chem Inject

$

$

Not available

21

O-RING, Venturi & Seat, Black

$

$

Not available

22

VENTURI, Chem Inject

$

$

Not available

28

O-RING, Venturi, Yellow

$

$

Not available

23

Briggs & Stratton 185711

KIT, UNLOADER

$

$

Currently unavailable

21

O-RING, Venturi & Seat, Black

$

$

Not available

24

CAP, Unloader

$

$

Not available

25

O-RING, Unloader Cap

$

$

Not available

26

SPRING, 2000 Unloader

$

$

Not available

27

PISTON, Unloader

$

$

Not available

29

SEAT, 2000 Unloader

$

$

Not available

30

Briggs & Stratton B3513

KIT, CHECK VALVES
(Superseded to B3513GS)

$

$

Not available

31

O-RING, Check Valve

$

$

Not available

32

ASSY, Check Valve

$

$

Not available

37

SHCS, M6-1.0 x 35

$

$

Not available

33

Briggs & Stratton B3286

SEAL, Double-Lip
(Superseded to B3286GS)

$12.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 97837

O-RING, Hi-Pressure Transfer
(Superseded to 97837GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 97841

CAP, Outlet Check Valve
(Superseded to 97841GS)

$

$

Not available

36

Briggs & Stratton 97840

O-RING, Outlet CV Cap
(Superseded to 97840GS)

$5.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 40946

SHCS, M6-I.0 x 35

$

$

Not available

38

Briggs & Stratton B4186

KIT, HEAD CASTING SFG
(Superseded to B4186GS)

$

$

Not available

37

SHCS, M6-1.0 x 35

$

$

Not available

39

HEAD, Pump

$

$

Not available

40

PLUG, 1/8-28 W/VIBR

$

$

Not available

41

Briggs & Stratton B2312

KIT, PISTON & SPRING
(Superseded to B2312GS)

$112.99

$

Usually ships in 2-12 days

0

1

SEAL, Engine Donut

$

$

Not available

2

SHCS, M6 - 1 x 25

$

$

Not available

7

SEAL, Oil Piston 15 TC4

$

$

Not available

5

O-RING, Housing Seal

$

$

Not available

33

SEAL, Double-Lip

$

$

Not available

34

O-RING, High Pressure Transfer

$

$

Not available

37

SHCS, M6-1.0 x 35

$

$

Not available

42

RETAINER, Piston Spring

$

$

Not available

43

PISTON, Dia. 15 x 65

$

$

Not available

44

SPRING, Piston Return

$

$

Not available

45

Briggs & Stratton B1933

KIT, O-RING/SEAL SERV

$

$

Currently unavailable

1

SEAL, Engine Donut

$

$

Not available

2

SHCS, M6 - 1 x 25

$

$

Not available

5

O-RING, Housing Seal

$

$

Not available

7

SEAL, Oil Piston 15 TC4

$

$

Not available

21

O-RING, Venturi & Seat, Black

$

$

Not available

25

O-RING, Unloader Cap

$

$

Not available

28

O-RING, Venturi, Yellow

$

$

Not available

31

O-RING, Check Valve

$

$

Not available

33

SEAL, Double-Lip

$

$

Not available

34

O-RING, High Pressure Transfer

$

$

Not available

36

O-RING, Outlet CV Cap

$

$

Not available

37

SHCS, M6-1.0 x 35

$

$

Not available
