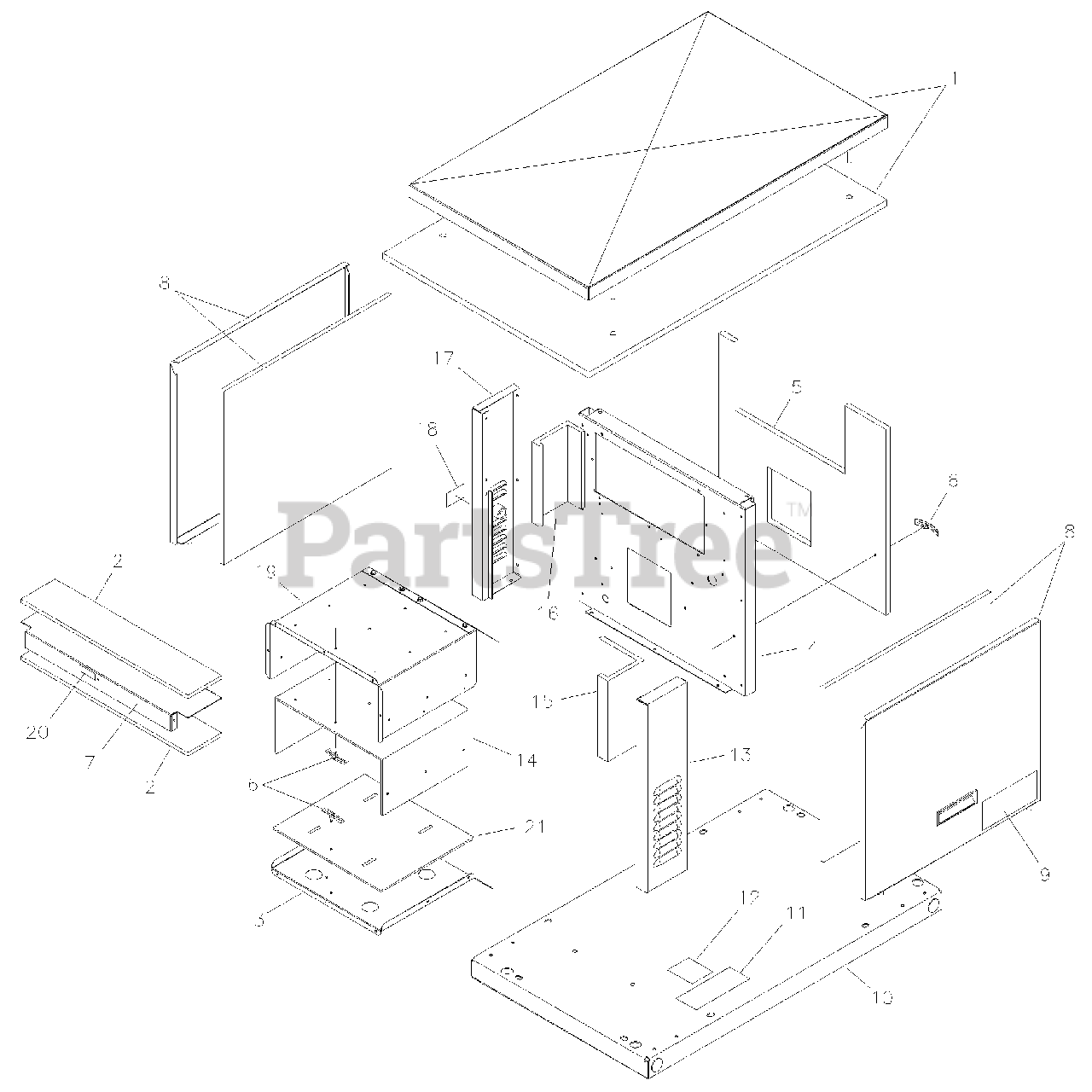

1461-1 - Generac 10kW Home Standby Generator Insulation Set Parts Diagram

10kW Home Standby Generator

Insulation Set Parts Diagram

  • Title

1

Briggs & Stratton H187234

ROOF, with Insulation

$

$

Currently unavailable

2

Briggs & Stratton 186188

INSULATION, Baffle Alt. Side
(Superseded to 186188GS)

$55.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton H186030

BASE, Muffler Box
(Superseded to H186030GS)

$131.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton H185966

BULKHEAD, Alternator Side
(Superseded to H185966GS)

$

$

Not available

5

Briggs & Stratton 186186

INSULATION, Bulk Head Alt. End

$

$

Currently unavailable

6

Briggs & Stratton B4772

CLIPS, Dart
(Superseded to B4772GS)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton H185968

BAFFLE, Horizontal, Alt. Side
(Superseded to H185968GS)

$178.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton H187232

DOOR, with Insulation

$

$

Currently unavailable

9

Briggs & Stratton 185553

DECAL, Unit Beacon
(Superseded to 185553GS)

$

$

Not available

10

Briggs & Stratton H185972

BASE, Mounting
(Superseded to H185972GS)

$566.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 186641

DECAL, Operation Instructions

$

$

Currently unavailable

12

Briggs & Stratton 186646

DECAL, Warning Engine Can Start

$

$

Currently unavailable

13

Briggs & Stratton H185962

CORNER, Alt. Air Inlet Right
(Superseded to 191408GS)

$224.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 186351

INSULATION, Muffler Box
(Superseded to 186351GS)

$

$

Not available

15

Briggs & Stratton 186189

INSULATION, Corner, Right Side
(Superseded to 186189GS)

$

$

Not available

16

Briggs & Stratton 186190

INSULATION, Corner, Left Side
(Superseded to 186190GS)

$

$

Not available

17

Briggs & Stratton H185961

CORNER, Alt. Air Inlet, Left
(Superseded to 191409GS)

$201.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 186643

DECAL, Fuel Inlet

$

$

Currently unavailable

19

Briggs & Stratton H186038

BOX, Muffler
(Superseded to H186038GS)

$224.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 77816

DECAL, Hot Muffler
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 186352

INSULATION, Muffler Base
(Superseded to 186352GS)

$

$

Not available
