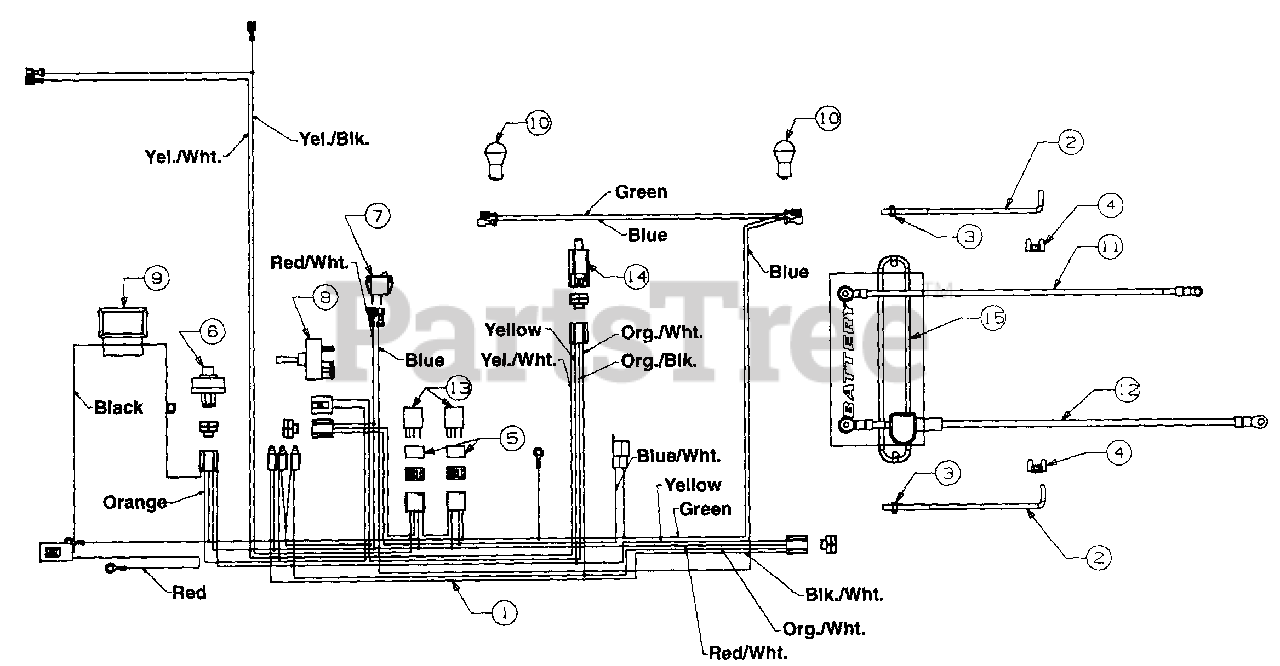

145Y834P401 - Yard-Man Garden Tractor (1995) Electrical/Switches Parts Diagram

Garden Tractor

Electrical/Switches Parts Diagram

  • Title

1

MTD 629-0313

Wire Harness

Note: New Part

$

$

Not available

2

MTD 711-0222A

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

3

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

4

MTD 712-3087

Wing Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

5

MTD 721-0342

Gasket
(Superseded to 921-0342)

$7.99

$

In Stock, only 3 left!

0

6

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

7

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

8

MTD 725-0893

Switch (PTO)
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

9

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

10

MTD 725-0963

Bulb (Headlight)
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

11

MTD 725-0979

Wire 17" Lg.

$

$

Not available

12

MTD 725-1085

Wire w/Boot 20" Lg.
(Superseded to 629-0700)

$

$

Not available

13

MTD 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 8

0

14

MTD 725-1657A

Safety Switch (Clutch)
(Superseded to 925-1657A)

$24.99

$

In Stock, Qty 5

0

15

MTD 731-1683

Battery Cover

Note: New Part

$

$

Not available
