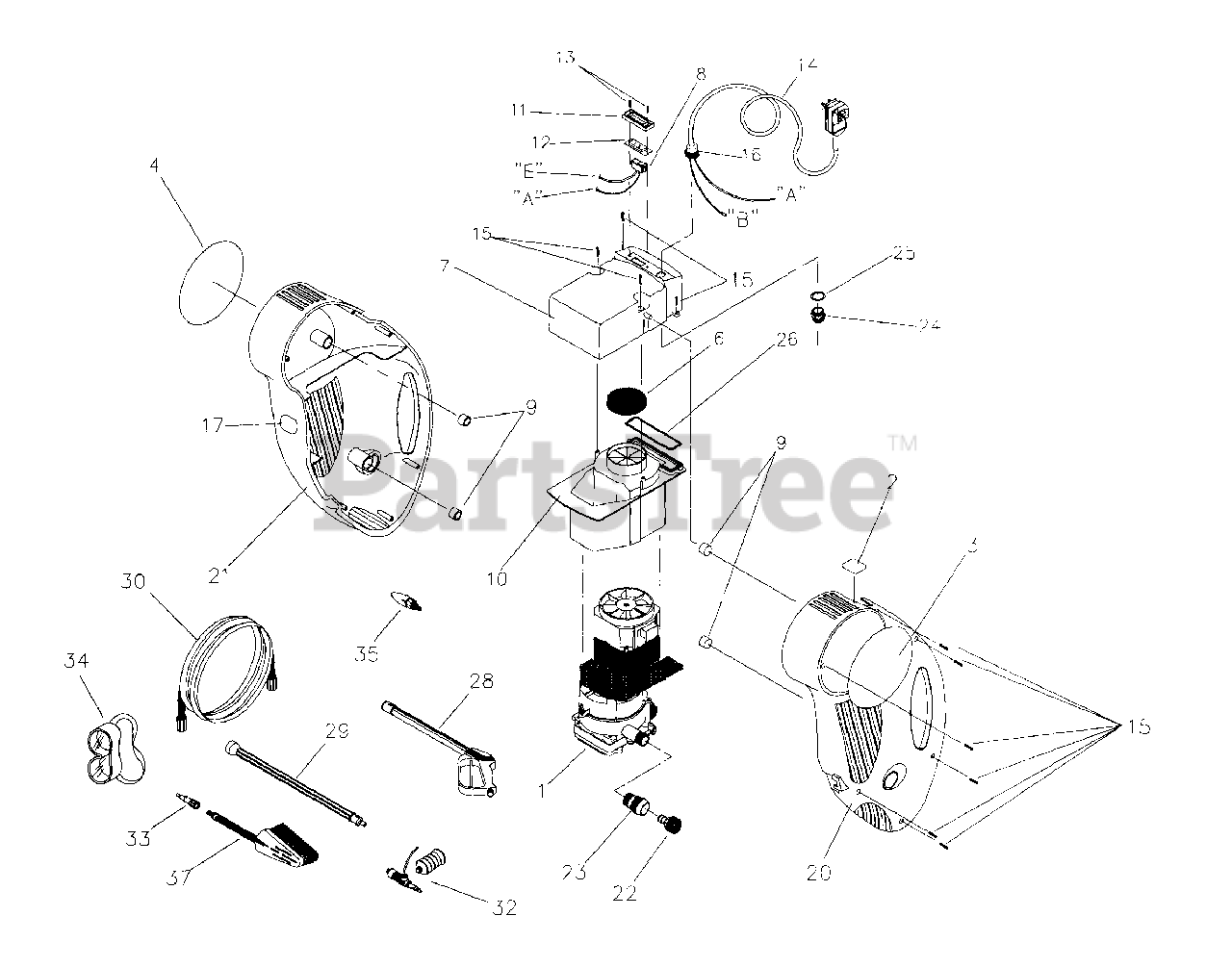

1455-0 - Generac 1,400 PSI Pressure Washer, Electric Main Unit Parts Diagram

1,400 PSI Pressure Washer, Electric

Main Unit Parts Diagram

  • Title

1

~N/A

ASSY., Motor and Pump

Note: (See "Cart" illustration and parts list)

$

$

Not available

2

Briggs & Stratton B1415

DECAL, Circuit
(Superseded to B1415GS)

$5.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 185917

DECAL, Unit
(Superseded to 185917GS)

$11.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 185946

DECAL, Instructions
(Superseded to 185946GS)

$12.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 98806

FOAM, Air In, Fan-end
(Superseded to 98806GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 97893

HOUSING, Switch and Cord
(Superseded to B1650GS)

$91.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 20984

SWITCH, Rocker 16A

$

$

Not available

9

Briggs & Stratton 98801

MOUNT, Rubber
(Superseded to 98801GS)

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B1566

COVER, Motor

$

$

Not available

11

Briggs & Stratton 20985

ENCLOSURE, Rocker Switch Boot
(Superseded to 5020985)

$

$

Not available

12

Briggs & Stratton 20986

BOOT, Rocker Switch
(Superseded to 5020986)

$32.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84543B

SCREW, 3.5mm x 12mm Plastite
(Superseded to 84543BGS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B5597

CORD, Power w/ GFCI
(Superseded to B5597GS)

$125.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84358

SCREW, #6-19 x .75 mm Plastite
(Superseded to 84358GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 99349

STRAIN RELIEF, Cord
(Superseded to 99349GS)

$10.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B1053

DECAL, ETL
(Superseded to B1053GS)

$1.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 21334

HOUSING, Inlet
(Superseded to 21334GS)

$41.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 21335

HOUSING, Outlet
(Superseded to 5021335)

$8.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 21265

QUICK DISCONNECT, Male
(Superseded to 21265GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 96016

QUICK DISCONNECT, Female
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton A1484

NUT, Strain Relief Lock
(Superseded to A1484GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton A1485

SEAL RING, Strain Relief

$

$

Not available

26

Briggs & Stratton 97835

"O" RING, Hsg Seal, dia. 82.2 x 2.62mm
(Superseded to 97835GS)

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 21336

GUN, Spray

$

$

Currently unavailable

29

Briggs & Stratton 21337

WAND, Extension
(Superseded to 21337GS)

$32.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton B3337

HOSE, High Pressure

$

$

Currently unavailable

32

Briggs & Stratton B1935

FOAMER
(Superseded to B1935GS)

$60.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton B1051

ADAPTER, Accessories
(Superseded to B1051GS)

$11.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 87815

GOGGLES
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton B1300D

NOZZLE, Turbo
(Superseded to B1300DGS)

$24.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 88185

BRUSH, Utility
(Superseded to 88185GS)

$77.99

$

Usually ships in 2-12 days

0
