14527 SB LS (961930049) - Husqvarna 27" Snow Blower (2009-07) Wheels Parts Diagram

27" Snow Blower

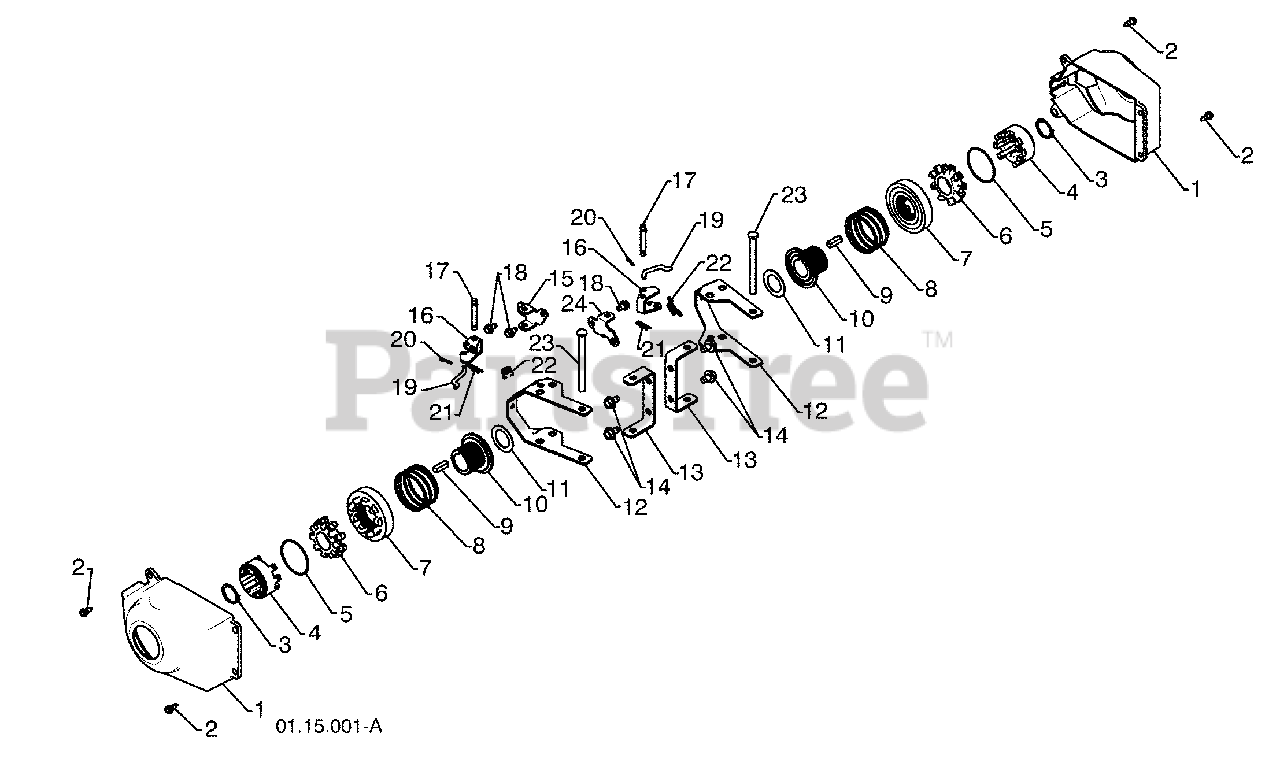

Wheels Parts Diagram

  • Title

$10.99

$

In Stock, only 1 left!

0

2

Husqvarna 532184471

SHOULDER SCREW

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 812000045

RETAINER RING

$7.49

$

In Stock, only 4 left!

0

4

Husqvarna 532192126

WHEEL DRIVER
(Superseded to 581645001)

$31.99

$

In Stock, only 1 left!

0

5

Husqvarna 532182466

RETAINER RING

$7.49

$

In Stock, only 4 left!

0

6

Husqvarna 532187622

WHEEL LOBE

$37.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532194941

CLUTCH SLIDE
(Superseded to 581644901)

$44.99

$

In Stock, only 2 left!

0

$6.49

$

In Stock, Qty 8

0

9

Husqvarna 532189282

SQUARE KEY

$7.49

$

In Stock, only 1 left!

0

10

Husqvarna 532194940

AXLE LOBE
(Superseded to 581645101)

$

$

Not available

11

Husqvarna 532174697

THRUST WASHER
(Superseded to 532007396)

$

$

Not available

12

Husqvarna 532199519

STEERING YOKE
(Superseded to 532445266)

$21.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532184197

STEERING BRACKET

$

$

Not available

14

Husqvarna 817490508

SCREW 5/16-18 X .50
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532199511

PIVOT BRACKET
(Superseded to 532194943)

$

$

Not available

16

Husqvarna 532199518

BELLCRANK
(Superseded to 532194944)

$

$

Not available

17

Husqvarna 532181847

BELLCRANK PIN

$12.99

$

Usually ships in 3-10 days

0

18

Husqvarna 817600406

SCREW 1/4-20 X .375

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532405077

STEERING LINK

$

$

Not available

20

$6.49

$

Usually ships in 3-10 days

0

21

$7.49

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 1 left!

0

23

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532199512

PIVOT BRACKET
(Superseded to 532194939)

$6.49

$

Usually ships in 3-10 days

0
