14527 SB LS (961930049) - Husqvarna 27" Snow Blower (2009-07) Drive Parts Diagram

27" Snow Blower

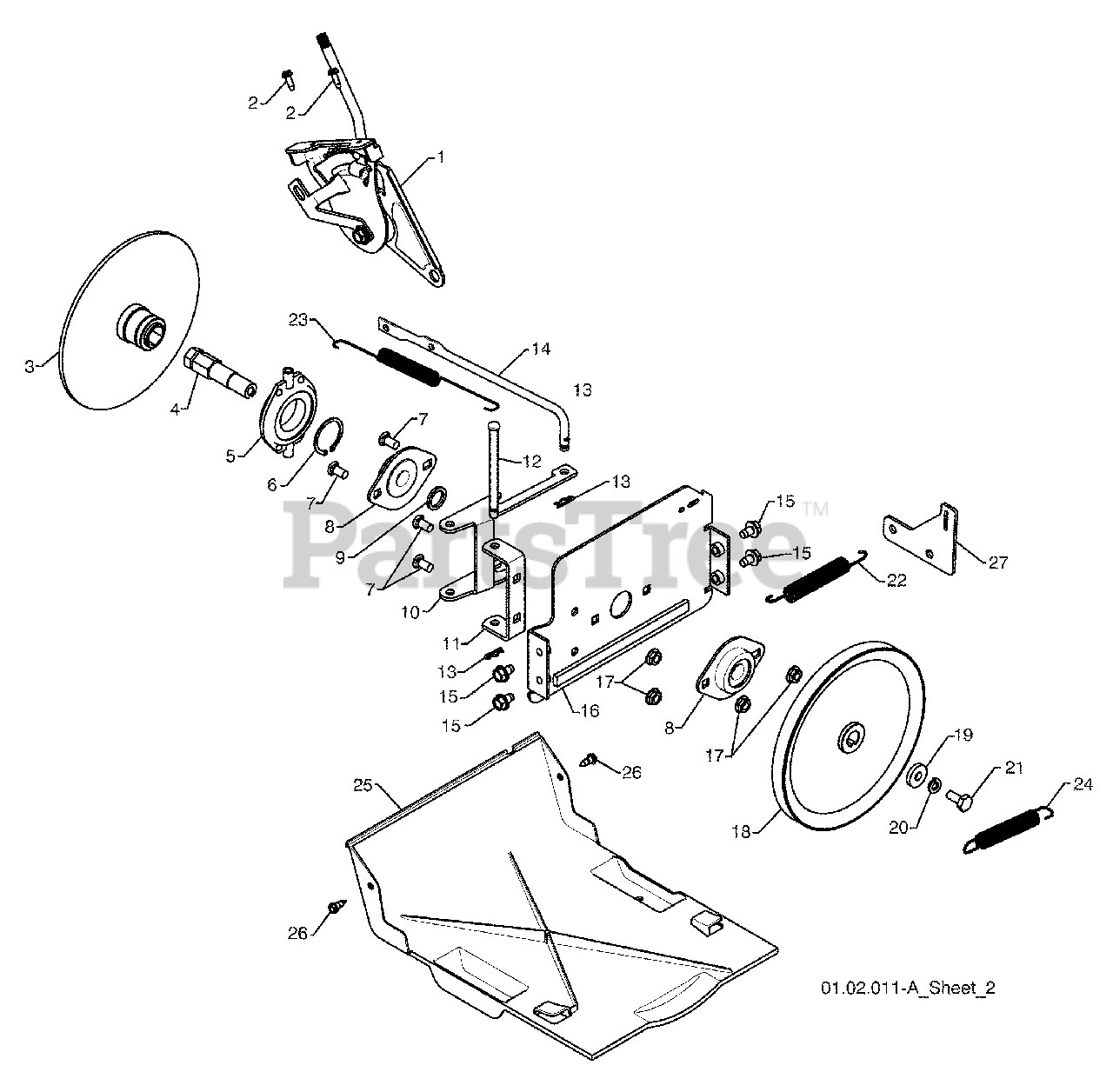

Drive Parts Diagram

  • Title
1

Husqvarna 532198875

SPEED SELECTOR HEAD ASSEMBLY
(Superseded to 532429667)

$

$

Not available

2

Husqvarna 817501010

SCREW 10-24 X .625

$

$

Not available

3

Husqvarna 532197763

DRIVE PLATE WELDMENT

$66.99

$

Usually ships in 3-10 days

0

4

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532175344

TRUNNION BEARING ASSEMBLY
(Superseded to 597412801)

$34.99

$

In Stock, only 1 left!

0

6

Husqvarna 812000012

RETAINER
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 872270505

CARRIAGE BOLT 5/16-18 X .625
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 532188909

FLANGE BEARING

$28.99

$

In Stock, only 2 left!

0

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532184077

LEVER SHIFTER PLATE

$12.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532184076

SHIFTER SUPPORT BRACKET
(Superseded to 532175349)

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

13

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532403300

CLUTCH ROD

$12.99

$

Usually ships in 3-10 days

0

15

Husqvarna 817490508

BOLT 5/16-18 X .500
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532184075

DRIVE MOUNT PLATE

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532155377

NUT 5/16-18

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532191080

TRACTION PULLEY

$66.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 810040500

LOCKWASHER 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

21

Husqvarna 874950512

SCREW 5/16-18 X .750

$4.99

$

In Stock, only 3 left!

0

22

Husqvarna 532181044

TRACTION SPRING
(Superseded to 532414557)

$6.49

$

In Stock, only 4 left!

0

23

Husqvarna 532179095

RETURN SPRING

$6.49

$

In Stock, only 1 left!

0

24

Husqvarna 532178828

BRAKE SPRING

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532410877

BOTTOM PAN

$31.99

$

In Stock, only 2 left!

0

26

Husqvarna 532184471

SCREW 10-24 X .625

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532423870

TRACTION SPRING BRACKET
(Superseded to 532436311)

$34.99

$

Usually ships in 3-10 days

0
