14527 SB LS (961930049) - Husqvarna 27" Snow Blower (2009-07) Chassis / Engine / Pulleys Parts Diagram

27" Snow Blower

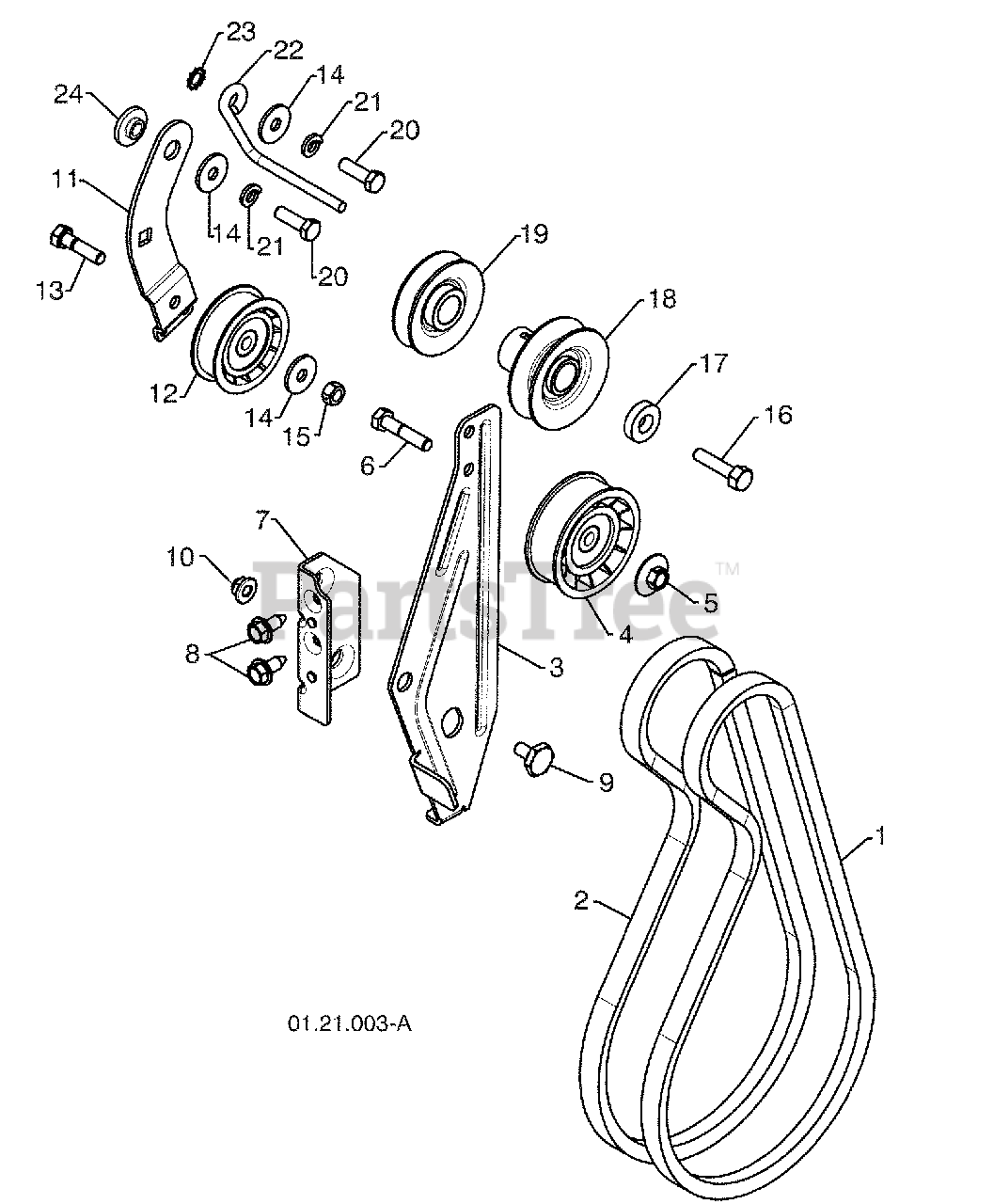

Chassis / Engine / Pulleys Parts Diagram

  • Title
1

Husqvarna 532408007

IMPELLER BELT

$43.99

$

In Stock, Qty 20+

0

2

Husqvarna 532419744

TRACTION BELT

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532429271

IDLER ARM BRACKET
(Superseded to 584232402)

$

$

Not available

4

Husqvarna 532180523

IDLER PULLEY

$24.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532426589

NUT 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

6

Husqvarna 874780524

SCREW 5/16-18 X 1 .50
(Superseded to 539976935)

$

$

Not available

7

Husqvarna 532429270

IDLER BRACKET
(Superseded to 532423990)

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532428867

SCREW 5/16-18 X .625

$6.49

$

In Stock, Qty 6

0

9

Husqvarna 532424297

SHOULDER BOLT 5/16-18 X .500

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532427942

NUT 5/16-18 NYLOCK
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 532187786

TRACTION IDLER ARM
(Superseded to 585238401)

$44.99

$

In Stock, only 2 left!

0

12

Husqvarna 532180522

TRACTION PULLEY

$31.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874780520

SCREW 5/16-18 X 1 .00
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 873800500

NUT 5/16-18

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532851084

SCREW 3/8-24 X 1.375
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

$9.49

$

In Stock, only 3 left!

0

18

Husqvarna 532426491

PULLEY ENG IMPELLER

$26.99

$

In Stock, only 1 left!

0

19

Husqvarna 532426490

PULLEY ENG TRACTION

$15.99

$

In Stock, only 1 left!

0

20

Husqvarna 874610516

SCREW 5/16-18 X 1 .00

$4.99

$

In Stock, only 3 left!

0

21

Husqvarna 810040500

LOCKWASHER 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 532155452

BELT GUIDE

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 811050500

LOCKWASHER 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 2 left!

0

24

Husqvarna 532175331

IDLER BUSHING
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0
