14527 E (961930075-04) - Husqvarna 27" Snow Blower (2012-08) DRIVE 2 Parts Diagram

27" Snow Blower

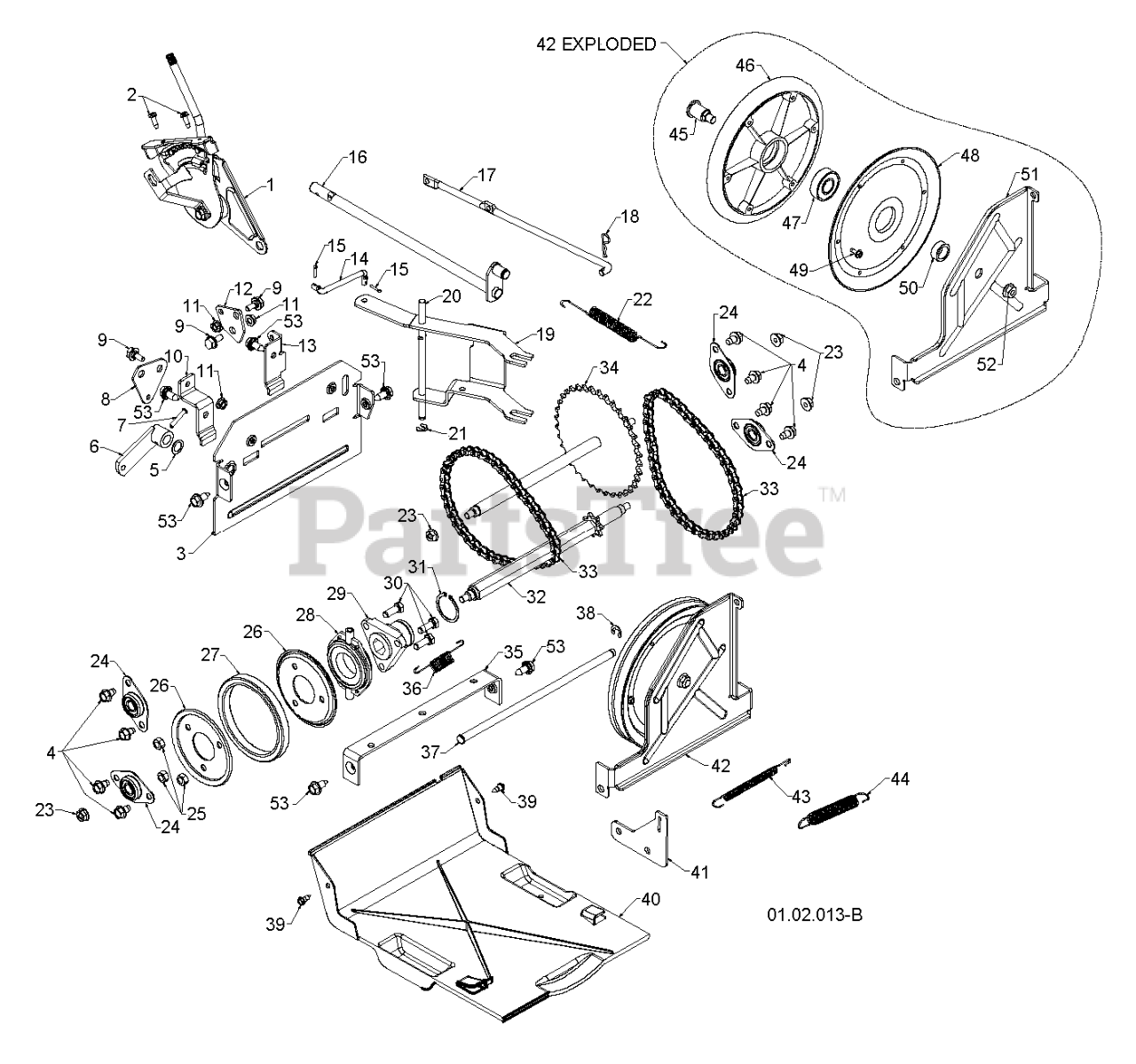

DRIVE 2 Parts Diagram

  • Title
24

Husqvarna 532408981

BEARING FLANGE BALL

$9.99

$

In Stock, Qty 10

0

5

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 10

0

48

Husqvarna 532402393

RP PULLEY.HALF.TRACTION
(Superseded to 585111201)

$

$

Not available

22

Husqvarna 532402878

SPRING.TRACTION.RETURN

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 581422501

BRACKET.YOKE.SHIFTER.BLACK

$43.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

36

Husqvarna 532180135

SPRING, BIAS

$6.49

$

In Stock, Qty 7

0

51

Husqvarna 532422941

PLATE.SWING.DRIVE.BLACK

$

$

Not available

31

Husqvarna 812000012

RETAINING RING (2 2)(3 2)
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

16

Husqvarna 532427542

CONTROL.SHAFT.ASM
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

46

Husqvarna 532401820

PULLEY.PLATE.ASM.DRIVE
(Superseded to 585111201)

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532402652

ROD.PIVOT.SWING.PLATE.SNOW

$37.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532415429

SHIFTER BRACKET
(Superseded to 532401984)

$20.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532428288

E-RING.RETAINER.REINFORCED.375

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532416864

BRACKET.CLUTCH.PLATE.BZP

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532401619

CHAIN.DRIVE.SNOWTHROWER.#420

$15.99

$

Usually ships in 3-10 days

0

21

Husqvarna 812000036

KLIP RING TI

$6.49

$

In Stock, only 1 left!

0

42

Husqvarna 532402689

RP.PULLEY.PLATE.ASM.DRIVE
(Superseded to 585111201)

$

$

Not available

18

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

26

Husqvarna 532199509

PLATE.RUBBER.WHEEL
(Superseded to 532435789)

$

$

Not available

50

Husqvarna 532402511

SPACER BEARING

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 532415435

PLATE.CLUTCH.BZP

$2.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532402568

ROD.CLUTCH.SWING.PLATE

$

$

Not available

44

Husqvarna 532178828

SPRING, BRAKE

$6.49

$

In Stock, only 1 left!

0

47

$18.99

$

In Stock, Qty 9

0

14

Husqvarna 532187101

LINK, SPEED CONTROL

$

$

Not available

15

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532410877

PAN.BOTTOM.PLASTIC

$31.99

$

In Stock, only 2 left!

0

9

Husqvarna 532402881

BOLT.SHOULDER.3/X.25

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532402187

SHAFT.HEX.W/SPOCKET

$

$

Not available

52

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 817501010

SCREW #10-24 X 5/8

$

$

Not available

29

Husqvarna 532178613

HUB, RUBBER WHEEL

$30.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532436080

PLATE.END.CHAIN.ASM.PNT.ORANGE

$24.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532416682

BRACKET.TRACTION.SPRING.

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532414557

SPRING.TRACTION.IDLER

$6.49

$

In Stock, only 3 left!

0

27

Husqvarna 532440620

RING.RUBBER.2-STG.SNW.DRV.WH
(Superseded to 585021001)

$26.99

$

In Stock, only 1 left!

0

45

Husqvarna 532402504

SHAFT.FRICTION.PULLEY.SNOW
(Superseded to 585111201)

$

$

Not available

54

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

1

Husqvarna 532198875

HEAD ASSY SPEED
(Superseded to 532429667)

$

$

Not available

7

Husqvarna 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532175344

TRUNNION BEARING ASSY
(Superseded to 597412801)

$34.99

$

In Stock, only 1 left!

0

6

Husqvarna 532405485

ARM, AUGER CONTROL

$9.99

$

In Stock, only 1 left!

0

20

Husqvarna 532402310

ROD.PIVOT.SHIFTER

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532415433

BRACKET.SHIFTER.PLATE.BZP

$4.99

$

In Stock, only 1 left!

0

53

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 6

0

25

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532437303

SPROCKET.WELDMENT

$51.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532415450

PLATE.SHIFTER.BZP

$7.99

$

In Stock, only 3 left!

0
