14527 E (961930075-04) - Husqvarna 27" Snow Blower (2012-08) CHASSIS, ENGINE & PULLEYS Parts Diagram

27" Snow Blower

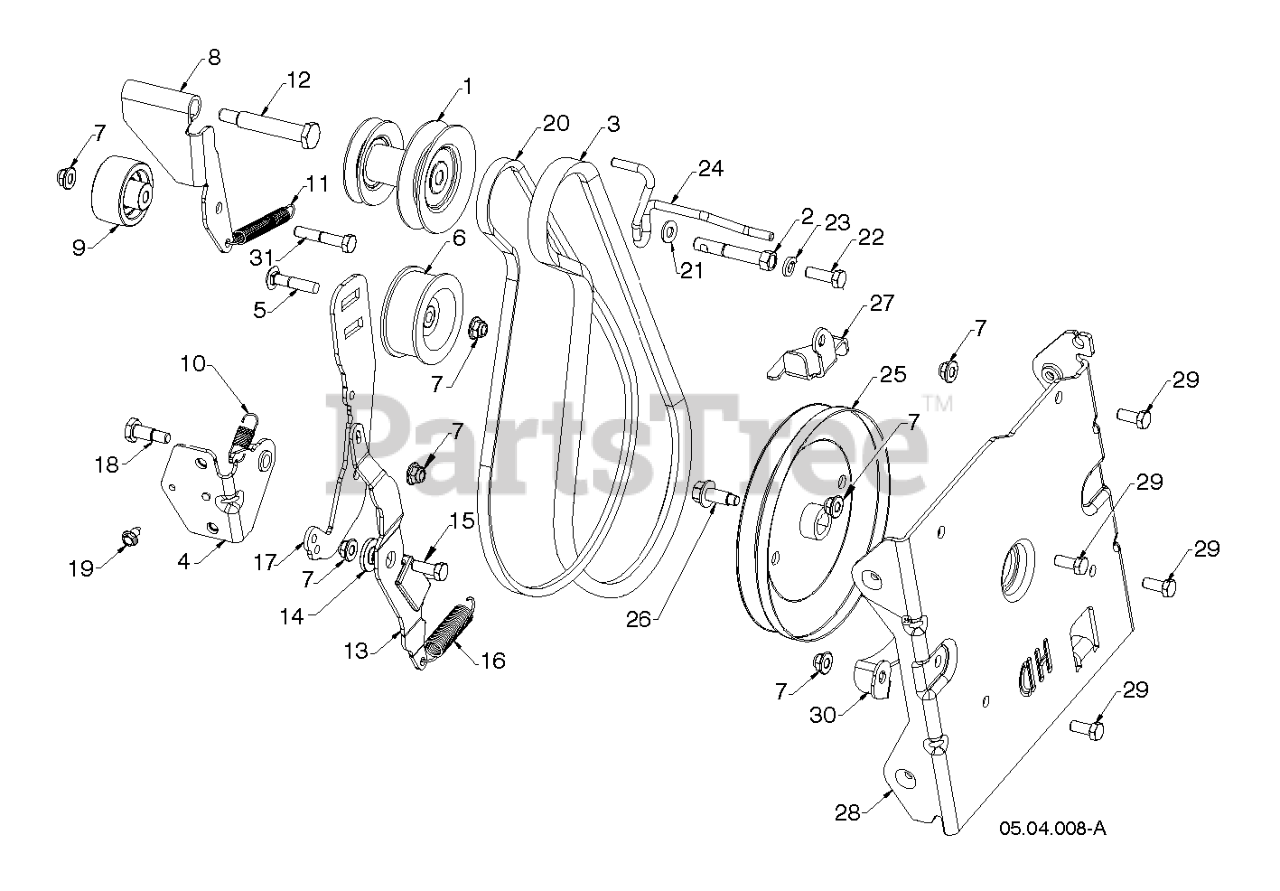

CHASSIS, ENGINE & PULLEYS Parts Diagram

  • Title
4

Husqvarna 589263402

BRACKET WELDMENT, IDLER ARM ZI

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 589262701

PULLEY IDLER

$

$

Not available

7

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

2

Husqvarna 582388401

BOLT.ENGINE.PULLEY

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 589263801

PULLEY IMPELLER DD 5L HD

$34.99

$

Usually ships in 3-10 days

0

26

Husqvarna 583814901

SCREW FLANGE HEAD CAP WITH DOG
(Superseded to 595517901)

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 582640702

BELT 3L 39.68; POLY CORD

$7.99

$

In Stock, only 3 left!

0

21

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

$5.99

$

In Stock, only 2 left!

0

10

Husqvarna 589263701

SPRING IDLER RETURN

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

14

Husqvarna 587343701

BUSHING.BRAKE.ARM

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 579763501

SPRING EXTENSION - BRAKE

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 874610512

SCREW 5/16-24 X .75 GR5

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 586880201

PULLEY.IDLER.FLANG.2.O/SPACER
(Superseded to 586880202)

$12.99

$

Usually ships in 3-10 days

0

13

Husqvarna 579763301

ARM IMPELLER BRAKE

$31.99

$

In Stock, only 1 left!

0

29

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 589262401

GUIDE BELT - 3L FRICTION, 5L I

$7.99

$

Usually ships in 3-10 days

0

28

Husqvarna 501595402

BRACKET AUGER HOUSING INTERFAC

$56.99

$

Usually ships in 3-10 days

0

1

Husqvarna 589262201

PULLEY WELDMENT

$28.99

$

Usually ships in 3-10 days

0

30

Husqvarna 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, only 2 left!

0

12

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, only 3 left!

0

15

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

3

Husqvarna 589262602

BELT 5L 39.15L

$26.99

$

In Stock, only 1 left!

0

5

Husqvarna 589284501

BOLT 5/16-18 CARRIAGE 1.5L

$6.99

$

Usually ships in 3-10 days

0

27

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 589262902

ARM IDLER BLACK ZINC

$11.99

$

Usually ships in 3-10 days

0

11

Husqvarna 580753001

SPRING RETURN IDLER ARM

$5.99

$

In Stock, Qty 19

0

8

Husqvarna 593192502

ARM DRIVE IDLER CLEAR ZINC PLA

$11.99

$

In Stock, only 1 left!

0

18

Husqvarna 589263601

SCREW HEX HEAD SHOULDER

$6.99

$

Usually ships in 3-10 days

0

31

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12
