145 BT - Husqvarna Backpack Blower, CARB II (2001-04) Cylinder / Crankcase Parts Diagram

Backpack Blower, CARB II

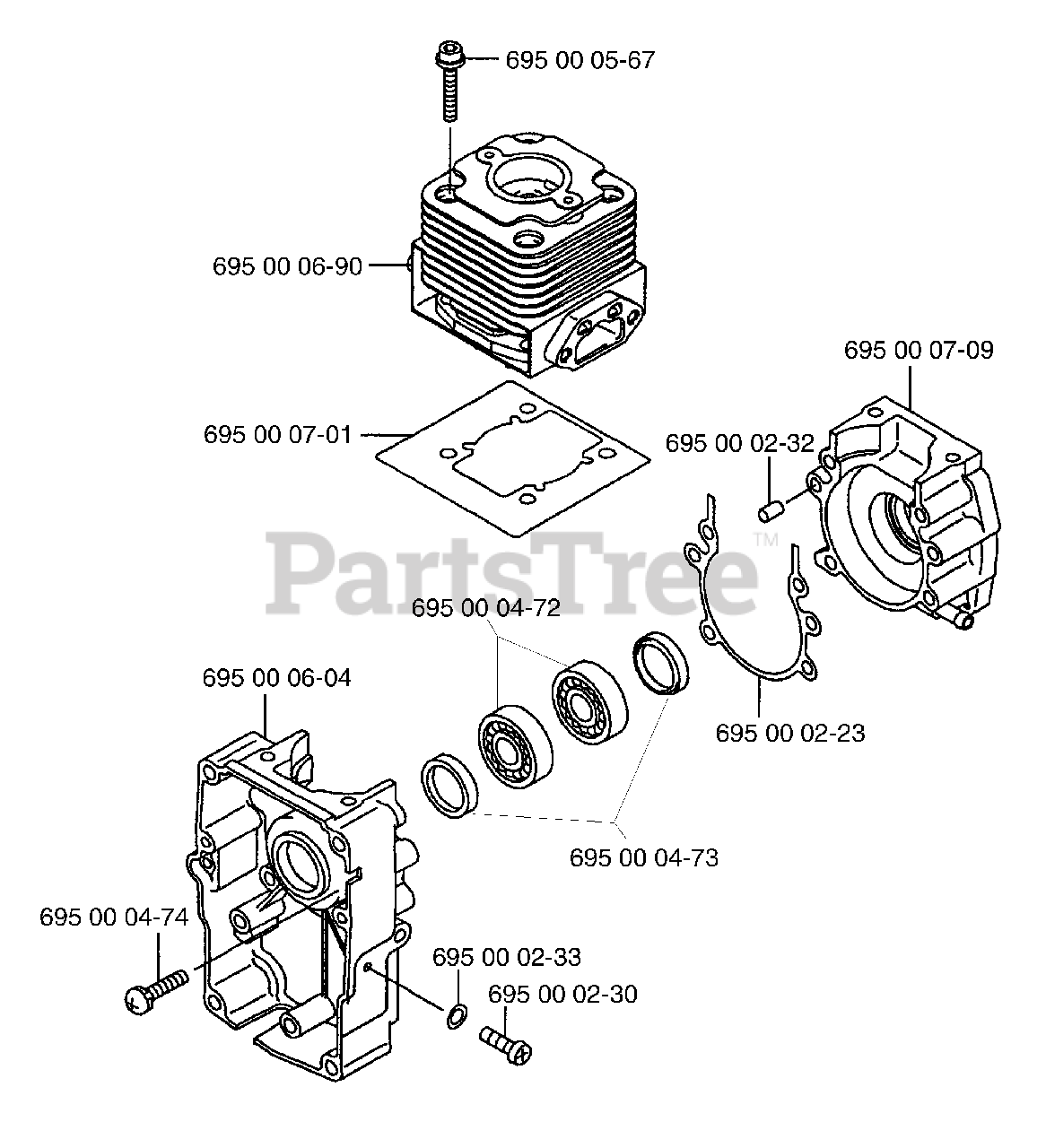

Cylinder / Crankcase Parts Diagram

  • Title
695000474

Husqvarna 695000474

Screw - Pan
(Superseded to 695000231)

$

$

Not available

695000604

Husqvarna 695000604

Crankcase
(Superseded to 531003697)

$

$

Not available

695000701

$

$

Not available

695000690

Husqvarna 695000690

Cylinder Engine

$

$

Not available

695000472

Husqvarna 695000472

Bearing, Ball 6202c3
(Superseded to 738220225)

$

$

Not available

695000233

Husqvarna 695000233

Gasket
(Superseded to 531003260)

$

$

Not available

695000567

Husqvarna 695000567

Bolt
(Superseded to 531003392)

$

$

Not available

695000473

Husqvarna 695000473

Seal - Oil
(Superseded to 531003256)

$

$

Not available

695000232

Husqvarna 695000232

Pin-Dowel
(Superseded to 531003259)

$

$

Not available

695000223

Husqvarna 695000223

Gasket C/Case
(Superseded to 531003251)

$1.49

$

In Stock, Qty 5

0

695000709

$

$

Not available

695000230

Husqvarna 695000230

Screw, Pan
(Superseded to 531003257)

$

$

Not available
