145 BF - Husqvarna Backpack Blower, CARB II (2001-04) Throttle Assy. & Backpack Frame & Fuel Tank Parts Diagram

Backpack Blower, CARB II

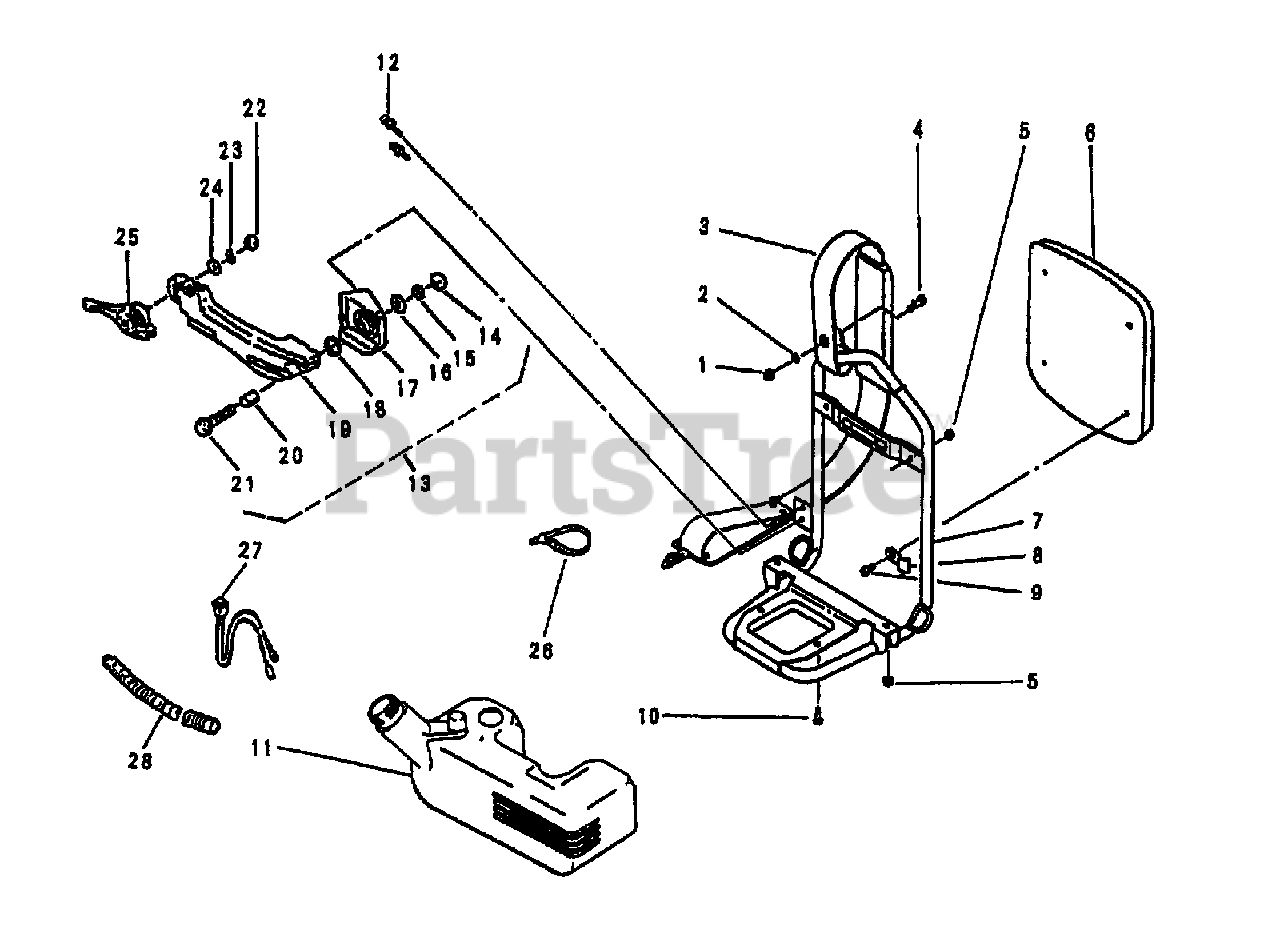

Throttle Assy. & Backpack Frame & Fuel Tank Parts Diagram

  • Title

1

Husqvarna 695000038

Flange Nylon Nut (M6)
(Superseded to 531003205)

$

$

Not available

2

Husqvarna 695000045

Washer
(Superseded to 531003379)

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 695000763

Shoulder Band

$

$

Not available

4

Husqvarna 695000025

Truss Screw (M6x20)

$2.49

$

In Stock, only 4 left!

0

5

Husqvarna 695000039

Flange Nut

$

$

Not available

6

Husqvarna 695000048

Backpack Pad

$

$

Not available

7

Husqvarna 695000649

Backpack Frame

$

$

Not available

8

Husqvarna 695000003

Backpack Pad Fitting

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 695000010

Hex Bolt (M5x12)

$2.49

$

In Stock, only 3 left!

0

10

Husqvarna 695000200

Screw (M6x10)
(Superseded to 531003220)

$

$

Not available

11

Husqvarna 695000572

Fuel Tank

$

$

Not available

12

Husqvarna 695000675

Screw (M5x12)

$

$

Not available

13

Husqvarna 695000404

Lever Assy.

$

$

Not available

14

Husqvarna 695000216

Hex Nut

$

$

Not available

15

Husqvarna 695000212

Spring Lock Washer (M8)

$

$

Not available

16

Husqvarna 695000213

Toothed Lock Washer (M8)

$

$

Not available

17

Husqvarna 695000206

Stay

$9.49

$

In Stock, only 1 left!

0

18

Husqvarna 695000209

O-Ring

$3.49

$

In Stock, only 1 left!

0

19

Husqvarna 695000207

Stay

$

$

Not available

20

Husqvarna 695000208

Spacer

$

$

Not available

21

Husqvarna 695000210

Flange Bolt (M8x25)

$

$

Not available

22

Husqvarna 695000216

Hex Nut (M5)

$

$

Not available

23

Husqvarna 695000217

Spring Lock Washer (M5)

$

$

Not available

24

Husqvarna 695000218

Plain Washer (M5)

$

$

Not available

25

Husqvarna 695000215

Throttle Lever

$

$

Not available

26

Husqvarna 695000043

Wire Band
(Superseded to 695000110)

$1.49

$

In Stock, only 3 left!

0

27

Husqvarna 695000219

Stop Switch

$

$

Not available

28

Husqvarna 695000220

Tube

$4.99

$

In Stock, only 1 left!

0
