145 BF - Husqvarna Backpack Blower, CARB II (2001-04) Fan / Fan Housing & Blowing Tubes Parts Diagram

Backpack Blower, CARB II

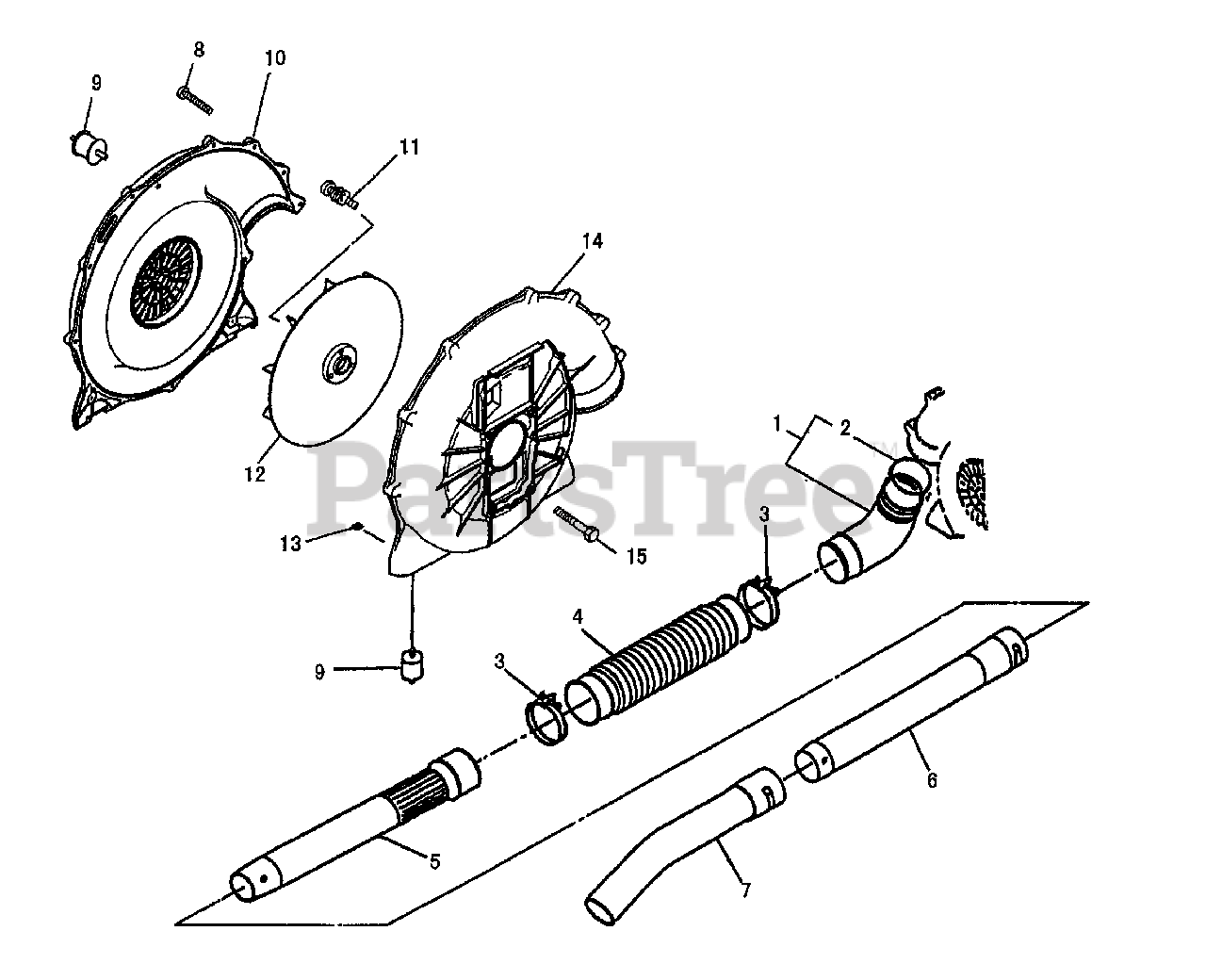

Fan / Fan Housing & Blowing Tubes Parts Diagram

  • Title
1

Husqvarna 695000402

Elbow Pipe
(Superseded to 695000526)

$43.99

$

Usually ships in 3-10 days

0

2

Husqvarna 695000005

O-Ring
(Superseded to 531003215)

$

$

Not available

3

Husqvarna 695000527

Hose Band
(Superseded to 531003212)

$

$

Not available

4

Husqvarna 695000016

Flex Pipe
(Superseded to 695008006)

$67.99

$

Usually ships in 3-10 days

0

5

Husqvarna 695000019

Base Pipe
(Superseded to 531003211)

$

$

Not available

6

Husqvarna 695000020

Middle Pipe
(Superseded to 531003216)

$

$

Not available

7

Husqvarna 695000021

Bend Pipe
(Superseded to 531003217)

$

$

Not available

8

Husqvarna 695000205

Tapping Screw (M5x30)

$

$

Not available

9

Husqvarna 695000188

Anti-Vibe Mount
(Superseded to 531003225)

$

$

Not available

10

$

$

Not available

11

Husqvarna 695000008

Pre-Coat Lock Bolt
(Superseded to 695000637)

$

$

Not available

$

$

Not available

13

Husqvarna 695000006

Hex Nut
(Superseded to 531003247)

$

$

Not available

14

$171.93

$

Usually ships in 3-10 days

0

15

Husqvarna 695000221

Pre-Coat Lock Bolt

$

$

Not available
