145 BF - Husqvarna Backpack Blower (1997-07) Cylinder & Crankcase Parts Diagram

Backpack Blower

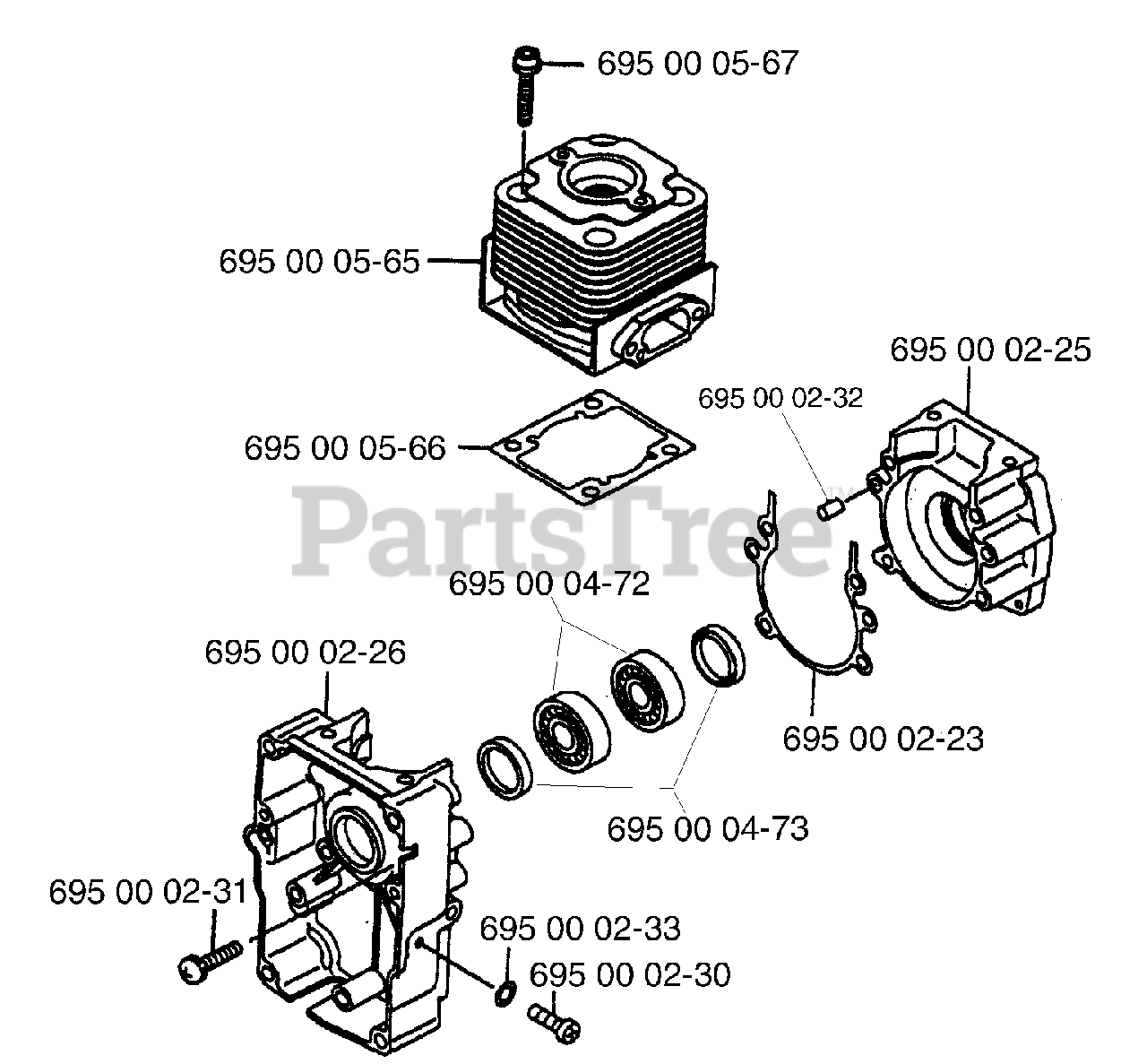

Cylinder & Crankcase Parts Diagram

  • Title

695000567

Husqvarna 695000567

BOLT
(Superseded to 531003392)

$

$

Not available

695000232

Husqvarna 695000232

PIN-DOWEL
(Superseded to 531003259)

$

$

Not available

695000225

Husqvarna 695000225

C/CASE

$

$

Not available

695000223

Husqvarna 695000223

GASKET C/CASE
(Superseded to 531003251)

$1.49

$

In Stock, Qty 5

0

695000565

Husqvarna 695000565

CYLINDER, ENGINE
(Superseded to 531003393)

$

$

Not available

695000566

Husqvarna 695000566

GASKET, CYLINDER
(Superseded to 531003394)

$

$

Not available

695000472

Husqvarna 695000472

BEARING, BALL 6202C3
(Superseded to 738220225)

$

$

Not available

695000226

Husqvarna 695000226

C/CASE
(Superseded to 531003254)

$

$

Not available

695000231

Husqvarna 695000231

SCREW, PAN WS
(Superseded to 531003258)

$

$

Not available

695000233

Husqvarna 695000233

GASKET
(Superseded to 531003260)

$

$

Not available

695000230

Husqvarna 695000230

SCREW, PAN
(Superseded to 531003257)

$

$

Not available

695000473

Husqvarna 695000473

SEAL - OIL
(Superseded to 531003256)

$

$

Not available
