145-995-190 - White Outdoor Garden Tractor, 18hp (1985) Transaxle Parts Diagram

Garden Tractor, 18hp

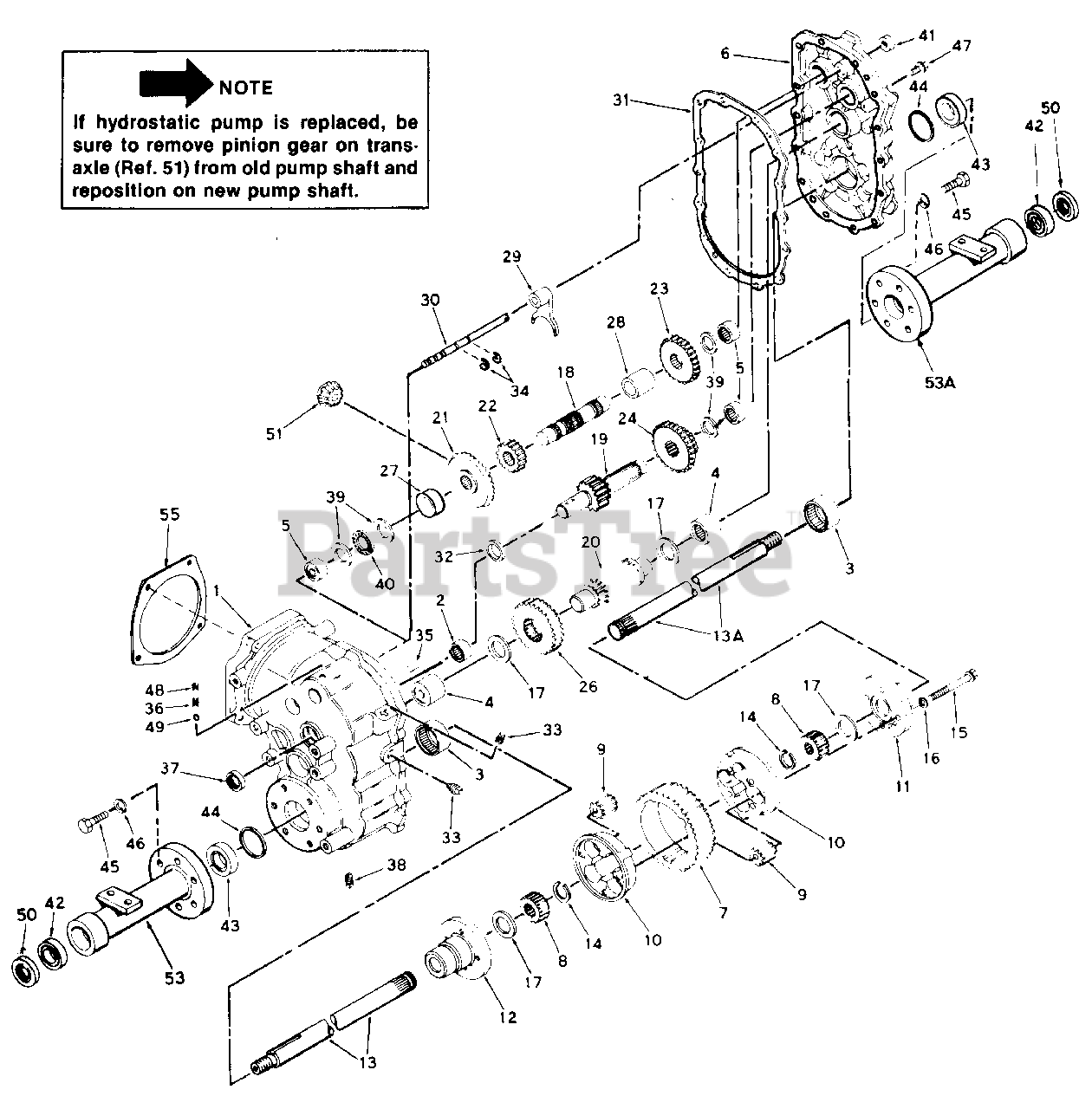

Transaxle Parts Diagram

  • Title

1

MTD TC-770060A

Case Ass'y., Transaxle

Note: NLA

$

$

Currently unavailable

2

MTD TC-780097

Bearing, Needle

Note: NLA

$

$

Currently unavailable

3

MTD TC-780098

Bearing, Needle

Note: NLA

$

$

Currently unavailable

4

MTD TC-780099

Bearing, Needle

Note: NLA

$

$

Currently unavailable

5

MTD TC-780100

Bearing, Needle

Note: NLA

$

$

Currently unavailable

6

MTD TC-772065

Cover Ass'y., Transaxle

Note: NLA

$

$

Currently unavailable

7

MTD TC-778084

Gear, Ring

Note: NLA

$

$

Currently unavailable

8

MTD TC-778085

Gear, Side

Note: NLA

$

$

Currently unavailable

9

MTD TC-778086

Gear, Pinion

Note: NLA

$

$

Currently unavailable

10

MTD TC-786054

Core, Body

Note: NLA

$

$

Currently unavailable

11

MTD TC-774199

Carrier. Differential

Note: NLA

$

$

Currently unavailable

12

MTD TC-774200

Carrier, Differential

Note: NLA

$

$

Currently unavailable

13

MTD TC-774390

Axle, 18 17/64" Long

Note: NLA

$

$

Currently unavailable

13A

MTD TC-774389

Axle, 15 29/64" Long

Note: NLA

$

$

Currently unavailable

14

MTD TC-792062

Ring, Snap

Note: NLA

$

$

Currently unavailable

15

MTD TC-792063

Screw, Hex Hd. Mach., 3/8-16 x 3-3/8

Note: NLA

$

$

Currently unavailable

16

MTD TC-792011

Lock Washer, 3/8"

Note: NLA

$

$

Currently unavailable

17

MTD TC-780101

Washer, Thrust

Note: NLA

$

$

Currently unavailable

18

MTD TC-776118

Shaft, Counter

Note: NLA

$

$

Currently unavailable

19

MTD TC-776122

Shaft, Brake

Note: NLA

$

$

Currently unavailable

20

MTD TC-776120

Pinion, Output

Note: NLA

$

$

Currently unavailable

21

MTD TC-778087

Gear, Bevel (30 Teeth)

Note: NLA

$

$

Currently unavailable

22

MTD TC-778088

Gear, Spur (16 Teeth)

Note: NLA

$

$

Currently unavailable

23

MTD TC-778096

Gear, Spur (23 Teeth)

Note: NLA

$

$

Currently unavailable

24

MTD TC-778097

Gear, Cluster (20 and 27 Teeth)

Note: NLA

$

$

Currently unavailable

26

MTD TC-778098

Gear, Output (37 Teeth)

Note: NLA

$

$

Currently unavailable

27

MTD TC-786055

Spacer (55/64" Long)

Note: NLA

$

$

Currently unavailable

28

MTD TC-786056

Spacer (1 19/32" Long)

Note: NLA

$

$

Currently unavailable

29

MTD TC-784195

Fork, Shift

Note: NLA

$

$

Currently unavailable

30

MTD TC-784196

Rod, Shift

Note: NLA

$

$

Currently unavailable

31

MTD TC-788047

Gasket, Case and Cover

Note: NLA

$

$

Currently unavailable

32

MTD TC-780005

Spacer

Note: NLA

$

$

Currently unavailable

33

MTD TC-792010

Plug, Pipe

Note: NLA

$

$

Not available

34

MTD TC-792064

Ring, Snap

Note: NLA

$

$

Currently unavailable

35

MTD TC-786026

Pin, Dowel

$4.49

$

Usually ships in 3-12 days

0

36

MTD TC-792003

Spring

$4.49

$

In Stock, only 2 left!

0

37

MTD TC-788008

Seal, Oil

$8.49

$

In Stock, only 2 left!

0

38

MTD TC-792019

Plug, Magnetic Drain

Note: NLA

$

$

Not available

39

MTD TC-780045

Washer, Thrust

Note: NLA

$

$

Currently unavailable

40

MTD TC-780012

Bearing, Thrust

Note: NLA

$

$

Currently unavailable

41

MTD TC-788034

Seal, Oil

Note: NLA

$

$

Currently unavailable

42

MTD TC-780103

Bearing, Ball

Note: NLA

$55.99

$

In Stock, only 1 left!

0

43

MTD TC-780104

Bearing, Thrust

$42.99

$

In Stock, only 2 left!

0

44

MTD TC-788048

Seal, Square Cut

$4.49

$

Usually ships in 3-12 days

0

45

MTD TC-792065

Screw, Hex Hd. Mach., 1/2-13 x 1 1/2

Note: NLA

$

$

Currently unavailable

46

MTD TC-792066

Lock Washer, 1/2"

Note: NLA

$

$

Currently unavailable

47

MTD TC-792067

Screw, Hex Hd. Thd. Forming, 5/16-18 x 1

Note: NLA

$

$

Currently unavailable

48

MTD TC-792068

Screw, Set 1/4-20 x 1/2

Note: NLA

$

$

Currently unavailable

49

MTD TC-792004

Ball, Steel

Note: NLA

$4.49

$

In Stock, Qty 12

0

50

MTD TC-788049

Seal, Oil

Note: NLA

$11.99

$

In Stock, only 1 left!

0

51

MTD TC-778093A

Pinion, Bevel

Note: NLA

$

$

Currently unavailable

53

MTD TC-782061

Housing, Axle (9-1/4" Long)

Note: NLA

$

$

Currently unavailable

53A

MTD TC-782060

Housing, Axle (7-5/16" Long)

Note: NLA

$

$

Currently unavailable

55

MTD TC-788050

Gasket

Note: NLA

$

$

Currently unavailable
