145-995-190 - White Outdoor Garden Tractor, 18hp (1985) Chassis Assembly Parts Diagram

Garden Tractor, 18hp

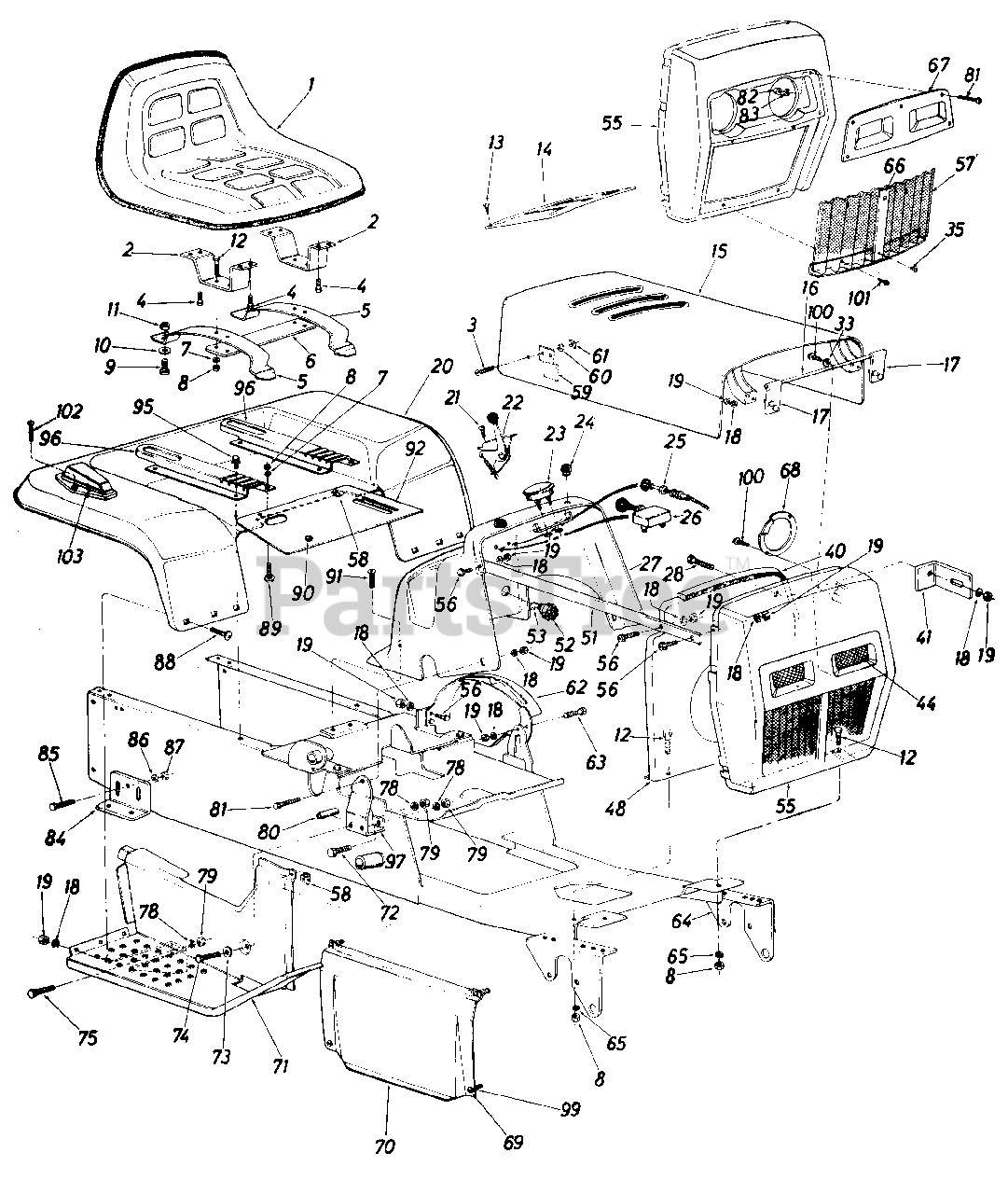

Chassis Assembly Parts Diagram

  • Title

1

MTD 757-0308

Seat Ass'y. Comp

Note: NLA

$

$

Currently unavailable

2

MTD 14225

Seat Support Brkt.

Note: NLA

$

$

Not available

3

MTD 710-0192

Truss Hd. Mach. Scr. #10-24 x.38" Lg.

$3.99

$

In Stock, Qty 12

0

4

MTD 710-0623

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

5

MTD 13123-0637

Seat Spring

$

$

Not available

6

MTD 13214

Seat Support Plate

Note: NLA

$

$

Currently unavailable

7

MTD 936-0119

L-Wash. 5/16" Scr.*

$4.99

$

In Stock, Qty 20+

0

8

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0689

Nylon Scr. 1/2-13 x 75" Lg.

$6.99

$

Usually ships in 3-6 days

0

10

MTD 936-0160

Fl-Wash .531 I.D. x .930 O.D.

$4.49

$

In Stock, only 1 left!

0

11

MTD 912-0384

Hex Cent. L-Nut l/2-13 Thd.

$6.99

$

In Stock, only 3 left!

0

12

MTD 710-3008

Hex Scr. 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0697

Self-Tap Oval Hd. Scr. 1/2" Lg.

$

$

Not available

14

MTD 731-0568

Dash Panel Cover

Note: NLA

$

$

Not available

15

MTD 13772

Hood Ass'y.

Note: NLA

$

$

Currently unavailable

16

MTD 747-0231

Hinge Rod

Note: NLA

$

$

Not available

17

MTD 13581

Hood Hinge Ass'y.

Note: NLA

$

$

Not available

18

MTD 936-0329

L-Wash. 1/4" Scr.*

$4.49

$

In Stock, Qty 9

0

19

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

20

MTD 13106

Rear Fender

Note: NLA

$

$

Currently unavailable

21

MTD 710-0721

Fl-Hd. Truss Scr. #10 x .62" Lg.

Note: NLA

$

$

Currently unavailable

22

MTD 746-0342

Throttle Control

Note: NLA

$

$

Currently unavailable

23

MTD 925-3141

Ammeter

$62.99

$

In Stock, only 4 left!

0

24

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

25

MTD 746-0343

Choke Control

Note: NLA

$

$

Not available

26

MTD 725-0670

Light Switch

Note: NLA

$

$

Not available

27

MTD 731-0463

Dash Panel

Note: NLA

$

$

Not available

28

MTD 710-0751

Hex Scr. 1/4-20 x .62" Lg.*

$3.99

$

In Stock, Qty 20+

0

28

MTD 13689

Hood Support Brkt Ass'y. R. H .

Note: NLA

$

$

Not available

33

MTD 936-0211

Fl-Wash. .250 I.D. x 1.25 O.D.
(Superseded to 736-0211)

$6.99

$

In Stock, only 3 left!

0

35

MTD 710-0294

Hex Scr. 1/4-20 x .38" Lg.*

$3.49

$

Usually ships in 3-6 days

0

40

MTD 722-0136

Foam Strip

Note: NLA

$

$

Not available

41

MTD 13724

Heat Shield Brkt.

Note: NLA

$

$

Currently unavailable

44

MTD 925-0222

Head Lamp

$58.99

$

In Stock, only 4 left!

0

48

MTD 13569

Heat Shield

Note: NLA

$

$

Not available

48

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .75" Lg.*

$4.49

$

Usually ships in 3-6 days

0

51

MTD 13725

Grille Strap

Note: NLA

$

$

Not available

52

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 20+

0

53

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

55

MTD 13200

Grille

Note: NLA

$

$

Currently unavailable

56

MTD 710-3015

Hex Scr. 1/4-20 x .75" Lg.*

$3.99

$

In Stock, Qty 20+

0

57

MTD 13273

Grille Screen

Note: NLA

$

$

Currently unavailable

58

MTD 726-0169

Clip-On Receptacle

Note: NLA

$

$

Currently unavailable

59

MTD 732-0391

Hood Spring

Note: NLA

$

$

Not available

60

MTD 936-0722

L-Wash. #10
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

61

MTD 912-0121

Hex Nut #10-24
(Superseded to 712-0121)

$4.49

$

In Stock, Qty 20+

0

62

MTD 13528

Speed Control Guide

Note: NLA

$

$

Not available

63

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

64

MTD 13509

Frame Ass'y.

Note: NLA

$

$

Not available

65

MTD 736-0242

Bell-Wash. 5/16" Scr.*

$4.49

$

In Stock, Qty 20+

0

66

MTD 723-0337

Moulding

Note: NLA

$

$

Currently unavailable

67

MTD 731-0399

Headlight Bezel

Note: NLA

$

$

Currently unavailable

68

MTD 09960

Headlight Retainer

Note: NLA

$

$

Not available

69

MTD 726-0167

1/4-Turn Stud

Note: NLA

$

$

Currently unavailable

70

MTD 13525

Hood Lower Side Panel

Note: NLA

$

$

Not available

71

MTD 13576

Foot Step Panel Ass'y. R.H.

Note: NLA

$

$

Not available

71

MTD 13577

Foot Step Panel Ass'y. L.H.

Note: NLA

$

$

Not available

72

MTD 910-0253

Hex Scr. 3/8-16 x 1.00" Lg. Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

73

MTD 936-0117

Fl-Wash. .385 I.D. x .62 O.D.

$7.49

$

In Stock, only 1 left!

0

74

MTD 710-0194

Hex Scr. 3/8-16 x 3.00" Lg.*

$

$

Not available

75

MTD 910-0253

Hex Scr. 3/8-16 x 1.00" Lg. Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

78

MTD 936-0169

L-Wash. 3/8" Scr.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

79

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

80

MTD 750-0261

Spacer .375 I.D. x .62 O.D. x 2.00" Lg.

Note: NLA

$

$

Not available

81

MTD 710-0467

Truss Mach. Scr. #10-24 x 1.0" Lg.

Note: NLA

$

$

Not available

82

MTD 912-0121

Sq. Nut #10-24 Thd.
(Superseded to 712-0121)

$4.49

$

In Stock, Qty 20+

0

83

MTD 936-0147

Ext. L-Wash. #10 I.D.

$3.49

$

Usually ships in 3-6 days

0

84

MTD 13066

Transaxle Support Brkt.

Note: NLA

$

$

Not available

85

MTD 710-0617

Rd. Hd. Rib Neck Scr. 3/8-24

$4.49

$

Usually ships in 3-6 days

0

86

MTD 936-0217

L-Wash. 3/8" Scr.*
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 6

0

87

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

88

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.*
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

89

MTD 710-0260A

Carr. Bolt 5/16-18 x .62" Lg.*

$4.49

$

In Stock, Qty 20+

0

90

MTD 731-0405

Snap Bushing

$

$

Not available

91

MTD 710-0618

Fl-Hd. Self-Tap Scr. 1/4-20 x .62" Lg.

Note: NLA

$

$

Not available

92

MTD 13529

Transmission Cover

Note: NLA

Variations

MTD 13529-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 13529-0637

No Longer Available COVER-CONT - POWDER BLACK (0637)

$

$

Not available

MTD 13529-0648

No Longer Available COVER-CONT - TECH GRAY (0648)

$

$

Not available

MTD 13529-0665

No Longer Available COVER-CONT - YARDMAN GREEN (0665)

$

$

Not available

$

$

95

MTD 710-1260A

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

96

MTD 13124

Seat Adjustment Brkt.

Note: NLA

$

$

Not available

97

MTD 13536

Dash Panel Mtg. Brkt.

Note: NLA

Variations

MTD 13536-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

99

MTD 726-0168

Retainer

Note: NLA

$

$

Currently unavailable

100

MTD 710-0599

Thread Rolling Scr. 1/4"

$4.49

$

In Stock, Qty 20+

0

101

MTD 728-0148

Drive Scr. #7

Note: NLA

$

$

Currently unavailable

102

MTD 710-0841

Fl. C-Sunk AB-Tap Scr. #10 x 1.0" Lg.

$4.49

$

Usually ships in 3-6 days

0

103

MTD 925-0612

Tail light

$

$

Not available
