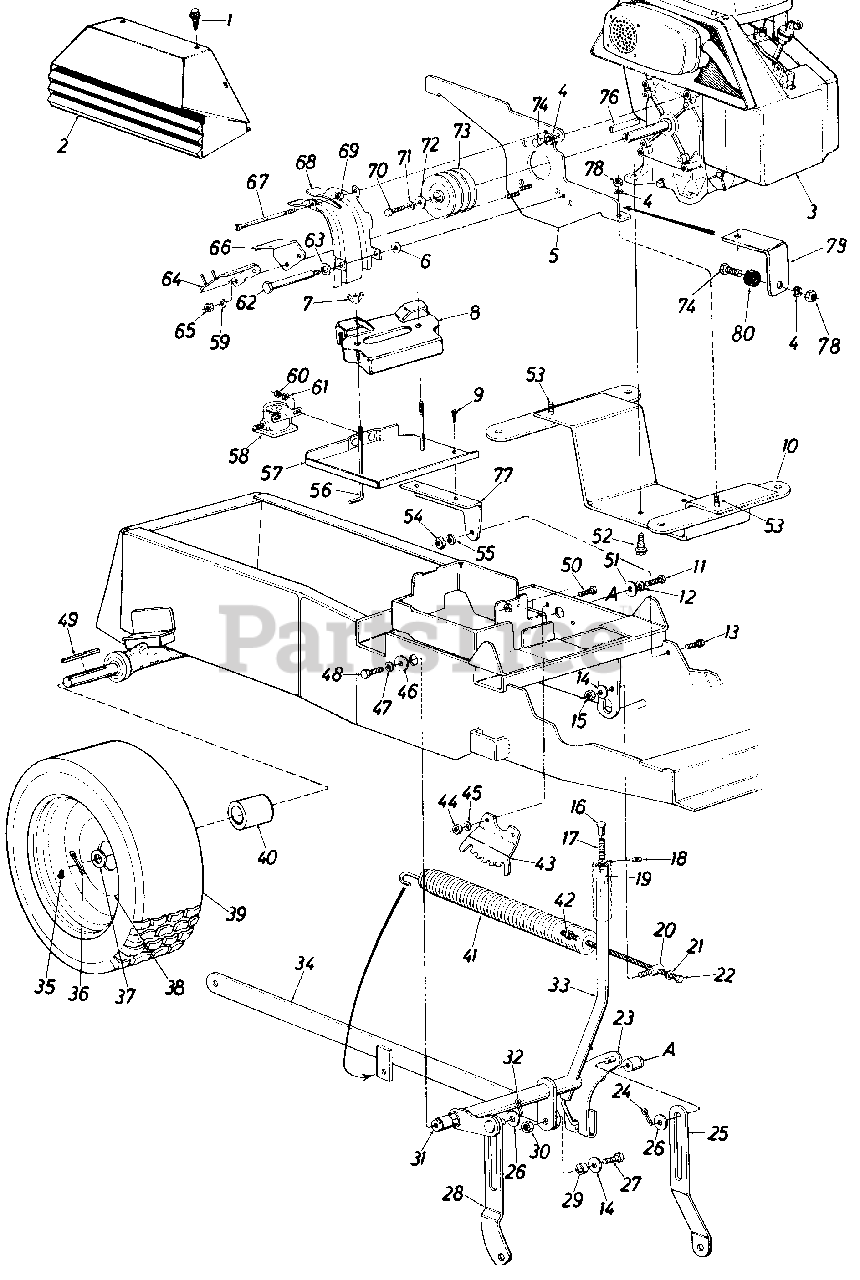

145-918-132 - Lawnflite Garden Tractor (1985) (Allied Hardware) Parts05 Parts Diagram

Garden Tractor

Parts05 Parts Diagram

  • Title

1

MTD 710-0642

Hex Self-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

2

MTD 13429

Exhaust Shield Ass'y.

$

$

Currently unavailable

3

18 H.P. Twin Cylinder Engine

$

$

Not available

4

MTD 736-0169

L-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

5

MTD 13473

Engine Belt Guard Mount Plate Ass'y.

$

$

Currently unavailable

6

MTD 736-0105

Bell-Wash.

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0113

Wing Nut 1/4-20 Thd.
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

8

MTD 731-0707

Battery Cover

$

$

Not available

9

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

10

MTD 13476

Engine Support Ass'y.

$

$

Currently unavailable

11

MTD 710-0514

Hex Scr. 3/8-16 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0169

L-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-0322

Hex Sems Scr. 5/16-18 x 1.00" Lg.

$

$

Not available

14

MTD 736-0242

Bell-Wash.

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

16

MTD 711-0642

Lift Handle Button
(Superseded to 711-0642A)

$7.99

$

In Stock, Qty 12

0

17

MTD 732-0152

Compression Spring

$4.99

$

Usually ships in 3-6 days

0

18

MTD 736-0173

Fl-Wash. 1/4" I.D. x .75" O.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 747-0212

Locking Rod

$

$

Not available

20

MTD 711-0471

Ferrule

$

$

Not available

21

MTD 736-0140

Fl-Wash. 3/8" I.D. x 5/8" O.D.

$7.49

$

In Stock, Qty 7

0

22

MTD 710-0677

Hex Scr.

Note: (Special)

$

$

Not available

23

MTD 748-0252

Lift Shaft Pivot Pin

$

$

Currently unavailable

24

MTD 714-0115

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

25

MTD 13169

Deck Link-L.H.

$

$

Currently unavailable

26

MTD 736-0179

Fl-Wash. 1/2" I.D. x 1-1/4" O.D.

$4.99

$

In Stock, only 2 left!

0

27

MTD 710-0504

Hex Scr. 1/2-20 x 1.25" Lg.

$

$

Not available

28

MTD 13168

Deck Link-R.H.

$

$

Currently unavailable

29

MTD 750-0336

Push Bar Sleeve
(Superseded to 950-0336)

$

$

Not available

30

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

31

MTD 748-0252

Lift Shaft Pivot Pin

$

$

Currently unavailable

32

MTD 714-0115

Gotter Pin

$3.99

$

In Stock, only 2 left!

0

33

MTD 13086

Lift Shaft Weldment Ass'y.

$

$

Currently unavailable

34

MTD 13092

Push Bar Ass'y.

$

$

Currently unavailable

35

MTD 734-0225

Air Valve
(Superseded to 753-0262)

$

$

Not available

36

MTD 714-0142

Cotter Pin 3/16" Dia. x 1.50" Lg.

$6.49

$

Usually ships in 3-6 days

0

37

MTD 736-0345

Flat Washer
(Superseded to 936-0345)

$4.49

$

In Stock, Qty 10

0

38

MTD 734-1015

Rim Only

Variations

MTD 734-1015-0499

No Longer Available WHEEL RIM - CUB BEIGE (0499)

$

$

Not available

MTD 734-1015-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 734-1015-0662

No Longer Available WHEEL RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1015-0674

No Longer Available WHEEL RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

MTD 734-0322

Tire Only

Variations

MTD 734-0322-0901

No Longer Available TIRE-TUBEL - Carlisle (0901)

$

$

Not available

MTD 734-0322-0902

No Longer Available TIRE-TUBEL - Dico (0902)

$

$

Not available

$

$

39

MTD 734-1005

Rear Wheel Ass'y. Comp.

Variations

MTD 734-1005-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 734-1005-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 734-1005-0931

No Longer Available WHEEL ASM - Carlisle Beige (0931)

$

$

Not available

MTD 734-1005-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

MTD 734-1005-0942

No Longer Available WHEEL ASM - Dico Yellow (0942)

$

$

Not available

$

$

40

MTD 750-0490

Spacer 1.0" I.D. x 1.25" O.D. x 2.12" Lg.

$

$

Not available

41

MTD 732-0336

Deck Lift Assist Spring

$

$

Currently unavailable

42

MTD 711-0635

Spring Insert

$44.99

$

In Stock, only 1 left!

0

43

MTD 13095

Index Brkt.

$

$

Currently unavailable

44

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

45

MTD 736-0169

L-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

46

MTD 736-0235

Fl-Wash. 3/8" I.D. x 1-1/4"O.D.
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 14

0

47

MTD 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

48

MTD 710-0514

Hex Scr. 3/8-16 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

49

MTD 714-0142

Sq. Key 1/4" x 3.0" Lg.

$6.49

$

Usually ships in 3-6 days

0

50

MTD 710-0152

Hex Scr. 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, only 3 left!

0

51

MTD 736-0235

Fl-Wash. 3/8" I.D. x 1-1/4" O.D.
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 14

0

52

MTD 710-0502

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

53

MTD 710-0342

Hex Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 9

0

54

MTD 732-0267

Hex Nut 5/16-18 Thd.

$

$

Currently unavailable

55

MTD 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

56

MTD 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

57

MTD 13381

Battery Carrier Ass'y.

$

$

Currently unavailable

58

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

59

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

60

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

61

MTD 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

62

MTD 738-0481

Shoulder Bolt .50 Dia. x 2.625" Lg.
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

63

MTD 736-0232

Wave Wash.

$4.99

$

In Stock, Qty 12

0

64

MTD 13146

Engine Belt Guard Ass'y.

$

$

Currently unavailable

65

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

66

MTD 13148

Engine Belt Guard Ass'y.

Note: (Trans.)

$

$

Currently unavailable

67

MTD 747-0273

Belt Guard Scr.

$

$

Currently unavailable

68

MTD 13149

Engine Belt Guard Ass'y.

$

$

Currently unavailable

69

MTD 712-0239

Hex Cent. L-Nut 5/16-24 Thd.

$5.99

$

In Stock, Qty 20+

0

70

MTD 710-0459

Hex Scr. 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

71

MTD 736-0217

L-Wash. 3/8" Scr. H.D.

$4.49

$

In Stock, Qty 8

0

72

MTD 736-0235

Fl-Wash. 3/8" Dia.
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 14

0

73

MTD 756-0310

Engine Pulley

$

$

Not available

74

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 16

0

76

MTD 714-0118

Sq. Key 1/4" x 1/4" x 1.50" Lg.

$6.99

$

In Stock, only 4 left!

0

77

MTD 13380

Battery Carrier Support Brkt.

$

$

Currently unavailable

78

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

MTD 731-0556

Hub Cap

Note: (Not Shown)

$4.99

$

In Stock, only 4 left!

0

79

MTD 13540

Mount Brkt.

$

$

Currently unavailable

80

MTD 722-0150

Engine Mount

$

$

Not available
