145-918-000 - MTD Garden Tractor (1985) Front PTO Kit Parts Diagram

Garden Tractor

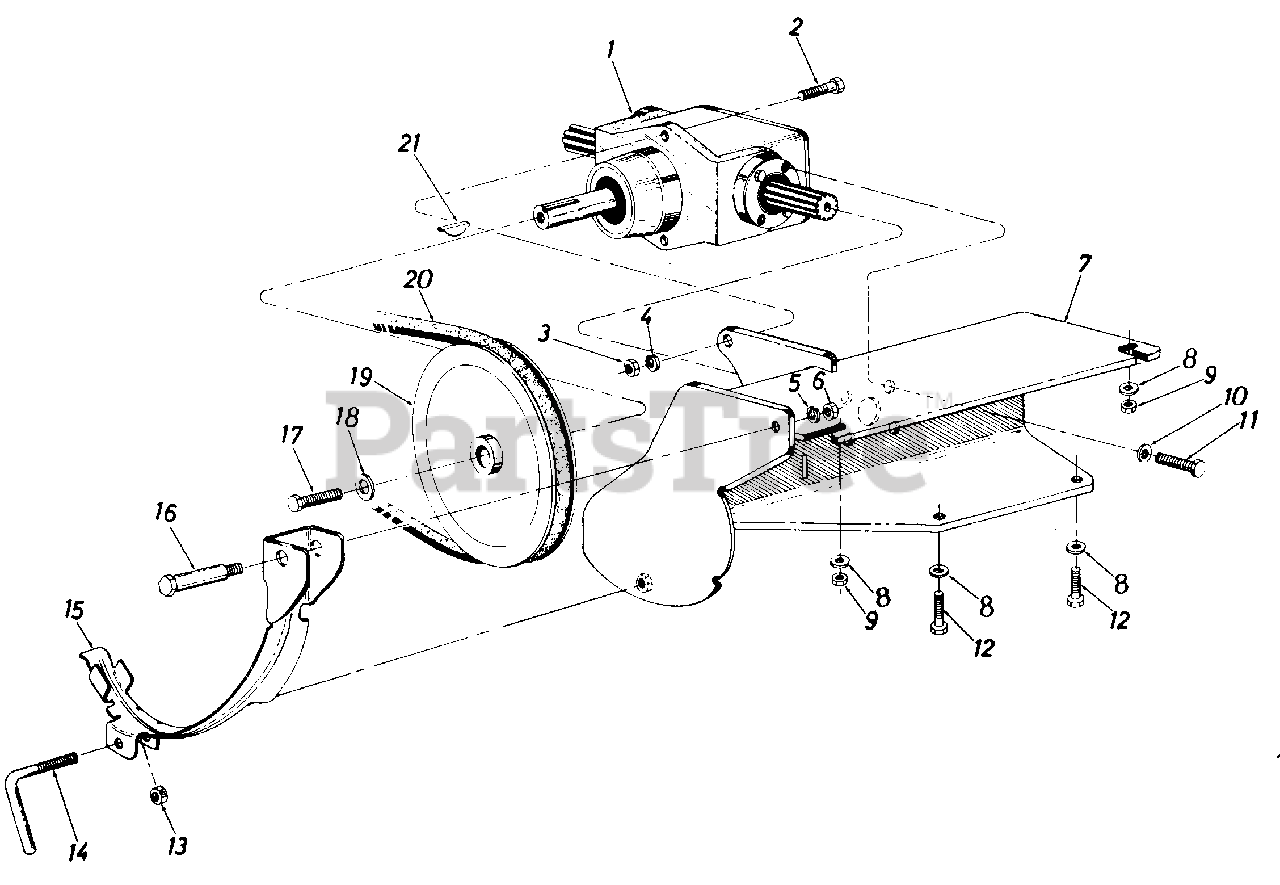

Front PTO Kit Parts Diagram

  • Title

1

"T" Drive Right Angle Ass'y.

$

$

Not available

2

MTD 710-0514

Hex Scr. 3/8-16 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

4

MTD 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

5

MTD 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

7

MTD 13390

PTO Support Brkt. Ass'y.

$

$

Currently unavailable

8

MTD 736-0105

Bell-Wash.

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

10

MTD 736-0498

Internal L-Wash. 1/4" I.D.

$4.49

$

Usually ships in 3-6 days

0

11

MTD 710-0722

Hex Scr. 1/4-20 x 1.125" Lg.
(Superseded to 710-0106)

$3.99

$

In Stock, only 2 left!

0

12

MTD 710-0514

Hex Scr. 3/8-16 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

14

MTD 747-0221

PTO Locking Pin

$

$

Not available

15

MTD 13388

PTO Belt Guard

$

$

Currently unavailable

16

MTD 738-0146

Shld. Bolt .50" Dia. x 1.34" Lg.

$

$

Not available

17

MTD 710-0118

Hex Scr. 5/16-18 x .75" Lg. (Grade 5)
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 756-0282

PTO Pulley 7.00" O.D.

$

$

Currently unavailable

20

MTD 754-0229

"V"-Belt .50" x 52" Lg.
(Superseded to 954-0229)

$59.99

$

Usually ships in 3-6 days

0

21

MTD 714-0126

#9 Hi-Pro Key 3/16 x 3/4"

$4.99

$

In Stock, Qty 18

0
