145-842-190 - White Outdoor Garden Tractor, 18hp (1985) Frame Assembly Parts Diagram

Garden Tractor, 18hp

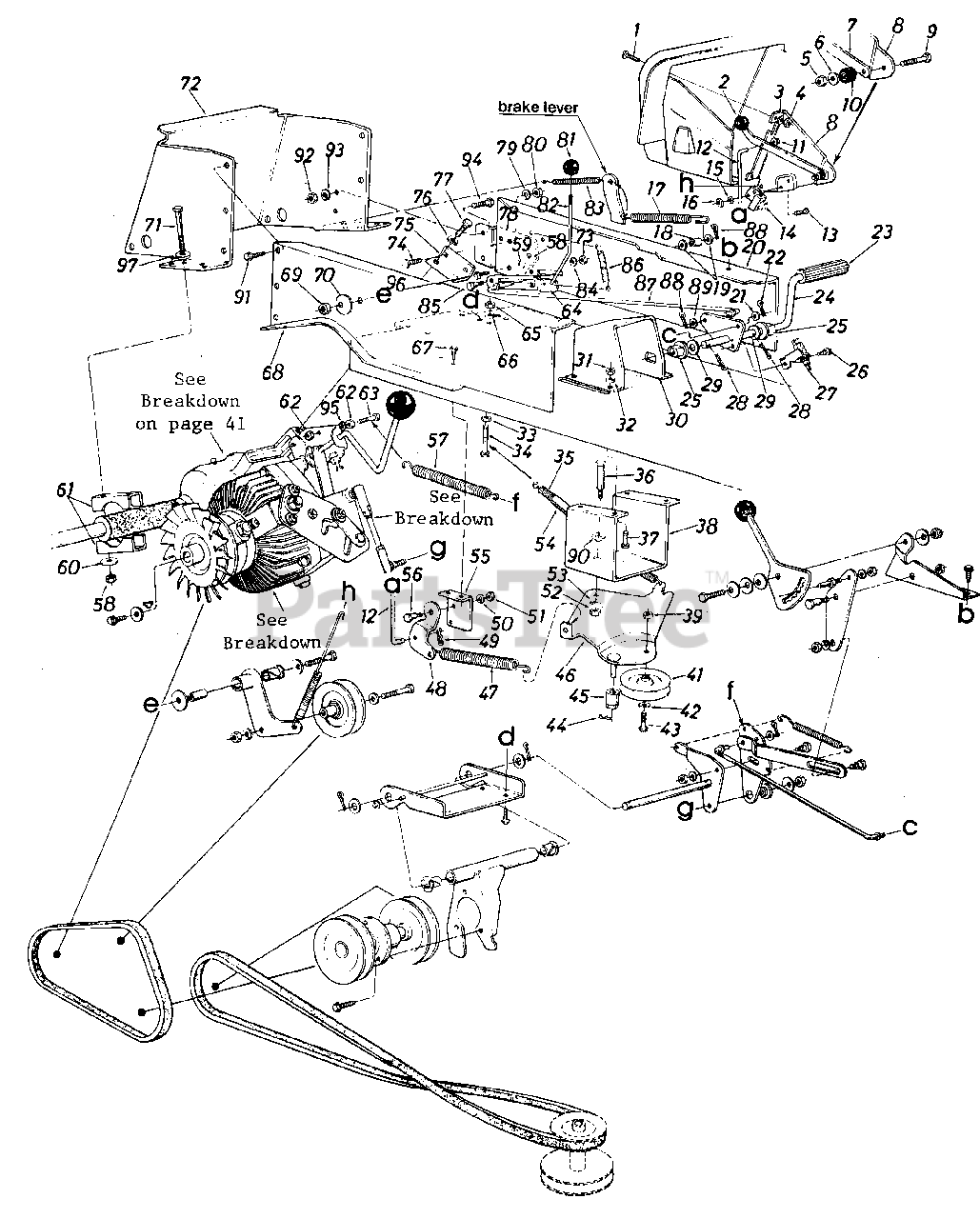

Frame Assembly Parts Diagram

  • Title

1

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

2

MTD 920-0232

Knob Blade Clutch

$10.99

$

In Stock, Qty 10

0

4

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

5

MTD 912-0107

Hex Cent. L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

6

MTD 736-0173

Fl-Wash. 1/4" I.D. x .75" O.D.

$4.49

$

In Stock, Qty 20+

0

7

MTD 747-0513

PTO Lever

Note: NLA

$

$

Not available

8

MTD 13950

Deck Clutch Control Brkt.

Note: NLA

$

$

Not available

9

MTD 710-0106

Hex Bolt 1/4-20 x .75" Lg.*

$3.99

$

In Stock, Qty 12

0

10

MTD 735-0126A

Rubber Wash. .33" I.D. x .87" O.D.

$

$

Not available

11

MTD 926-0106

Push Cap 1/4" Rod
(Superseded to 726-0106)

$

$

Not available

12

MTD 747-0307

Deck Control Rod

$47.99

$

In Stock, only 1 left!

0

13

MTD 710-0473

Truss Mach. Scr. #10-24 x .50" Lg.*

$4.49

$

In Stock, only 2 left!

0

14

MTD 925-0465A

Safety Switch

$30.99

$

In Stock, only 1 left!

0

15

MTD 936-0147

Ext. L-Wash. #10 Scr.

$3.49

$

Usually ships in 3-6 days

0

16

MTD 912-0121

Hex Nut #10-24 Thd.*
(Superseded to 712-0121)

$4.49

$

In Stock, Qty 20+

0

17

MTD 732-0475

Extension Spring .75" O.Dx 5.56" Lg.

Note: NLA

$

$

Currently unavailable

18

MTD 750-0497

Spacer.375" I.D. x .625" O.D. x .445 " Lg. .

$10.99

$

Usually ships in 3-6 days

0

19

MTD 936-0267

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

20

MTD 13847

Side Panel Upper Frame L. H .

Note: NLA

$

$

Currently unavailable

21

MTD 936-0267

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

22

MTD 914-0507

Cotter Pin 3/32" Dia. x .75" Lg.*

$4.49

$

In Stock, Qty 17

0

23

MTD 735-0239

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

24

MTD 16164

Foot Pedal Brkt. Ass'y

Note: NLA

$

$

Currently unavailable

25

MTD 948-0209

Flange Brg. .630" I.D. x 1.25" O.D.

$22.99

$

Usually ships in 3-6 days

0

26

MTD 710-0599

Hex Wash. Hd. S-Tap Scr1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 925-0268

Safety Switch

$39.99

$

Usually ships in 3-6 days

0

28

MTD 914-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

29

MTD 736-0187

Fl-Wash. .640" I.D. x .24" O.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 12850

Steering Gear Support Ass'y.

Note: NLA

$

$

Not available

31

MTD 912-0267

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

33

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

In Stock, only 1 left!

0

34

MTD 710-0510

Hex Bolt 1/4-20 x 2.0" Lg.*

$11.99

$

In Stock, only 1 left!

0

35

MTD 732-0308A

Extension Spring .50" O.Dx 6.37" Lg.

$11.99

$

In Stock, only 2 left!

0

36

MTD 938-0155

Shld. Bolt 7/16" Dia. x .16"

$6.99

$

Usually ships in 3-6 days

0

37

MTD 710-0376

Hex Bolt 5/16-18 x 1.00"*

$3.99

$

In Stock, Qty 20+

0

38

MTD 13826

Idler Mtg. Brkt. Deck

Note: NLA

$

$

Not available

39

MTD 912-0181

Hex L-Nut 3/8-16 Thd.
(Superseded to 712-0181)

$

$

Not available

41

MTD 756-0487

V-ldler Pulley

$48.99

$

In Stock, only 1 left!

0

42

MTD 936-0300

Fl-Wash. 3/8" I.D.
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

43

MTD 710-3005

Hex Bolt 3/8-16 x 1.75" Lg.*

$3.99

$

In Stock, Qty 20+

0

44

MTD 914-0104

Cotter Pin 5/16" Rod
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

45

MTD 748-0287

Spacer

Note: NLA

$

$

Currently unavailable

46

MTD 13893

Idler Brkt. Ass'y.

Note: NLA

$

$

Currently unavailable

47

MTD 932-0478

Extension Spring Deck Control

$12.99

$

In Stock, Qty 10

0

48

MTD 13887A

Deck Control Pivot Brkt.

$

$

Not available

49

MTD 914-0104

Cotter Pin 5/16" Rod
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

50

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

51

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

53

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

54

MTD 731-0757-4

Convoluted Conduit .50" I.D. x 4" Lg.

$15.99

$

In Stock, only 2 left!

0

55

MTD 13833

Parking Brake Cam Mtg Brkt.

Note: NLA

$

$

Not available

56

MTD 938-0155

Shld. Bolt 7/16" Dia. x .16" Lg.

$6.99

$

Usually ships in 3-6 days

0

57

MTD 932-0384

Extension Spring

$14.99

$

In Stock, Qty 11

0

58

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

59

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

60

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 20+

0

61

MTD 13892

Rear Axle Brkt.

Note: NLA

$

$

Not available

62

MTD 912-3057

Hex Nut 5/16-24 Thd.*

$6.99

$

In Stock, only 2 left!

0

63

MTD 710-0624

Hex Self-Tap Scr. 5/16-24 x 1 .5"

$5.99

$

Usually ships in 3-6 days

0

64

MTD 16170

Parking Brake Cam

Note: NLA

$

$

Currently unavailable

65

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

In Stock, only 1 left!

0

66

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 9

0

67

MTD 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

68

MTD 16150

Side Panel Upper Frame R.H.

Note: NLA

$

$

Currently unavailable

69

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

70

MTD 936-0227

Fl-Wash. .39" I.D. x 1.5" O.D.
(Superseded to 736-0227)

$

$

Not available

71

MTD 710-0316

Hex Bolt 3/8-16 x 3.50" Lg.*

Note: NLA

$

$

Not available

72

MTD 13813

Hitch Plate

Note: NLA

$

$

Not available

73

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

74

MTD 710-0617

Rib Neck Scr. 3/8-24 x 1.0"

$4.49

$

Usually ships in 3-6 days

0

75

MTD 16152

Mounting Brkt. Transaxle

Note: NLA

$

$

Currently unavailable

76

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

77

MTD 710-0514

Hex Bolt 3/8-16 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

78

MTD 16169

Reinforcement Plate Frame

Note: NLA

$

$

Not available

79

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

80

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

81

MTD 720-0166

Gear Shift Knob

$

$

Not available

82

MTD 747-0672

Parking Brake Link

Note: NLA

$

$

Not available

83

MTD 932-0409

Extension Spring .38" O.D, x 3.18" Lg.

$

$

Not available

84

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

85

MTD 738-0147

Shld. Bolt .500" Dia. x .170

Note: NLA

$

$

Not available

86

MTD 932-0409

Extension Spring .38" O.D, x 3.18" Lg.

$

$

Not available

87

MTD 747-0505

Rod Brake .38" Dia. x 19.3" Lg.

Note: NLA

$

$

Not available

88

MTD 914-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 17

0

89

MTD 936-0267

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

90

MTD 936-0141

Wave Wash.

$6.99

$

In Stock, only 2 left!

0

91

MTD 710-0726

Hex AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

92

MTD 912-3057

Hex Nut 5/16-24 Thd.*

$6.99

$

In Stock, only 2 left!

0

93

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

94

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.*

$4.49

$

In Stock, Qty 15

0

95

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

96

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.*

$4.49

$

In Stock, Qty 14

0

97

MTD 736-0262

Fl-Wash. .385" I.D. x .87"

$3.99

$

In Stock, Qty 20+

0
