145-842-190 - White Outdoor Garden Tractor, 18hp (1985) Drive Assembly Parts Diagram

Garden Tractor, 18hp

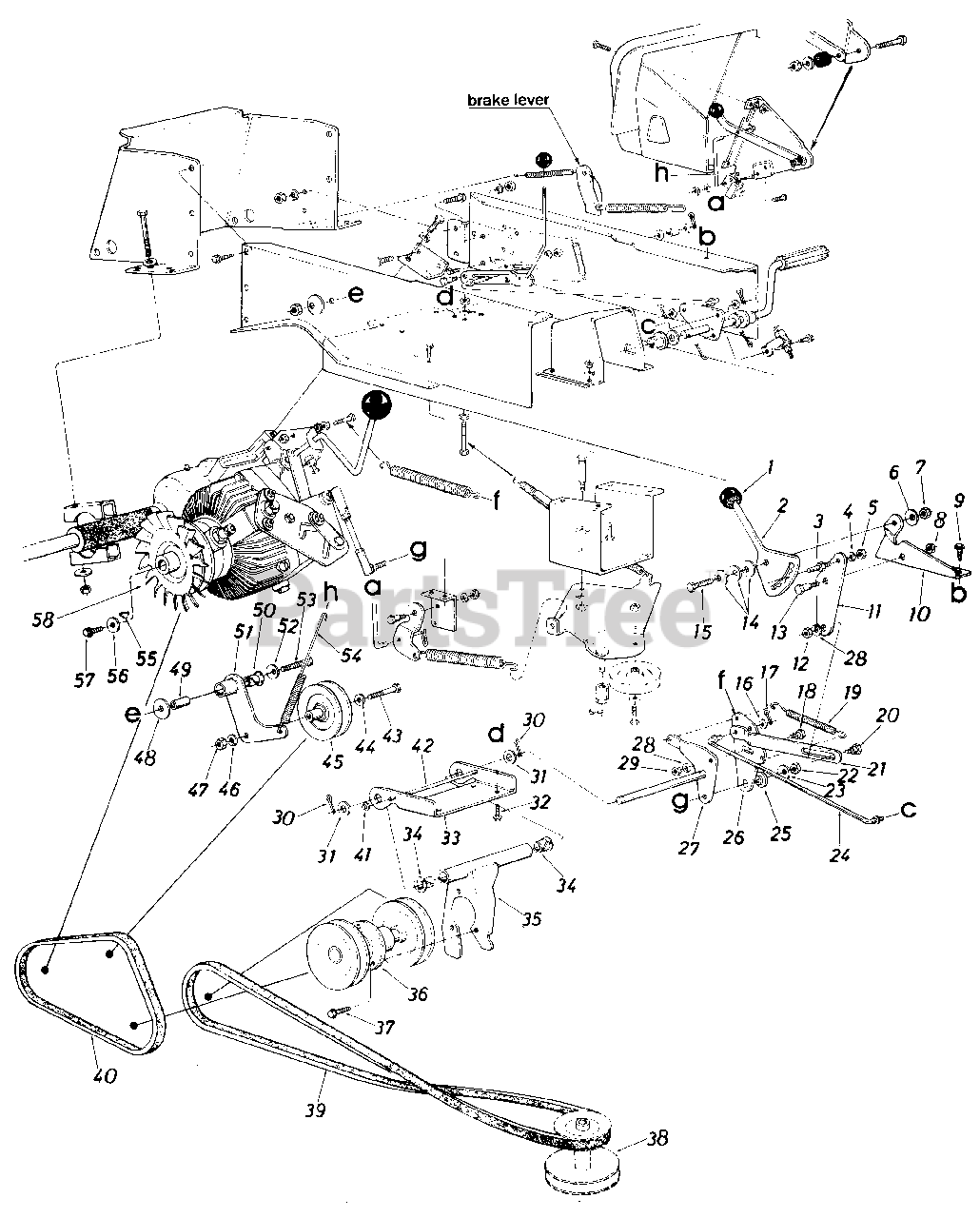

Drive Assembly Parts Diagram

  • Title

1

MTD 920-0232

Gear Shift Knob

$10.99

$

In Stock, only 1 left!

0

2

MTD 16154

Speed Selector Cam

Note: NLA

$

$

Currently unavailable

3

MTD 711-0778

Hex Stud .250" Dia. x .62"

Note: NLA

$

$

Not available

4

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 11

0

5

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

Usually ships in 3-6 days

0

6

MTD 936-0219

Bell-Wash. .400" I.D. x 1.13" O.D.

$4.49

$

Usually ships in 3-6 days

0

7

MTD 912-0116

Hex Ins. L-Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

8

MTD 912-0181

Hex Top L-Nut 3/8-16 Thd.
(Superseded to 712-0181)

$

$

Not available

9

MTD 710-0642

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

10

MTD 16155

Speed Selector Mtg. Brkt

Note: NLA

$

$

Currently unavailable

11

MTD 16156

Speed Selector Transfer Brkt

Note: NLA

$

$

Currently unavailable

12

MTD 912-0267

Hex Nut 5/16-18 Thd."*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 738-0147

Shld. Bolt .500" Dia. x .170

Note: NLA

$

$

Not available

14

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 16

0

15

MTD 710-1039

Hex Bolt 3/8-24 x 1.00" Lg.*

$4.49

$

In Stock, Qty 5

0

16

MTD 936-0267

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

17

MTD 914-0507

Cotter Pin 3/32" Dia. x .75" Lg.*

$4.49

$

In Stock, Qty 17

0

18

MTD 938-0140

Shld. Bolt .437" Dia. x .180
(Superseded to 738-0140)

$

$

Not available

19

MTD 732-0433

Extension Spring .50" Dia. x 2.75" Lg.

$

$

Not available

20

MTD 938-0140

Shld. Bolt .437" Dia. x .180
(Superseded to 738-0140)

$

$

Not available

21

MTD 16167

Speed Selector Link

Note: NLA

$

$

Currently unavailable

22

MTD 712-0347

Hex Top L-Nut 3/8-24 Thd.

Note: NLA

$

$

Currently unavailable

23

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 16

0

24

MTD 747-0504

Rod Speed Control .312" Dia.

Note: NLA

$

$

Not available

25

MTD 938-0347

Shld. Spacer .625" I.D.

$10.99

$

Usually ships in 3-6 days

0

26

MTD 16163

Speed Cont. Transfer Swivel Brkt

Note: NLA

$

$

Currently unavailable

27

MTD 16161

Speed Control Transfer Ass'y

Note: NLA

$

$

Not available

28

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

29

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

MTD 914-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.*
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

31

MTD 736-0187

Fl-Wash. .69" I.D. x 1.24" O.D.

$4.49

$

In Stock, Qty 20+

0

32

MTD 710-0599

Hex Wash S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 13822

Idler Mtg. Brkt.

Note: NLA

$

$

Not available

34

MTD 941-0591

Flanged Nyliner Brg. .376 I.D. x .437
(Superseded to 741-0591)

$

$

Not available

35

MTD 16174

Mounting Brkt. Ass'y

Note: NLA

$

$

Not available

36

MTD 756-0324

Jack Shaft Ass'y.

$

$

Not available

37

MTD 910-0198

Hex Sems Bolt 5/16-18 x .75" Lg.*

$

$

Not available

38

MTD 756-0328

Engine Pulley 47.5" I.D. x 5.56" O.D.

$

$

Not available

39

MTD 954-0245

V-Belt 1/2" x 59.0" Lg.

$

$

Not available

40

MTD 954-0177

V-Belt 1/2 " x 32.0 " Lg.

$

$

Not available

41

MTD 726-0111

Push Cap

$

$

Not available

42

MTD 747-0655

Rod 3/16" Dia. x 7.12" Lg.

Note: NLA

$

$

Currently unavailable

43

MTD 710-0459A

Hex Bolt 3/8-24 x 1.50" Lg.

$6.99

$

In Stock, Qty 8

0

44

MTD 936-0267

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

45

MTD 756-0487

Idler Pulley 4.0" O.D. x 5/8"-"V"

$48.99

$

In Stock, only 1 left!

0

46

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

47

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

48

MTD 736-0105

Bell-Wash. .40" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

49

MTD 748-0303

Spacer.38" I.D. x .62" O.D. x 1.87" Lg.

Note: NLA

$

$

Not available

50

MTD 741-0257

Flanged Nyliner Brg.

Note: NLA

$

$

Not available

51

MTD 16171

Idler Pivot Brkt. Ass'y

Note: NLA

$

$

Currently unavailable

52

MTD 936-0267

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

53

MTD 710-0151

Hex Bolt 3/8-24 x 2.00" Lg.

$7.49

$

In Stock, only 3 left!

0

54

MTD 732-0185A

Extension Spring .56" O.D. x 7.75" Lg.

$

$

Not available

55

MTD 914-0126

#9 Hi-Pro Key .316" x .75" Dia.
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 19

0

56

MTD 936-0176

Fl-Wash. .25" I.D. x .938" O.D.
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 6

0

57

MTD 710-0642

Hex Wash. Hd. TT-Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

58

MTD 756-0455

Trans. Pulley and Fan Ass'y.

Note: NLA

$

$

Currently unavailable
