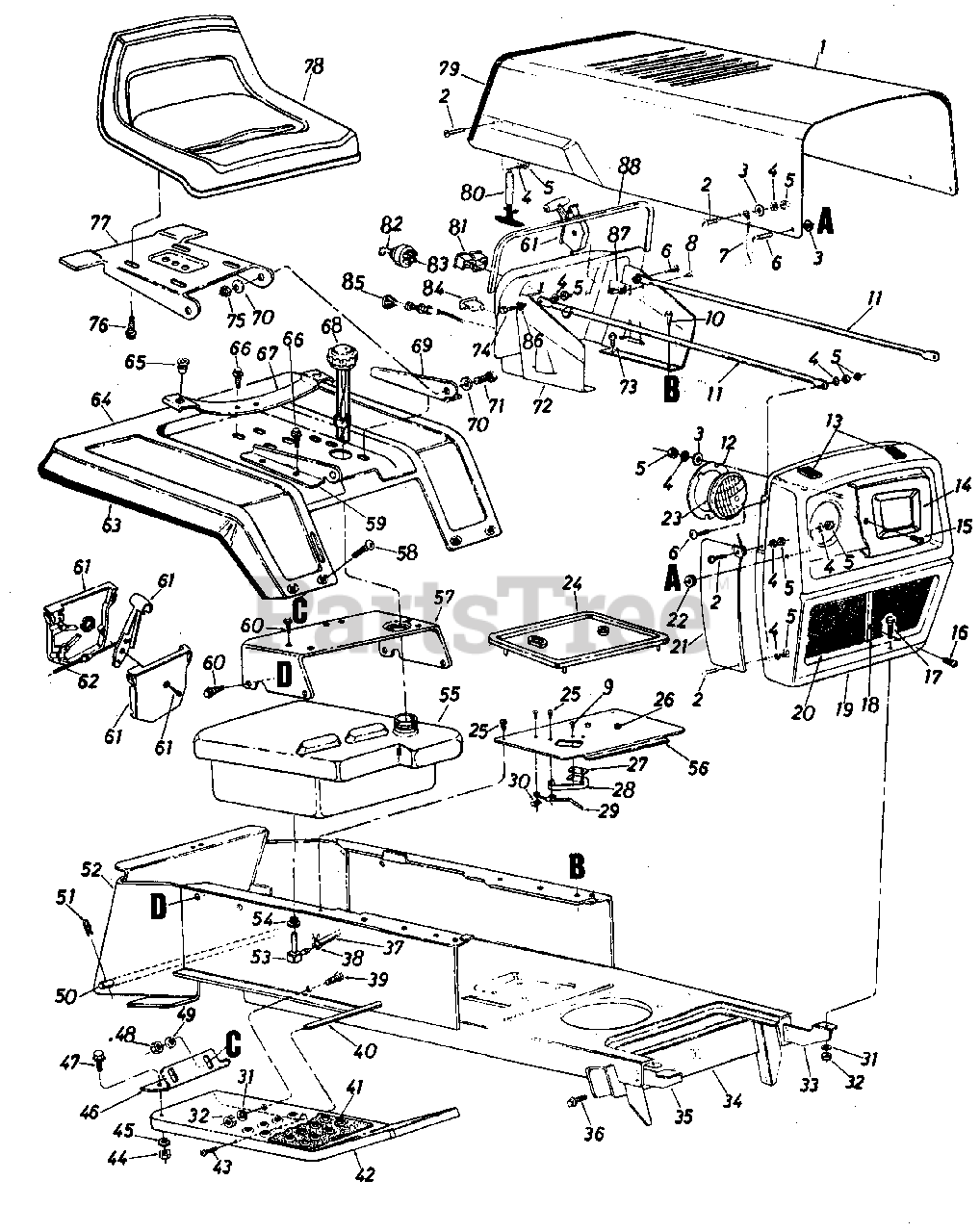

145-842-190 - White Outdoor Garden Tractor, 18hp (1985) Chassis Assembly Parts Diagram

Garden Tractor, 18hp

Chassis Assembly Parts Diagram

  • Title

1

MTD 13808

Hood

Note: NLA

Variations

MTD 13808-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 13808-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

2

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

3

MTD 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, only 4 left!

0

4

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 11

0

5

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

Usually ships in 3-6 days

0

6

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

7

MTD 727-0199

Hood Stop

Note: NLA

$

$

Not available

8

MTD 710-0351

Hex Tap Scr. #10 x .50" Lg.*

$4.49

$

In Stock, only 2 left!

0

9

MTD 712-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg.

Note: NLA

$

$

Currently unavailable

10

MTD 710-0599

Hex Thd. Rolling Scr. 1/4" x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

11

MTD 749-0651

Grille Positioning Rod

$

$

Not available

12

MTD 09960

Head Lamp Retainer

Note: NLA

$

$

Not available

13

MTD 722-0135

PVC Foam Strip 1/2" x 1.00 " x 2.00 " Lg. .

Note: NLA

$

$

Not available

14

MTD 731-0465

Head Lamp Bezel

$

$

Not available

15

MTD 710-0148

Truss Mach. Scr. #10-24 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

16

MTD 710-0425

Truss Mach. Scr. #10-24 x .62" Lg.

$4.99

$

Usually ships in 3-6 days

0

17

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

18

MTD 723-0347

Center Moulding

Note: NLA

$

$

Currently unavailable

19

MTD 13800

Grille Chrome

Note: NLA

$

$

Currently unavailable

20

MTD 13730

Grille Insert Screen

Note: NLA

$

$

Not available

21

MTD 14748

Grille Side Panel R.H.

Note: NLA

$

$

Currently unavailable

21

MTD 14749

Grille Side Panel L.H.

Note: NLA

$

$

Currently unavailable

22

MTD 735-0144

Rubber Wash. .50" I.D. x 1.0" O.D. .25 Thk.

Note: NLA

$

$

Not available

23

MTD 925-0222

Head Lamp

$58.99

$

In Stock, Qty 5

0

24

MTD 731-0730

Trans. Cover-Bezel

Note: NLA

$

$

Not available

25

MTD 710-0351

Truss Hd. Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

26

MTD 731-0405

Snap Bushing

$

$

Not available

27

MTD 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 9

0

28

MTD 753-0579

Switch Spring

$

$

Not available

29

MTD 732-0476

Shift Lever Spring

Note: NLA

$

$

Not available

30

MTD 712-0147

Speed Nut #10-24 U-Type

$6.99

$

Usually ships in 3-6 days

0

31

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

32

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

33

MTD 13863

Grille Mount Brkt. L.H.

Note: NLA

$

$

Not available

34

MTD 13820

Lower Frame Ass'y.

Note: NLA

$

$

Not available

35

MTD 13862

Grille Mount Brkt. R.H.

Note: NLA

$

$

Not available

36

MTD 710-0726

Hex Thd. Rolling Scr. 5/16" x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

37

MTD 751-10349-16

Gas Line 46" Lg.

$19.99

$

In Stock, Qty 11

0

38

MTD 726-0207

Hose Clamp 3/8 "

Note: NLA

$

$

Not available

39

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

40

MTD 738-0435

Running Board Rod

Note: NLA

$

$

Not available

41

MTD 723-0360

Foot Pad

Note: NLA

$

$

Not available

42

MTD 13828

Running Board R.H.

Note: NLA

$

$

Not available

42

MTD 13827

Running Board L.H.

Note: NLA

$

$

Not available

43

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lq.

$4.99

$

In Stock, only 2 left!

0

44

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0242

Bell-Wash. .34" I.D. x .87 O.D.

$4.49

$

In Stock, Qty 20+

0

46

MTD 15846-0637

Fender Brkt. R.H.

$

$

Not available

46

MTD 15847

Fender Brkt. L.H.

Note: NLA

Variations

MTD 15847-0637

No Longer Available BRACKET-FE - POWDER BLACK (0637)

$

$

Not available

$

$

47

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

48

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

Usually ships in 3-6 days

0

49

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 11

0

50

MTD 738-0482

Hitch Rod

$

$

Not available

51

MTD 714-0147

Internal Cotter Pin

$4.99

$

In Stock, Qty 7

0

52

MTD 13813

Hitch Plate

Note: NLA

$

$

Not available

53

MTD 751-3054

90ø Nipple

Note: NLA

$

$

Currently unavailable

54

MTD 935-0149

Bushing

$2.99

$

In Stock, Qty 20+

0

55

MTD 751-0367

Fuel Tank

Note: NLA

$

$

Not available

56

MTD 16172

Trans. Cover

Note: NLA

$

$

Currently unavailable

57

MTD 15849

Seat Mounting Channel

Note: NLA

$

$

Not available

58

MTD 710-0167

Carriage Bolt 1/4-20 x .50" Lg.*
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

59

MTD 15802

Seat Bracket R.H.

Note: NLA

$

$

Not available

60

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

61

MTD 831-0796A

Throttle Control Box Ass'y.

$21.99

$

In Stock, only 2 left!

0

62

MTD 946-0503

Throttle Control Wire

$

$

Not available

63

MTD 731-0511

Trim Strip 81"

$3.99

$

Usually ships in 3-6 days

0

64

MTD 15886

Rear Fender

Note: NLA

Variations

MTD 15886-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

65

MTD 731-0555A

Grommet

$

$

Not available

66

MTD 710-0607

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

$6.99

$

In Stock, Qty 11

0

67

MTD 732-0431

Seat Spring

Note: NLA

$

$

Currently unavailable

68

MTD 751-0370

Gas Cap w/ Gauge

Note: NLA

$

$

Not available

69

MTD 15803

Seat Bracket L.H.

Note: NLA

$

$

Not available

70

MTD 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

71

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

72

MTD 16228

Dash Panel Ass'y.

Note: NLA

$

$

Currently unavailable

73

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

74

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

75

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 13

0

76

MTD 710-0623

Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

77

MTD 783-0039A

Seat Pivot Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0039A-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0648

Seat Pivot Bracket, Black - TECH GRAY (0648)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0665

Seat Pivot Bracket, Black - YARDMAN GREEN (0665)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

78

MTD 757-0308

Seat Ass'y.

Note: NLA

$

$

Currently unavailable

79

MTD 731-0511

Vinyl Moulding Strip 30"

$3.99

$

Usually ships in 3-6 days

0

80

MTD 723-0296

Hood Latch Ass'y.

$

$

Not available

81

MTD 925-0925

Ammeter

$31.99

$

Usually ships in 3-6 days

0

82

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

83

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 8

0

84

MTD 925-0634

Light Switch

$17.99

$

In Stock, Qty 5

0

85

MTD 746-0394

Choke Control Comp.

$

$

Not available

86

MTD 936-0222

External Wash. 1/4" I.D.
(Superseded to 736-0222)

$

$

Not available

87

MTD 753-0685

Circuit Breaker 8 Amp.

$

$

Not available

88

MTD 731-0511

Vinyl Moulding Strip 29"

$3.99

$

Usually ships in 3-6 days

0
