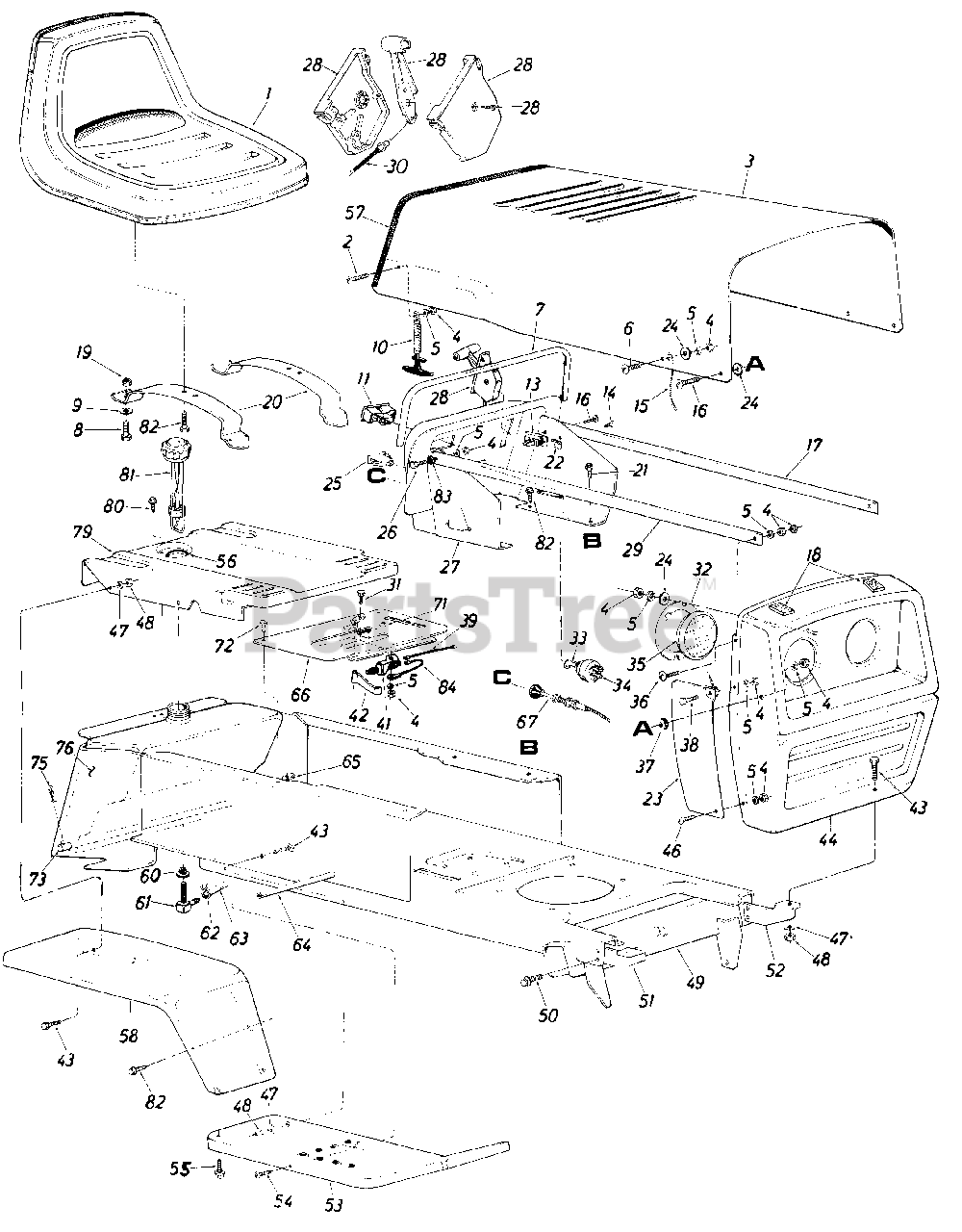

145-834-314 - Power Tech Garden Tractor (1985) Main Frame Parts Diagram

Garden Tractor

Main Frame Parts Diagram

  • Title

1

MTD 757-0308

Seat Assembly

$

$

Currently unavailable

2

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

3

MTD 13808

Hood

Variations

MTD 13808-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 13808-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

5

MTD 736-0329

L-Wash. 1/4" Scr.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

6

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

7

MTD 731-0511

Vinyl Molding Strip-29"

$3.99

$

Usually ships in 3-6 days

0

8

MTD 710-0689

Hex Nylon Scr. 1/2-13 x .75" Lg.

$6.99

$

Usually ships in 3-6 days

0

9

MTD 736-0192

Fl-Wash .50" I.D. x 1.00" O.D. x .090

$4.49

$

In Stock, Qty 18

0

10

MTD 723-0296

Hood Latch Ass'y.

$

$

Not available

11

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

13

MTD 725-0459

Circuit Breaker 8 Amp.
(Superseded to 753-0685)

$

$

Not available

14

MTD 710-0351

Hex Tap Scr. #10 x .50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

15

MTD 727-0199

Hood Stop

$

$

Not available

16

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75 " Lg. *
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

17

MTD 749-0220

Grille Positioning Rod

$

$

Not available

18

MTD 722-0135

PVC Foam Strip 1/2 x 1.00" x 2.00" Lg.

$

$

Not available

19

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

20

MTD 13123

Seat Spring

Variations

MTD 13123-0637

Seat Spring - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 710-0599

Hex Thd. Rolling Scr. 1/4" x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-0344

Speed Nut #10Z

$

$

Not available

23

MTD 14748

Grille Side Panel-R.H.

$

$

Currently unavailable

MTD 14749

Grille Side Panel-L.H.

Note: (Not Shown)

$

$

Currently unavailable

24

MTD 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

25

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

26

MTD 710-0166

Truss Hd. Scr. 1/4-20 x 1.00" Lg. *
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

27

MTD 16325

Dash Panel Ass'y.

$

$

Currently unavailable

28

MTD 831-0692

Throttle Control Box Comp.
(Superseded to 831-0796A)

$21.99

$

Usually ships in 3-6 days

0

29

MTD 749-0220

Grille Positioning Rod

$

$

Not available

30

MTD 746-0503

Throttle Control Cable
(Superseded to 946-0503)

Note: (16 and 18 H.P.)

$

$

Not available

MTD 746-0500

Throttle Control Cable
(Superseded to 946-0500)

Note: (11 H.P.)

$15.99

$

Usually ships in 3-6 days

0

31

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

32

MTD 09960

Head Lamp Retainer

$

$

Not available

33

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

34

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

35

MTD 725-0222

Head Lamp
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

36

MTD 710-0255

Truss Machine Scr. 1/4-20 x .75" Lg.*
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

37

MTD 735-0144

Rubber Wash. .50" I.D. x 1.00 O.D. x .25 Thk.

$

$

Not available

38

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

39

MTD 725-0764

Reverse Lockout Wire Harness

$

$

Currently unavailable

41

MTD 725-0268

Safety Switch
(Superseded to 925-0268)

$39.99

$

Usually ships in 3-6 days

0

42

MTD 732-0405

Switch Actuator Spring Lever

$

$

Currently unavailable

43

MTD 710-0118

Hex Scr. 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

44

MTD 13801

Grille Ass'y. (Painted)

$

$

Currently unavailable

MTD 14226

Grille Ass'y. (Chrome)

$

$

Currently unavailable

46

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

47

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

MTD 13820

Lower Frame Ass'y.

$

$

Not available

50

MTD 710-0726

Hex Thd. Rolling Scr. 5/16" x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

51

MTD 13862

Grille Mount Brkt.-R.H.

$

$

Not available

52

MTD 13863

Grille Mount Brkt.-L.H.

$

$

Not available

53

MTD 13828

Running Board-R.H.

$

$

Not available

MTD 13827

Running Board-L.H.

Note: (Not Shown)

$

$

Not available

54

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.*

$4.99

$

In Stock, only 2 left!

0

55

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

56

MTD 735-0179

Grommet

Note: (Gas Tank Neck)

$

$

Currently unavailable

57

MTD 731-0511

Vinyl Moulding Strip-80n

$3.99

$

Usually ships in 3-6 days

0

58

MTD 13810

Fender Ass'y.-R.H.

$

$

Currently unavailable

MTD 13809

Fender Ass'y.-L.H.

Note: (Not Shown)

$

$

Not available

60

MTD 735-0149

Bushing
(Superseded to 935-0149)

Note: (Gas Tank)

$2.99

$

In Stock, Qty 20+

0

61

MTD 751-3054

90ø Nipple

$

$

Currently unavailable

62

MTD 726-0207

Hose Clamp 3/8"

$

$

Not available

63

MTD 751-0173

Gas Line 46" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

64

MTD 738-0435

Running Board Rod

$

$

Not available

65

MTD 712-0147

Speed Nut #10-24

$6.99

$

Usually ships in 3-6 days

0

66

MTD 14466

Transmission Cover Ass'y.

$

$

Currently unavailable

67

MTD 746-0394

Choke Control Comp.

Note: (16 and 18 H.P.)

$

$

Not available

71

MTD 731-0405

Snap Bushing

$

$

Not available

72

MTD 710-0351

Truss Hd. Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

73

MTD 738-0482

Hitch Rod

$

$

Not available

75

MTD 714-0147

Internal Cotter Pin

$4.99

$

In Stock, Qty 6

0

76

MTD 751-0259

Gas Tank

$

$

Not available

79

MTD 13814

Seat Plate

$

$

Not available

80

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

81

MTD 723-0346

Gas Gauge
(Superseded to 723-0346A)

$40.99

$

In Stock, only 1 left!

0

82

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

83

MTD 736-0222

External Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

84

MTD 725-0765

Electric Wire

$

$

Not available
