145-822-190 - White Outdoor Garden Tractor, 16hp (1985) Transaxle Peerless Parts Diagram

Garden Tractor, 16hp

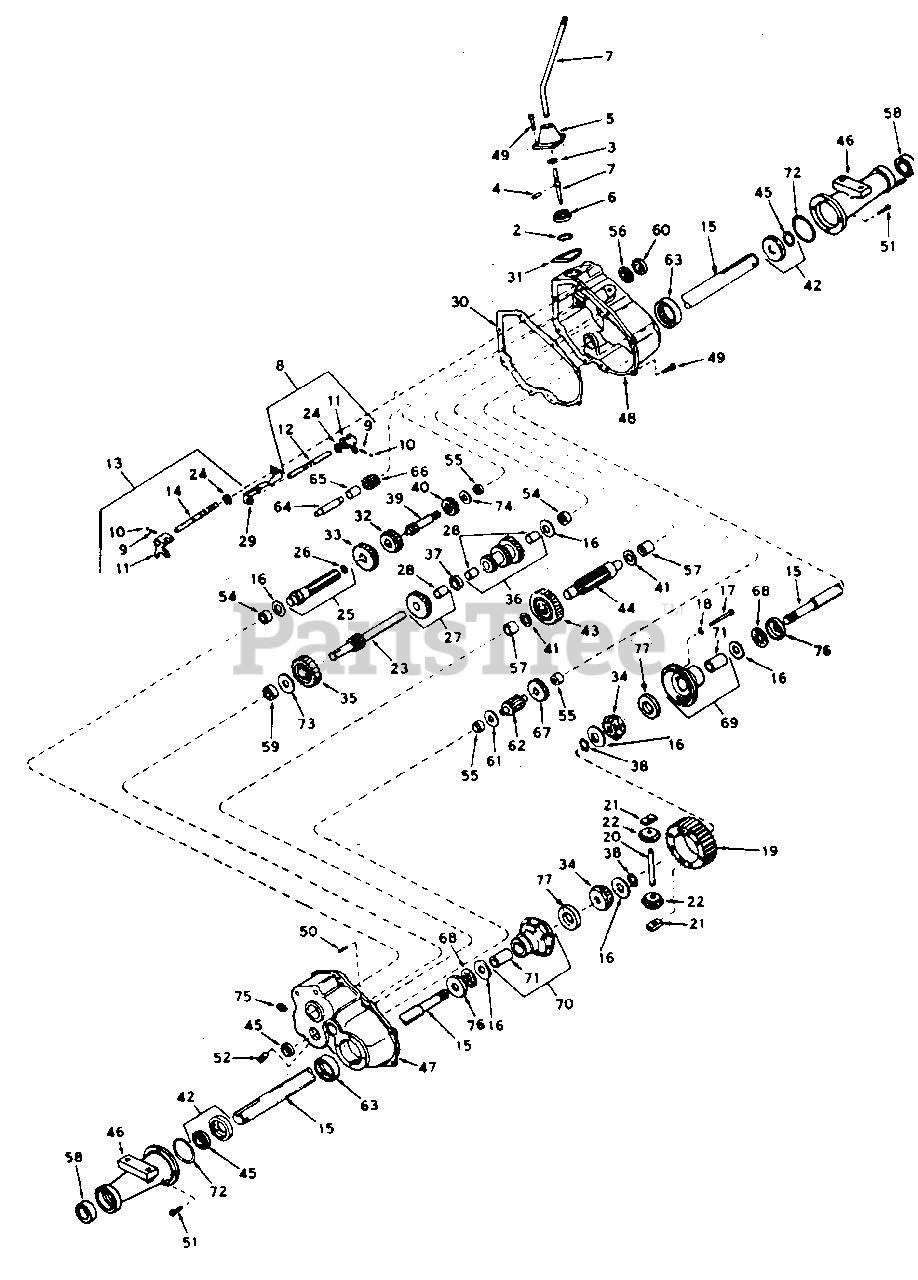

Transaxle Peerless Parts Diagram

  • Title

2

PE-792016

Ring, Snap

$

$

Not available

3

PE-792001

Ring, Quad

$

$

Not available

4

PE-792049

Pin, Roll

$

$

Not available

5

PE-784093

Housing, Shift Lever

$

$

Not available

6

PE-784094

Keeper, Shift Lever

$

$

Not available

7

PE-784308

Lever, Shift

$

$

Not available

8

PE-784054

Rod Ass'y., Shift

Note: (Incl. Nos 9 thru 12 and 24)

$

$

Not available

9

PE-792003

Spring

$

$

Not available

10

PE-792004

Ball, Steel

$

$

Not available

11

MTD PE-784004

Fork, Shifter

$

$

Not available

12

PE-784055

Rod Shifter

Note: (3rd and 4th)

$

$

Not available

13

PE-784056

Rod Ass'y . Shift

Note: (Incl. Nos 9, 10, 11, 14 and 24)

$

$

Not available

14

PE-784057

Rod, Shifter

Note: (Low)

$

$

Not available

15

PE-774433

Axle (18-11/32" Long)

$

$

Not available

16

PE-780042

Washer, Thrust

$

$

Not available

17

PE-792005

Scr., Hex Hd., 1/4-20 x 21/2

$

$

Not available

18

PE-792006

Lock Washer, 1/4"

$

$

Not available

19

PE-778033A

Gear, Ring

$

$

Not available

20

PE-786019

Pin, Drive

$

$

Not available

21

PE-786027

Block, Drive

$

$

Not available

22

PE-778094

Pinion, Bevel

$

$

Not available

23

PE-776029A

Shaft and Gear, Brake

$

$

Not available

24

PE-792017

Ring, Snap

$

$

Not available

25

PE-776189A

Shaft and Bearing Ass'y. Pinion

Note: (Incl. No. 26)

$

$

Not available

26

PE-780018

Bearing, Needle

$

$

Not available

27

PE-778034

Gear Cluster Ass'y.

Note: (Incl No. 28

$

$

Not available

28

PE-780053

Bushing

$

$

Not available

29

PE-784074

Stop, Shifter

$

$

Not available

30

MTD PE-788023

Gasket, Case and Cover
(Superseded to TC-788023)

$4.49

$

Usually ships in 3-12 days

0

31

MTD PE-788022

Gasket, Shifter Lever Housing

$

$

Not available

32

MTD PE-778019A

Gear, Shifting

Note: (3rd and 4th)

$

$

Not available

33

MTD PE-778020

Gear, Shifting

Note: (1st, 2nd and Rev.)

$

$

Not available

34

PE-778095

Gear, Bevel

$

$

Not available

35

PE-778037

Gear, Idler

$

$

Not available

36

MTD PE-778035A

Gear Cluster Ass'y.

Note: (Incl. No 28)

$

$

Not available

37

PE-786024

Spacer

$

$

Not available

38

PE-792018

Ring, Snap

$

$

Not available

39

PE-776175

Shaft, Input

$

$

Not available

40

PE-778024A

Spur Gear, Input Shaft

$

$

Not available

41

PE-780052

Washer, Thrust

$

$

Not available

42

PE-788021

Seal and Retainer Ass'y. Oil

Note: (Incl. No. 45)

$

$

Not available

43

PE-778036

Gear, Output

$

$

Not available

44

PE-776028

Pinion, Output

$

$

Not available

45

MTD PE-788008

Seal, Oil
(Superseded to TC-788008)

$8.49

$

In Stock, only 2 left!

0

46

PE-782025

Housing, Axle

$

$

Not available

47

PE-772016A

Cover Ass'y., Transaxle

Note: (Incl. Nos. 54, 55, 57, 59 0 and 63)

$

$

Not available

48

PE-770012

Case Ass'y., Transaxle

Note: (Incl. Nos. 54, 55, 57 and 63)

$

$

Not available

49

PE-792007

Screw, Socket Hd., 1/4-20 x 314

$

$

Not available

50

PE-786026

Pin, Dowel

$

$

Not available

51

PE-792037

Screw, Hex Hd. Sems 5/16-18 x 1

$

$

Not available

52

PE-792019

Plug, Magnetic Drain

$

$

Not available

54

PE-780049

Bearing, Needle

$

$

Not available

55

PE-530105

Bearing, Needle

$

$

Not available

56

PE-780024

Bearing, Ball

$

$

Not available

57

PE-780047

Bearing, Needle

$

$

Not available

58

MTD PE-780050

Bearing, Ball

$

$

Not available

59

PE-780046

Bearing, Needle

$

$

Not available

60

PE-788025

Seal, Oil

$

$

Not available

61

MTD PE-780001

Washer

$

$

Not available

62

MTD PE-776031

Shaft and Pinion

$

$

Not available

63

PE-780048

Bearing, Needle

$

$

Not available

64

PE-776030

Shaft, Reverse Idler

$

$

Not available

65

PE-786025

Spacer, Reverse Idler

$

$

Not available

66

PE-778016

Idler, Reverse

$

$

Not available

67

PE-778038

Spur Gear (22 Teeth)

$

$

Not available

68

PE-780039

Bearing, Thrust

$

$

Not available

69

PE-774072A

Carrier Ass'y., Differential

Note: (Incl. No. 71)

$

$

Not available

70

PE-774071A

Carrier Ass'y, Differential

Note: (Incl. No. 71)

$

$

Not available

71

PE-780041

Bushing

$

$

Not available

72

PE-788024

"O" Ring

$

$

Not available

73

PE-780007

Washer, Thrust

$

$

Not available

74

PE-780051

Washer, Thrust

$

$

Not available

75

PE-792010

Plug, Pipe

$

$

Not available

76

PE-780075

Race, Thrust

$

$

Not available

77

PE-780107

Washer

$

$

Not available
