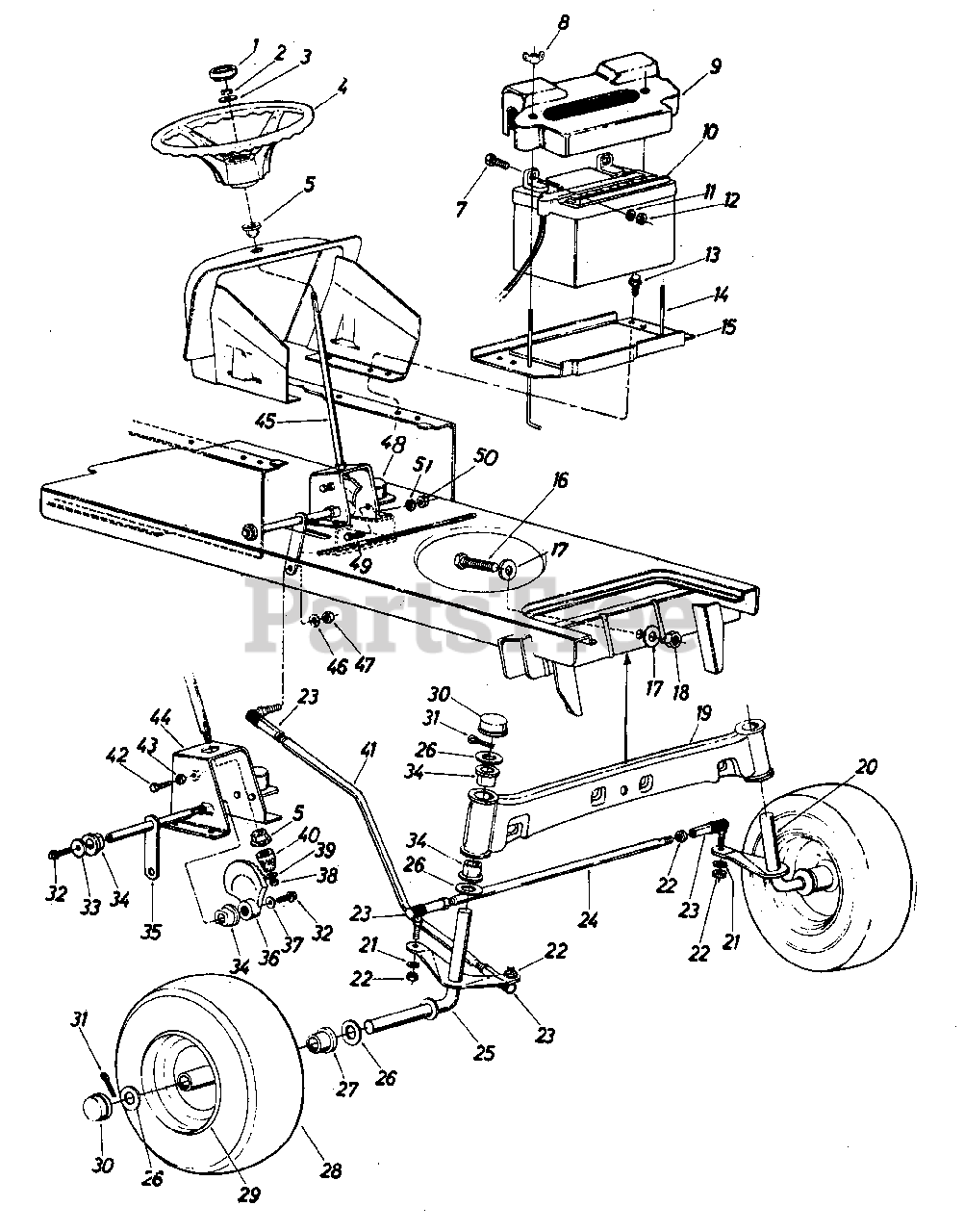

145-822-190 - White Outdoor Garden Tractor, 16hp (1985) Steering Assembly Parts Diagram

Garden Tractor, 16hp

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

2

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd .
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

3

White Outdoor 736-0242

Bell-Wash. 5/16" I.D. x .87" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 731-0356

Steering Wheel

$

$

Not available

5

White Outdoor 741-0225

Plastic Hex Bearing 5/8" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0258

Hex Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0113

Wing Nut Plastic 1/4-20 Thd.
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

9

White Outdoor 731-0707

Battery Cover

$

$

Not available

10

White Outdoor 725-0453

12-V Battery
(Superseded to 925-0453G)

$

$

Not available

11

White Outdoor 736-0329

L-Wash. 1/4" Scr*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

12

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

13

White Outdoor 710-0599

Hex Thd. Rolling Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

15

White Outdoor 13379

Battery Plate

$

$

Not available

16

White Outdoor 710-0533

Hex Scr. 5/8-18 x 2.50" Lg.*

$

$

Not available

17

White Outdoor 736-0282

Flat Wash. .66" I.D. x 2.25" O.D. x .17

$

$

Not available

18

White Outdoor 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

19

13865

Front Pivot Bar Assly.

$

$

Not available

20

13839

Front Axle Ass'y. L.H.

$

$

Not available

21

White Outdoor 736-0169

L-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 723-0156

Ball Joint Assy.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

24

White Outdoor 747-0301

Tie Rod

$

$

Not available

25

13838

Front Axle Ass'y. R.H.

$

$

Not available

26

White Outdoor 736-0316

Fl-Wash. .780 I.D. x 1.59 O.D.

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 741-0312

Flange Bearing
(Superseded to 941-0312)

$8.99

$

In Stock, only 1 left!

0

28

White Outdoor 734-1223

Front Wheel Ass'y. Comp.

$

$

Not available

White Outdoor 734-0275

Front Wheel Tire Only

Variations

White Outdoor 734-0275-0901

TIRE 16 X 6.5 - Carlisle (0901)

$

$

Not available

White Outdoor 734-0275-0905

TIRE 16 X 6.5 - Duro (0905)

$

$

Not available

White Outdoor 734-0275-0902

TIRE-16X6.5 - Dico (0902)

$

$

Not available

$114.99

$

Usually ships in 3-6 days

0

29

White Outdoor 734-0787

Front Wheel Rim Only

$

$

Not available

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

White Outdoor 737-0146

Grease Fitting

$5.49

$

Usually ships in 3-6 days

0

30

White Outdoor 731-0484

Dust Cover
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

31

White Outdoor 714-0121

Cotter Pin 5/32" Dia. x 1.00" Lg.*
(Superseded to 914-0121)

$

$

Not available

32

White Outdoor 710-0180

Hex Scr. 3/8-24 x .75" Lg. Grade 5

$6.99

$

In Stock, only 3 left!

0

33

White Outdoor 736-0133

Fl-Wash. 3/8 I.D. x 1.25 O.D. x .090

$5.49

$

In Stock, Qty 7

0

34

White Outdoor 741-0199

Flange Double "D" Brg. .753 I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, only 3 left!

0

35

White Outdoor 12749

Steering Arm Shaft Ass'y.

$

$

Not available

36

White Outdoor 748-0236

Side Gear Steering

$101.99

$

In Stock, only 1 left!

0

37

White Outdoor 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 712-0237

Hex Cent. L-Nut 5/16-24 Thd .

$4.99

$

In Stock, only 4 left!

0

39

White Outdoor 736-0264

Fl-Wash. 5/16" I.D. x .62 O.D. x .059

$6.99

$

In Stock, only 1 left!

0

40

White Outdoor 748-0237

Pinion Gear Steering
(Superseded to 948-0237)

$21.99

$

In Stock, only 1 left!

0

41

White Outdoor 747-0302

Drag Link

$84.99

$

In Stock, only 1 left!

0

42

White Outdoor 710-0670

Hex Nylon Scr. 3/8-16 x 1.25" Lg.

$6.99

$

Usually ships in 3-6 days

0

43

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

44

White Outdoor 12850

Steering Gear Sup. Ass'y.

$

$

Not available

45

White Outdoor 738-0317

Steering Shaft

$

$

Not available

46

White Outdoor 736-0169

L-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

48

White Outdoor 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

49

White Outdoor 710-0258

Hex Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

51

White Outdoor 736-0329

L-Wash. 1/4" Scr.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0
