145-822-190 - White Outdoor Garden Tractor, 16hp (1985) Drive Assembly Parts Diagram

Garden Tractor, 16hp

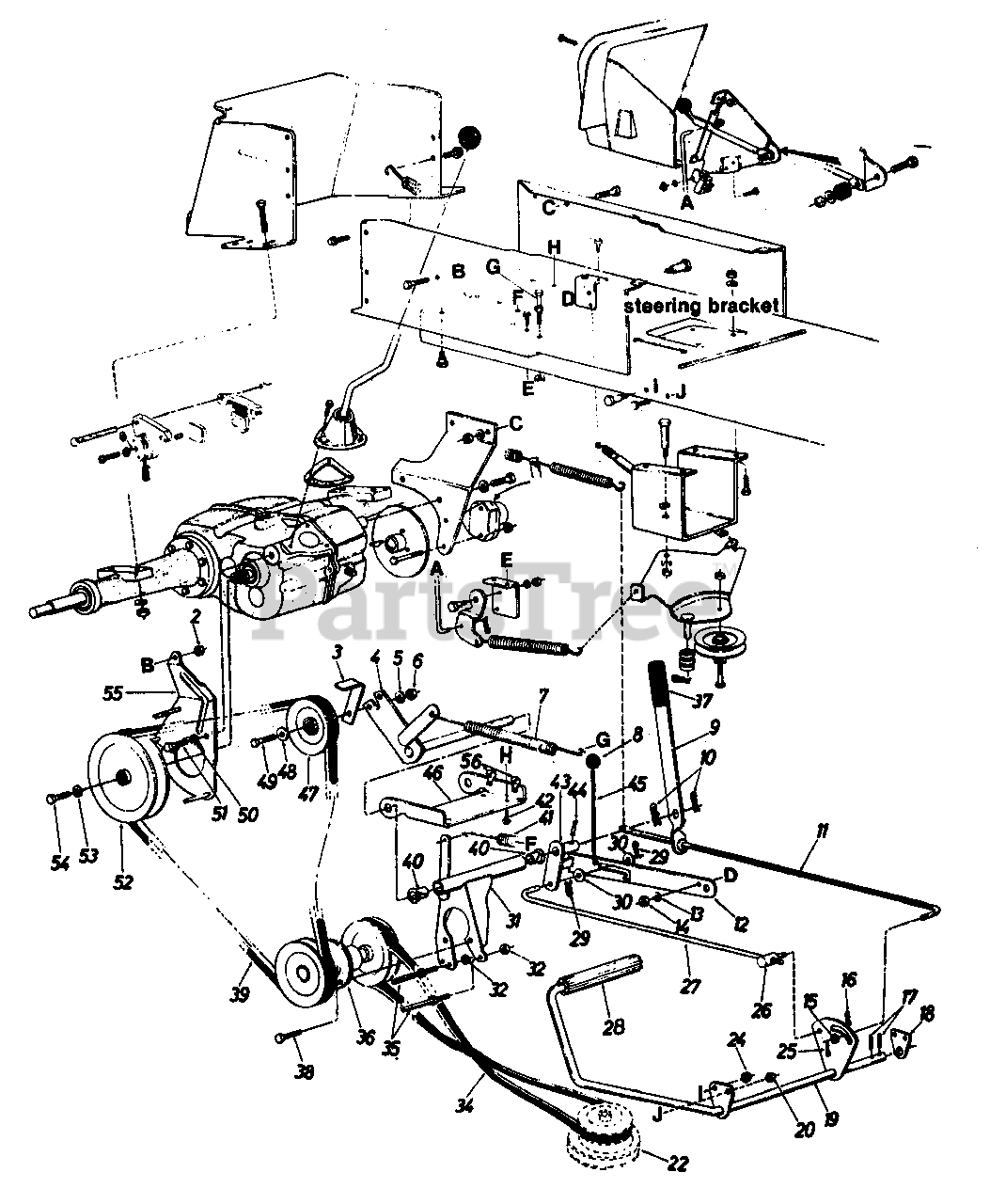

Drive Assembly Parts Diagram

  • Title

2

White Outdoor 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

3

White Outdoor 13819

Belt Guard

Note: (Clutch Idler)

Variations

White Outdoor 13819-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

4

13815

Clutch Brkt. Ass'y.

$

$

Not available

5

White Outdoor 736-0169

L-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

7

White Outdoor 732-0384

Ext. Spring
(Superseded to 932-0384)

Note: (Drive Idler)

$14.99

$

In Stock, Qty 12

0

8

White Outdoor 720-0166

Knob

Note: (Parking Brake)

$

$

Not available

9

13872

Hand Brake Lever

$

$

Not available

10

White Outdoor 714-0117

Hairpin Cotter 5/8" Dia.

$4.49

$

In Stock, Qty 16

0

11

747-0304

Brake Rod

$

$

Not available

12

White Outdoor 13832

Parking Brake Cam

$

$

Not available

13

White Outdoor 736-0119

Fl-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

15

White Outdoor 736-0275

Fl-Wash. 5/16 Scr.

$6.99

$

Usually ships in 3-6 days

0

16

White Outdoor 714-0145

Hairpin Cotter 3/8" Rod

$4.99

$

In Stock, Qty 20+

0

17

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.*

$3.99

$

In Stock, only 2 left!

0

18

White Outdoor 13859

Clutch Rod Brg. Brkt.

$

$

Not available

19

13856

Clutch Brake Pedal Ass'y.

$

$

Not available

20

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

22

White Outdoor 756-0328

Engine Pulley 4.75 & 5.56

$

$

Not available

24

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

25

White Outdoor 714-0115

Cotter Pin 3/32" Dia. x .75" Lg.*

$3.99

$

In Stock, only 2 left!

0

26

White Outdoor 711-0198

Pivot Bushing
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

27

White Outdoor 747-0306

Brake Cam Rod

$

$

Not available

28

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

29

White Outdoor 714-0145

Hairpin Cotter 3/8" Rod

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0101

Fl-Wash. 3/8" I.D. x 1.00" O.D. x .030
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

31

White Outdoor 13823

Jack Shaft Mtg. Brkt. Ass'y.

$

$

Not available

32

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

34

White Outdoor 754-0245

"V"-Belt 1/2 x 59" Lg. (Polyester)
(Superseded to 954-0245)

$

$

Not available

35

711-0696

Stud 3/8-16 x 3.62" Lg. Special

$

$

Not available

36

White Outdoor 756-0324

Jack Shaft Ass'y.

$

$

Not available

37

White Outdoor 720-0189

Flat Grip

$

$

Not available

38

White Outdoor 710-0198

Hex Sem Scr. 5/16-18 x .75" Lg.*
(Superseded to 910-0198)

$

$

Not available

39

White Outdoor 754-0244

"V"-Belt 1/2 x 40" Lg. (Kevlar)
(Superseded to 954-0244)

$39.99

$

Usually ships in 3-6 days

0

40

White Outdoor 741-0295

Nyliner 5/8" I.D. x .88" Lg.
(Superseded to 941-0591)

$

$

Not available

41

White Outdoor 732-0153

Ext. Spring

Note: (Jack Shaft)

$

$

Not available

42

White Outdoor 710-0599

Hex Thd. Rolling Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 13871

Clutch-ldler Horn Ass'y.

$

$

Not available

44

White Outdoor 715-0108

Spring Pin Spiral 1/4" Dia. x 1.00" Lg.

$4.99

$

In Stock, Qty 15

0

45

747-0300

Parking Brake Link

$

$

Not available

46

White Outdoor 13822

Idler Mtg. Brkt. Drive

$

$

Not available

47

White Outdoor 756-0293

4" "V"-ldler Pulley
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

48

White Outdoor 736-0300

Fl-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 710-0347

Hex Scr. 3/8-16 x 1.75" Lg.*

$5.49

$

In Stock, Qty 20+

0

50

White Outdoor 736-0169

L-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

51

White Outdoor 710-0216

Hex Scr. 3/8-16 x .75" Lg.*

$4.49

$

In Stock, Qty 15

0

52

MTD 756-0332

"V"-Pulley 7.0" O.D.

Note: (Transaxle)

$

$

Not available

53

White Outdoor 736-0169

L-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

54

White Outdoor 710-0180

Hex Scr. 3/8-24 x .75" Lg.*

$6.99

$

In Stock, only 3 left!

0

55

White Outdoor 13829

Belt Guard Ass'y.

$

$

Not available

56

White Outdoor 726-0193

Plastic Hose Clamp

$

$

Not available
