145-822-190 - White Outdoor Garden Tractor, 16hp (1985) Chassis Assembly Parts Diagram

Garden Tractor, 16hp

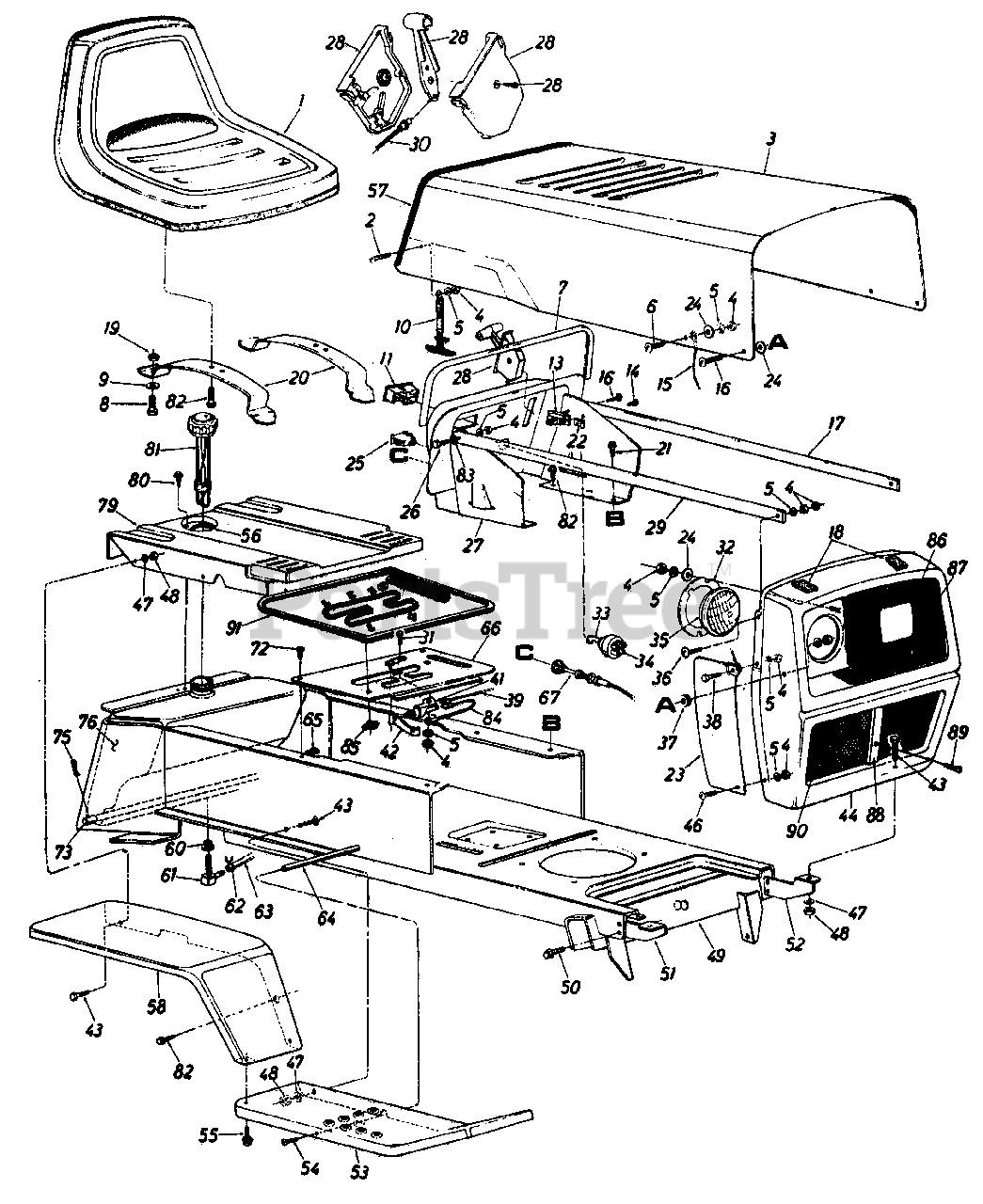

Chassis Assembly Parts Diagram

  • Title

1

757-0308

Seat Assembly

$

$

Not available

2

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

3

White Outdoor 13808

Hood

Variations

White Outdoor 13808-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 13808-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

5

White Outdoor 736-0329

L-Wash. 1/4" Scr.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

6

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

7

White Outdoor 731-0511

Vinyl Molding Strip 29"

$3.99

$

Usually ships in 3-6 days

0

8

White Outdoor 710-0689

Hex Nylon Scr. 1/2-13 x .75" Lg

$6.99

$

Usually ships in 3-6 days

0

9

White Outdoor 736-0192

Fl-Wash 501 I.D. x 1.00" O.D. x .090

$4.49

$

In Stock, Qty 16

0

10

White Outdoor 723-0296

Hood Latch Ass'y.

$

$

Not available

11

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

13

White Outdoor 725-0459

Circuit Breaker 8 Amp.
(Superseded to 753-0685)

$

$

Not available

14

White Outdoor 710-0351

Hex Tap Scr. #10 x .50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

15

White Outdoor 727-0199

Hood Stop

$

$

Not available

16

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.*
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 749-0220

Grille Positioning Rod

$

$

Not available

18

White Outdoor 722-0135

PVC Foam Strip 1/2 x 1.00" x 2.00" Lg.

$

$

Not available

19

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.*

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 13123

Seat Spring

Variations

White Outdoor 13123-0637

SEAT SPRING - POWDER BLACK (0637)

$

$

Not available

$

$

21

White Outdoor 710-0599

Hex Thd. Rolling Scr. 1/4" x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 712-0344

Speed Nut #10Z

$

$

Not available

23

14748

Grille Side Panel R.H.

$

$

Not available

14749

Grille Side Panel L.H.

Note: (Not Shown)

$

$

Not available

24

White Outdoor 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

26

White Outdoor 710-0166

Truss Hd. Scr. 1/4-20 x 1.00" Lg.*
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

27

16325

Dash Panel Assy

$

$

Not available

28

White Outdoor 831-0692

Throttle Control Box Comp.
(Superseded to 831-0796A)

$21.99

$

Usually ships in 3-6 days

0

29

White Outdoor 749-0220

Grille Positioning Rod

$

$

Not available

30

White Outdoor 746-0503

Trottle Control Cable
(Superseded to 946-0503)

$

$

Not available

31

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

32

White Outdoor 09960

Head Lamp Retainer

$

$

Not available

33

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

34

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

35

White Outdoor 725-0222

Head Lamp
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

36

White Outdoor 710-0255

Truss Machine Scr. 1/4-20 x .75" Lg.*
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 735-0144

Rubber Wash. .50" I.D. x 1.00 O.D. x .25 Thk.

$

$

Not available

38

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

39

725-0764

Reverse Lockout Wire Harness

$

$

Not available

41

White Outdoor 725-0268

Safety Switch
(Superseded to 925-0268)

$39.99

$

Usually ships in 3-6 days

0

42

732-0405

Switch Actuator Spring

$

$

Not available

43

White Outdoor 710-0118

Hex Scr. 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

44

13800

Grille Ass'y.

$

$

Not available

46

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

47

White Outdoor 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

49

White Outdoor 13820

Lower Frame Ass'y.

$

$

Not available

50

White Outdoor 710-0726

Hex Thd. Rolling Scr. 5/16" x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 13862

Grille Mount Brkt. R.H.

$

$

Not available

52

White Outdoor 13863

Grille Mount Brkt. L.H.

$

$

Not available

53

White Outdoor 13828

Running Board R.H.

$

$

Not available

White Outdoor 13827

Running Board L.H.

Note: (Not Shown)

$

$

Not available

54

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.*

$4.99

$

In Stock, only 2 left!

0

55

White Outdoor 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

56

735-0179

Grommet

Note: (Gas Tank Neck)

$

$

Not available

57

White Outdoor 731-0511

Vinyl Moulding Strip 30"

$3.99

$

Usually ships in 3-6 days

0

58

13810

Fender Ass'y. R.H.

$

$

Not available

White Outdoor 13809

Fender Ass'y. L.H.

Note: (Not Shown)

$

$

Not available

60

White Outdoor 735-0149

Bushing
(Superseded to 935-0149)

Note: (Gas Tank)

$2.99

$

In Stock, Qty 20+

0

61

751-3054

90ø Nipple

$

$

Not available

62

White Outdoor 726-0207

Hose Clamp 3/8"

$

$

Not available

63

White Outdoor 751-0173

Gas Line 46" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

64

White Outdoor 738-0435

Running Board Rod

$

$

Not available

65

White Outdoor 712-0147

Speed Nut #10-24

$6.99

$

Usually ships in 3-6 days

0

66

14466

Transmission Cover Ass'y.

$

$

Not available

67

White Outdoor 746-0394

Choke Control Comp.

$

$

Not available

72

White Outdoor 710-0351

Truss Hd. Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

73

White Outdoor 738-0482

Hitch Rod

$

$

Not available

75

White Outdoor 714-0147

Internal Cotter Pin

$4.99

$

In Stock, Qty 6

0

76

White Outdoor 751-0259

Gas Tank

$

$

Not available

79

White Outdoor 13814

Seat Plate

$

$

Not available

80

White Outdoor 710-0726

Hex Thd. Rolling Scr. 5/16-24 x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 723-0346

Gas Gauge
(Superseded to 723-0346A)

$40.99

$

In Stock, only 1 left!

0

82

White Outdoor 710-0726

Hex Thd. Rolling Scr. 5/16-24 x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 736-0222

External Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

84

White Outdoor 725-0765

Electric Wire

$

$

Not available

85

White Outdoor 1539-003

Speed Nut 1/4" Stud
(Superseded to 1539-019)

$4.49

$

In Stock, Qty 10

0

86

White Outdoor 731-0465

Headlight Bezel

$

$

Not available

87

White Outdoor 710-0148

Hex Wash. Hd. F-Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

88

723-0347

Center Moulding

$

$

Not available

89

White Outdoor 710-0425

Truss Mach. Scr. #10-24 x .62" Lg.

$4.99

$

Usually ships in 3-6 days

0

90

White Outdoor 13730

Grille Screen

$

$

Not available

91

731-0751

Transmission Cover

$

$

Not available

730-0116

Reflectors Fender

$

$

Not available
