145-3687 - Toro Bucket Mount Kit for Z Master Professional 2000 Series Mower Bucket Mount Assembly No. 145-3687 Parts Diagram

Bucket Mount Kit for Z Master Professional 2000 Series Mower

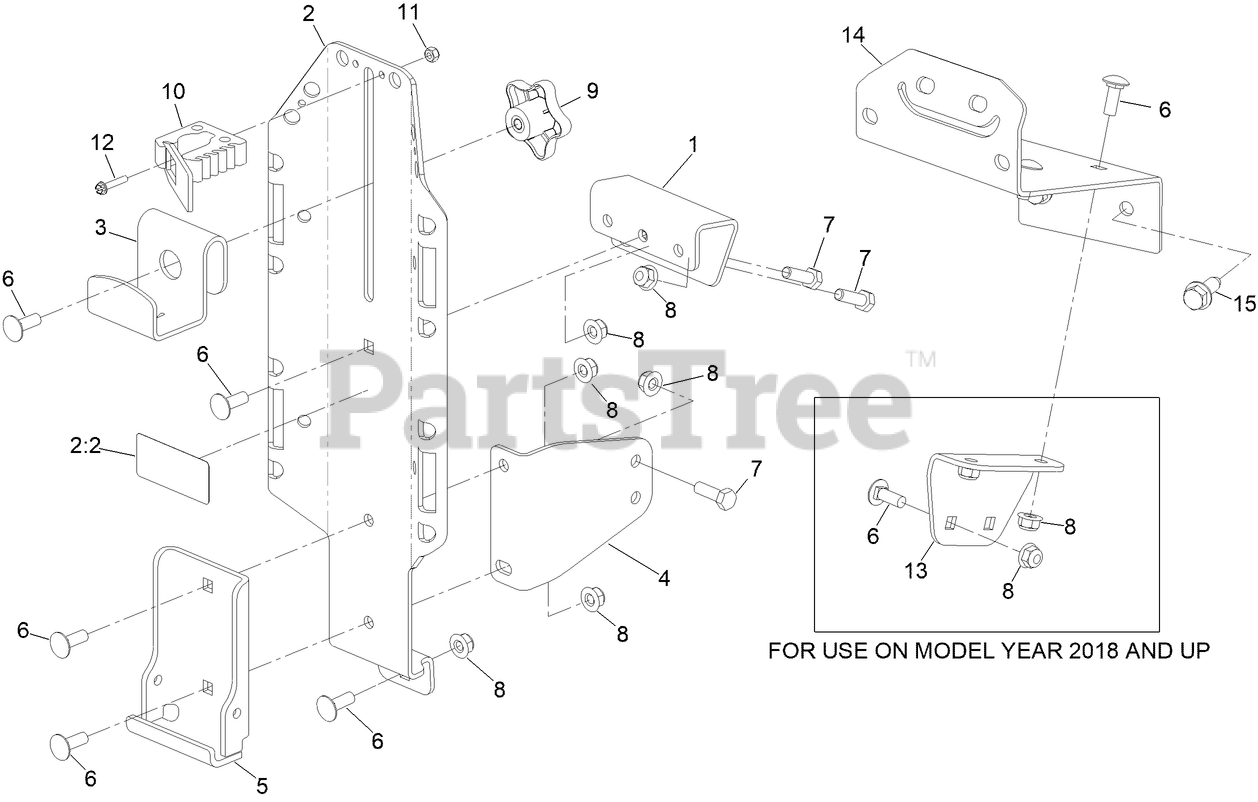

Bucket Mount Assembly No. 145-3687 Parts Diagram

  • Title

1

Toro 136-1653-03

MOUNT-BUCKET, UPPER

$21.99

$

Usually ships in 3-6 days

0

2

Toro 136-1692

MOUNT BRACKET ASM

$98.99

$

Usually ships in 3-6 days

0

2:2

Toro 136-1680

DECAL-WEIGHT, MAXIMUM

$7.99

$

Usually ships in 3-6 days

0

3

Toro 133-1897-03

BRACKET-TOP

$27.99

$

Usually ships in 3-6 days

0

4

Toro 133-1888-03

BRACKET-SUPPORT, LOWER

$15.99

$

Usually ships in 3-6 days

0

5

Toro 133-1894-03

BRACKET-SUPPORT, HINGE

$43.99

$

Usually ships in 3-6 days

0

6

Toro 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

7

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, only 2 left!

0

10

Toro 133-1899

CLAMP-QUICK FIST, MINI

$17.99

$

Usually ships in 3-6 days

0

11

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

12

Toro 32105-29

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

13

Toro 136-9031-03

BRACKET-SUPPORT, INNER

$14.99

$

Usually ships in 3-6 days

0

14

Toro 136-9029-01

BRACKET-SUPPORT, POD (LH)

$36.99

$

Usually ships in 3-6 days

0

15

Toro 126-1696

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 5

0
