145-0700 - Toro Update Kit for Power TRX Commercial OXHE Snowthrower TRX Update Kit Assembly No. 145-0700 Parts Diagram

Update Kit for Power TRX Commercial OXHE Snowthrower

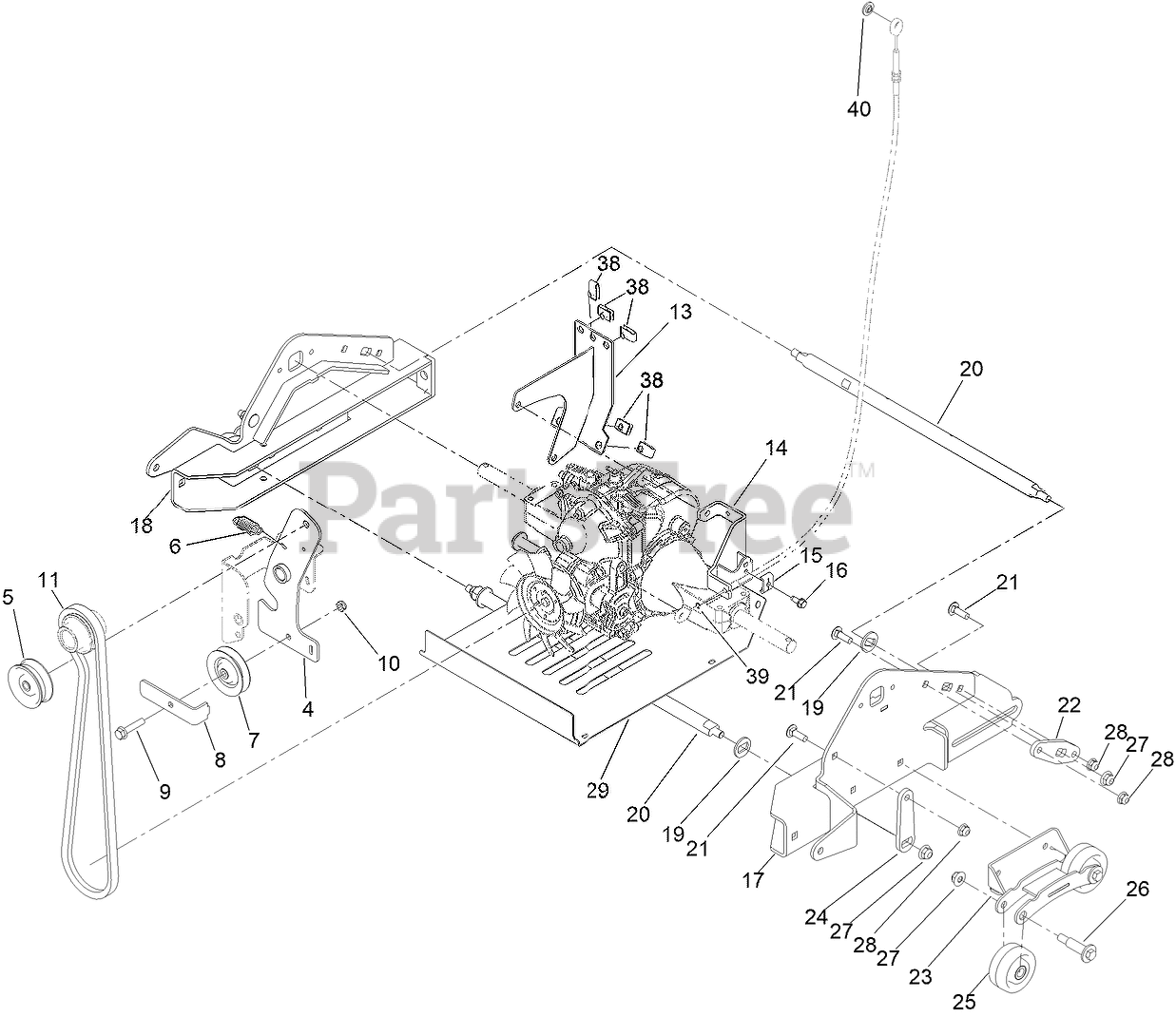

TRX Update Kit Assembly No. 145-0700 Parts Diagram

  • Title

4

Toro 145-1652

ARM-CLUTCH, TRACTION WELD ASM

$

$

Not available

5

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

6

Toro 145-0675

SPRING-EXTENSION

$2.99

$

In Stock, only 1 left!

0

7

Toro 119-8822

PULLEY-IDLER

$25.99

$

In Stock, Qty 6

0

8

Toro 144-2892

GUIDE-BELT

$3.99

$

Usually ships in 3-6 days

0

9

Toro 140-5024

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

10

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

11

Toro 140-7940

BELT-TRACTION (A, 41.00)

$29.99

$

Usually ships in 3-6 days

0

13

Toro 145-1658-03

SUPPORT-HYDRO, REAR WELD ASM

$37.99

$

Usually ships in 3-6 days

0

14

Toro 145-1657-03

BRACKET-HYDRO, WELD ASM

$42.99

$

Usually ships in 3-6 days

0

15

Toro 136-7191

CLAMP-CABLE

$4.99

$

Usually ships in 3-6 days

0

16

Toro 137-3043

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

17

Toro 145-0698-03

SUPPORT-TRACK, ASM LH

$197.99

$

Usually ships in 0 days

0

18

Toro 145-0697-03

SUPPORT-TRACK, ASM RH

$197.99

$

Usually ships in 0 days

0

19

Toro 144-2881

WASHER-SPECIAL, D

$2.49

$

Usually ships in 3-6 days

0

20

Toro 144-2854

BAR-PIVOT

$53.99

$

Usually ships in 3-6 days

0

21

Toro 110-3144

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

22

Toro 144-2857-03

PLATE-BAR, PIVOT

$8.49

$

Usually ships in 3-6 days

0

23

Toro 145-1705-03

SUPPORT-WHEEL, ASM

$42.99

$

Usually ships in 3-6 days

0

24

Toro 144-2882-03

PLATE-SUPPORT

$8.49

$

Usually ships in 3-6 days

0

25

Toro 145-1685

WHEEL-BOGEY

$8.49

$

Usually ships in 3-6 days

0

26

Toro 136-7198

BOLT-SHOULDER

$1.99

$

In Stock, Qty 20+

0

27

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

28

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

29

Toro 145-1654-01

COVER-BOTTOM

$38.99

$

Usually ships in 3-6 days

0

38

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

39

Toro 144-2822

RING-RETAINING, EXT

$1.49

$

Usually ships in 3-6 days

0

40

Toro 99-6808

WASHER-STEPPED

$1.99

$

Usually ships in 3-6 days

0
