144Z834P401 - Yard-Man Garden Tractor (1994) Mowing Deck Parts Diagram

Garden Tractor

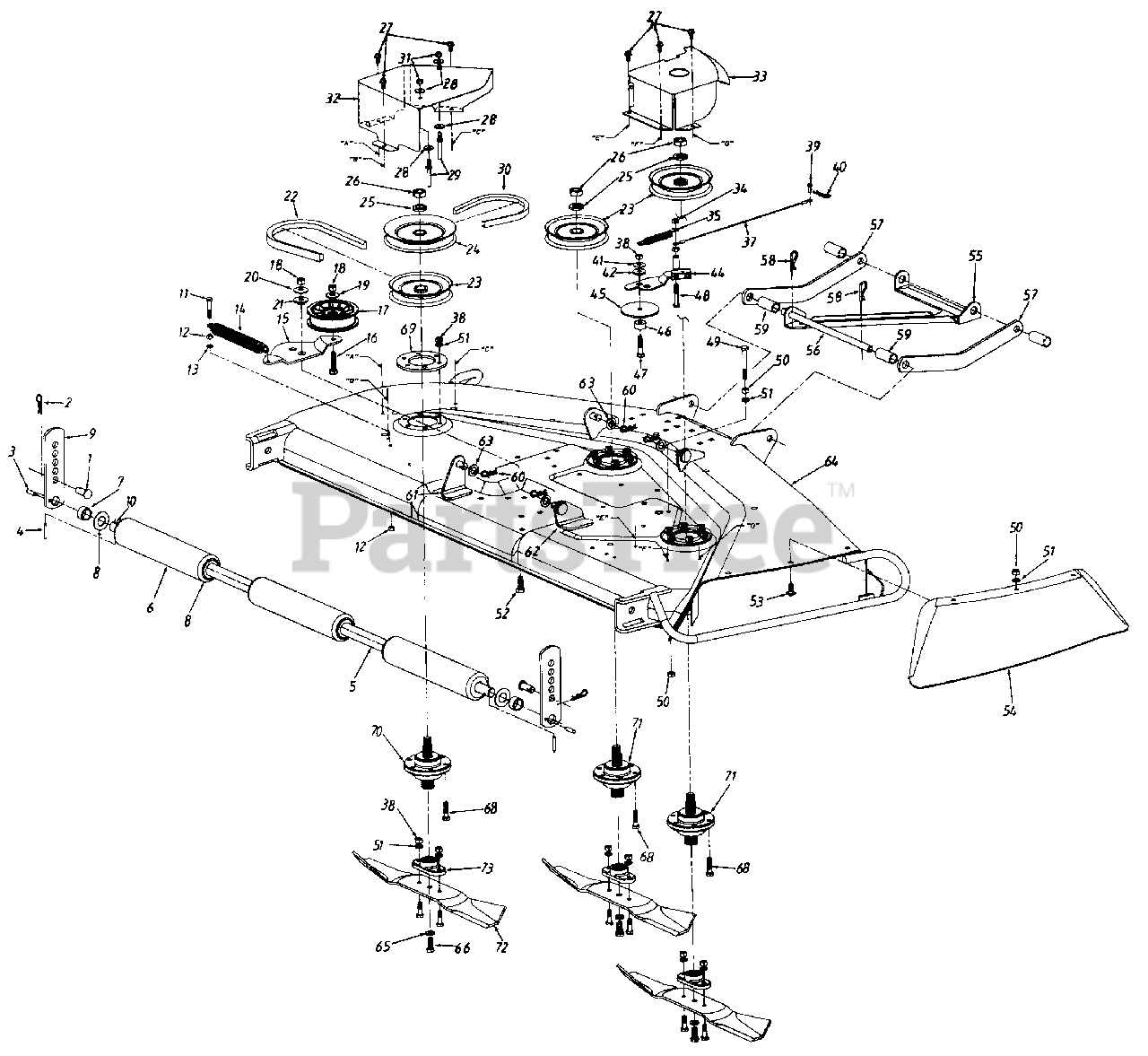

Mowing Deck Parts Diagram

  • Title

1

MTD 711-0310

Clevis Pin

$10.99

$

Usually ships in 3-6 days

0

2

MTD 714-0101

Hairpin Clip

$4.99

$

In Stock, only 2 left!

0

3

MTD 715-0108

Spring Pin 1/4" x 1" Lg.

$4.99

$

In Stock, Qty 15

0

4

MTD 715-0246

Spring Pin 3/16" x 1-14" Lg.
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

5

MTD 750-0288

Spacer .82" I.D.

Variations

MTD 750-0288-0637

Spacer, .82 x 1.0 x 5.75 - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 731-0335

Deck Roller

$72.99

$

In Stock, Qty 11

0

7

MTD 750-0212

Spacer .75" I.D.

$10.99

$

In Stock, Qty 18

0

8

MTD 736-0188

Fl-Wash. .76" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

9

MTD 12650

Height Adjuster

Variations

MTD 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 3 left!

0

MTD 12650-4008

Height Adjuster - WINE RED (4008)

$43.99

$

In Stock, only 3 left!

0

$35.99

$

Usually ships in 3-6 days

0

10

MTD 738-0295

Roller Shaft

$124.99

$

In Stock, only 2 left!

0

11

MTD 710-0698

Hex Bolt 1/4-28 x 1.5" Lg. (Gr. 5)

$

$

Not available

12

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

13

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

14

MTD 732-0594A

Ext. Spring 7.33" Lg.
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

15

MTD 783-0139

Idler Brkt.
(Superseded to 783-0139B-0637)

Variations

MTD 783-0139-0637

Idler Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

17

MTD 756-0627

Idler Pulley
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

18

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

19

MTD 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 20+

0

21

MTD 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

22

MTD 754-0291A

"V"-Belt
(Superseded to 954-0291A)

$57.99

$

In Stock, only 1 left!

0

23

MTD 756-0519

Deck Pulley

$85.99

$

In Stock, only 3 left!

0

24

MTD 756-0604

Upper Deck Pulley

$

$

Not available

25

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

26

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

27

MTD 710-0599

Hex Wash. Hd. Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

29

MTD 711-0747

Belt Guard Pin

$10.99

$

Usually ships in 3-6 days

0

30

MTD 754-0364

"V"-Belt
(Superseded to 954-0364)

$66.99

$

Usually ships in 3-6 days

0

31

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

32

MTD 783-0131

Belt Guard - L.H.

Variations

MTD 783-0131-0480

GUARD-BELT LH - BRILLIANT GREEN (0480)

$50.99

$

Usually ships in 3-6 days

0

MTD 783-0131-0483

GUARD-BELT LH - CHARCOAL GRAY (0483)

$50.99

$

Usually ships in 3-6 days

0

MTD 783-0131-0637

GUARD-BELT LH - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

MTD 783-0131-0638

GUARD-BELT LH - MTD/TROY-BILT RED (0638)

$50.99

$

Usually ships in 3-6 days

0

MTD 783-0131-0648

GUARD-BELT LH - TECH GRAY (0648)

$50.99

$

Usually ships in 3-6 days

0

MTD 783-0131-0665

GUARD-BELT LH - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0131-0498

No Longer Available GUARD-BELT - OLD CUB YELLOW (0498)

$

$

Not available

$50.99

$

Usually ships in 3-6 days

0

33

MTD 783-0130

Belt Guard - R.H.

Variations

MTD 783-0130-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0130-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0130-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 783-0130-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0130-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 783-0130-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0130-0498

No Longer Available GUARD-BELT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0130-0629

No Longer Available GUARD-BELT - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0130-0662

No Longer Available GUARD-BELT - OYSTER GRAY (0662)

$

$

Not available

$

$

34

MTD 712-0117

Hex L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

35

MTD 732-0429A

Ext. Spring 3.97" Lg.
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

?36

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

37

MTD 727-0295

Brake Cable

$

$

Not available

38

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

39

MTD 711-0701

Clevis Pin
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

40

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

41

MTD 736-0425

Bell-Wash. .325" I.D.

$4.99

$

In Stock, Qty 13

0

42

MTD 748-0234

Shld. Spacer

$4.49

$

In Stock, Qty 20+

0

?43

MTD 750-0470

Spacer .96" Lg.

$6.99

$

Usually ships in 3-6 days

0

44

MTD 17116

Brake Ass'y.
(Superseded to 97116)

$52.99

$

In Stock, only 1 left!

0

45

MTD 736-0416

Fl-Wash. 5/16" I.D. x .3" O.D.

$

$

Not available

46

MTD 750-0214

Spacer .44" Lg.

$

$

Not available

47

MTD 710-0624

Hex Bolt 5/16-24 x 1.5" Lg. (Gr. 5)

$5.99

$

Usually ships in 3-6 days

0

48

MTD 710-0559

Hex Bolt 1/4-28 x 1.75" Lg. (Gr. 5)

$

$

Not available

49

MTD 710-0378

Hex Bolt 5/16-18 x 2.5" Lg.

$4.99

$

In Stock, only 4 left!

0

50

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

51

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

52

MTD 710-0152

Hex Bolt 3/8-24 x 1" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

53

MTD 710-0451

Carr. Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

54

MTD 12649

Chute Guard
(Superseded to 12649-0637)

Variations

MTD 12649-0637

GUARD-CHUTE - POWDER BLACK (0637)

$168.99

$

Usually ships in 3-6 days

0

MTD 12649-0638

GUARD-CHUTE - MTD/TROY-BILT RED (0638)

$168.99

$

Usually ships in 3-6 days

0

MTD 12649-0648

GUARD-CHUTE - TECH GRAY (0648)

$

$

Not available

MTD 12649-0650

No Longer Available GUARD-CHUT - RED METALLIC (0650)

$

$

Not available

MTD 12649-0662

No Longer Available GUARD-CHUT - OYSTER GRAY (0662)

$

$

Not available

MTD 12649-0665

No Longer Available GUARD-CHUT - YARDMAN GREEN (0665)

$

$

Not available

$168.99

$

Usually ships in 3-6 days

0

55

MTD 17264

Diagonal Brace

Variations

MTD 17264-0637

Diagonal Brace - POWDER BLACK (0637)

$

$

Not available

$

$

56

MTD 738-0392

Connecting Rod

$

$

Not available

57

MTD 17347

Stabilizer Link
(Superseded to 17347-0637)

Variations

MTD 17347-0637

Deck Stabilizer - POWDER BLACK (0637)

$

$

Not available

$

$

58

MTD 714-0149B

Hairpin Clip

$4.49

$

In Stock, Qty 18

0

59

MTD 750-0932

Spacer 1.75" Lg.
(Superseded to 950-0932A)

$20.99

$

In Stock, Qty 11

0

60

MTD 714-0145

Hairpin Clip

$4.99

$

In Stock, Qty 20+

0

61

UNKNOWN

$

$

Not available

62

UNKNOWN

$

$

Not available

63

MTD 736-0192

Fl-Wash. 1/2" I.D. x .93" O.D.

$4.49

$

In Stock, Qty 18

0

64

MTD 683-0060

Deck Ass'y.

Variations

MTD 683-0060-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 683-0060-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 683-0060-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

MTD 736-0217

L-Wash. 3/8" I.D. - H.D.

$4.49

$

In Stock, Qty 8

0

66

MTD 710-0877

Hex Bolt 3/8-24 x .88" Lg. (Gr. 5)
(Superseded to 710-0696)

$6.99

$

In Stock, only 2 left!

0

68

MTD 710-0672

Hex Bolt 5/16-24 x 1-1/4" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 18

0

69

MTD 14249A

Spindle Reinforcement Plate

$

$

Not available

70

MTD 618-0119

Spindle Ass'y. (L.H.)
(Superseded to 918-0119)

$

$

Not available

71

MTD 618-0118

Spindle Ass'y. (R.H. & Center)
(Superseded to 918-0118)

$177.99

$

Usually ships in 3-6 days

0

72

MTD 742-0171B

Blade
(Superseded to 942-0171B)

$

$

Not available

73

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

?74

MTD 710-0888

Hex Bolt 5/16-24 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0
