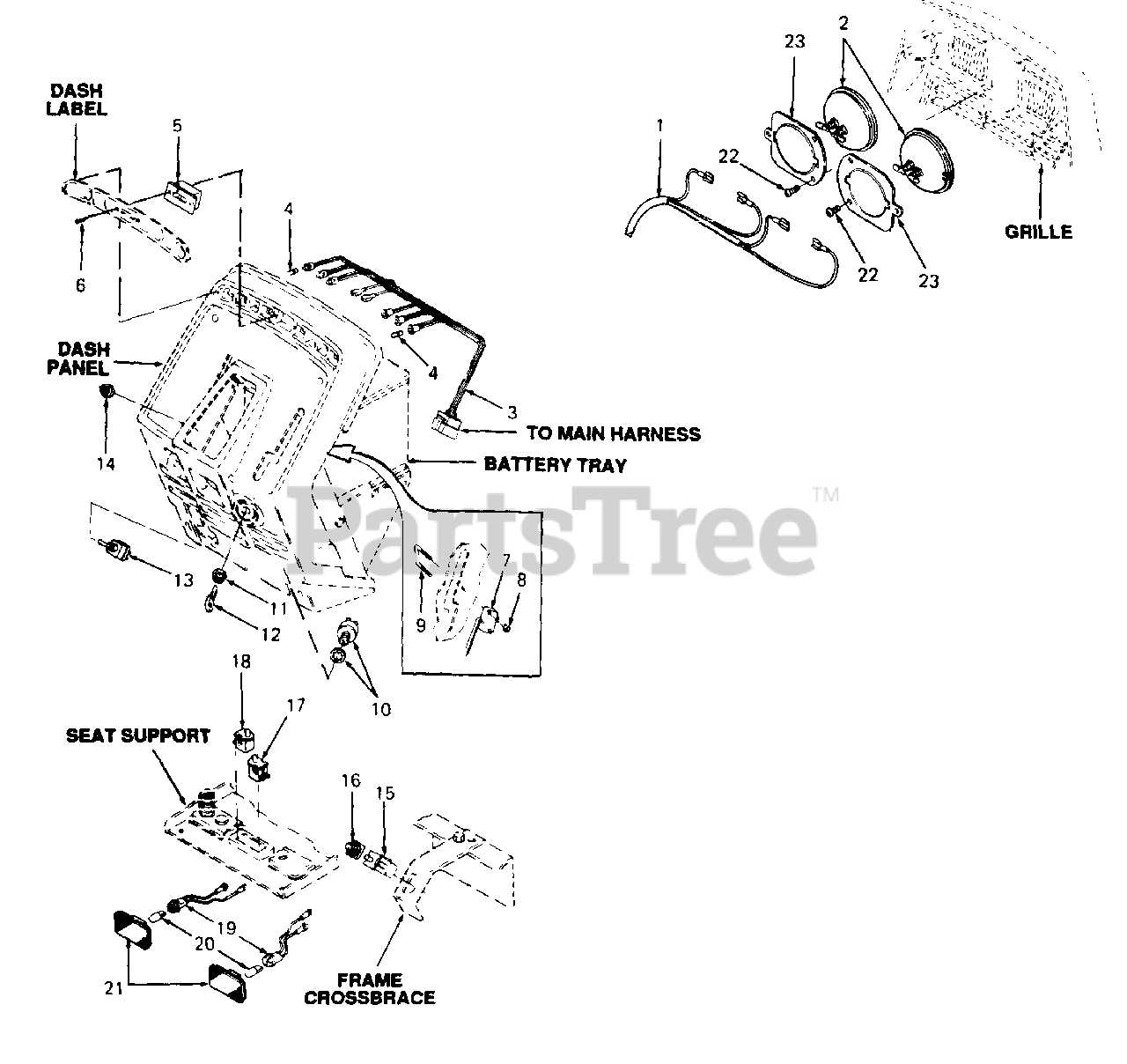

1440 (14A-663-100) - Cub Cadet Garden Tractor (SN: 880001 - 899000) Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title
1

Cub Cadet 629-3022

Harness, Main Wire
(Superseded to 929-3022)

$

$

Not available

Cub Cadet 726-0154

Tie, Push Mount Cable
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 726-0197

Tie, Panduit Cable

$3.99

$

In Stock, only 1 left!

0

Cub Cadet 726-3024

Strap, Cable Lock

$

$

Currently unavailable

Cub Cadet 726-3049

Tie, Cable
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

2

Cub Cadet 725-0222

Headlamp, Sealed Beam
(Superseded to 925-0222)

$58.99

$

In Stock, Qty 5

0

3

Cub Cadet 725-3185

Harness, Indicater Wire

$

$

Not available

4

Cub Cadet 725-1365

Bulb, Indicator
(Superseded to 925-1365)

$10.99

$

In Stock, only 3 left!

0

5

Cub Cadet 725-3159

Hour Meter
(Superseded to 925-3159)

$

$

Not available

6

Cub Cadet 710-0936

Screw, Truss Hd Tapp, #6 X .62 Lg

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 725-3066

Switch, Reverse
(Superseded to 925-3066)

$

$

Not available

8

Cub Cadet 712-3052

Nut, Hex Insert Lock, #4-40

$

$

Not available

9

Cub Cadet 711-3259

Screw, Switch

$

$

Not available

10

Cub Cadet 725-3163

Switch, Ignition
(Superseded to 925-3163)

$48.99

$

In Stock, only 3 left!

0

11

Cub Cadet 712-3013

Nut, Ignition Switch

$

$

Not available

12

Cub Cadet 759-3476A

Key, Ignition (Set of 2)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

13

Cub Cadet 725-0893

Switch, PTO
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

14

Cub Cadet 712-3014

Nut, Hex, 1/2-27 X .100 Thk

$

$

Not available

15

Cub Cadet 725-3164

Switch, Interlock
(Superseded to 925-3164A)

$40.99

$

In Stock, only 2 left!

0

16

Cub Cadet 735-3036

Boot, Switch

$

$

Not available

17

Cub Cadet 725-3166

Switch, Snap Mount - Normally Closed (Grey)
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

18

Cub Cadet 725-3167

Switch, Snap Mount - Normally Open (Black)
(Superseded to 925-3167)

$14.99

$

In Stock, only 2 left!

0

19

Cub Cadet 725-3019

Cable Assy, Tail Light.

$

$

Not available

20

Cub Cadet 725-3020

Bulb, Tail Light

$

$

Not available

21

Cub Cadet 725-3018

Lens Assy, Tail Light

$

$

Currently unavailable

Cub Cadet 710-3003

Screw, Pan Hd, #8-32 X .75 Lg

$

$

Not available

Cub Cadet 736-3018

Washer, Int-Ext Lock, #8

$

$

Not available

Cub Cadet 712-0142

Nut, Hex Mach, #8-32

$4.49

$

In Stock, Qty 9

0

22

Cub Cadet 710-0748

Screw, Pan Hd Tapp, #12 X .50 Lg

$

$

Not available

23

Cub Cadet 703-2759

Plate, Headlamp Mounting
(Superseded to 703-2759-0637)

Variations

Cub Cadet 703-2759-0637

Headlight Retainer - POWDER BLACK (0637)

$14.99

$

In Stock, only 4 left!

0

$14.99

$

In Stock, only 4 left!

0
