1440 (145-633-100) - Cub Cadet Garden Tractor (SN: 821060 - 880000) Transmission Dump Valve Linkage, Filter & Pickup Line Parts Diagram

Garden Tractor

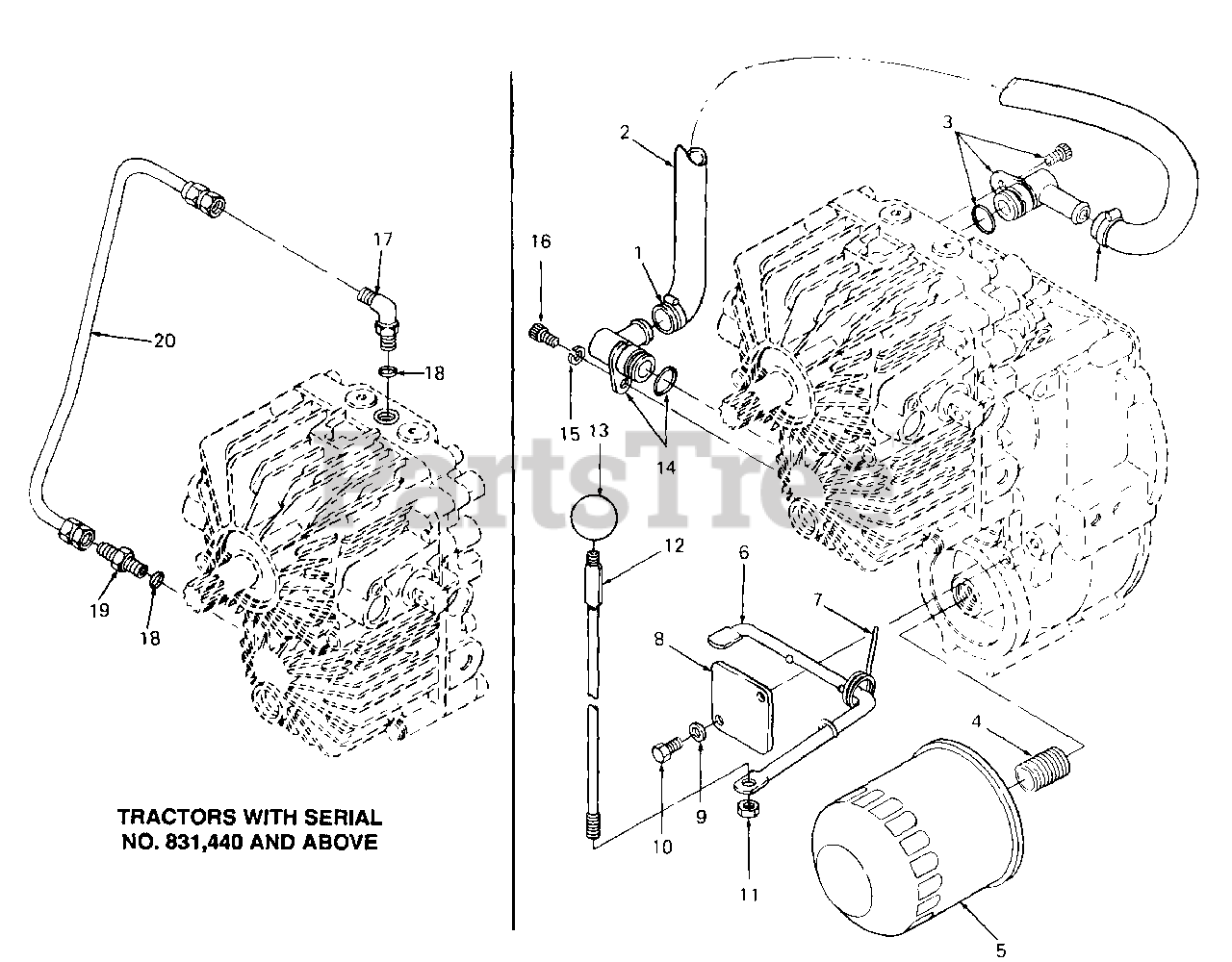

Transmission Dump Valve Linkage, Filter & Pickup Line Parts Diagram

  • Title

1

Cub Cadet 726-0132

Clamp, Hose, 5/8

$15.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 727-3065A

Line, Pickup

$

$

Not available

3

Cub Cadet SU-2510028

Fitting Assembly

$

$

Not available

Cub Cadet SU-9004175-0025

O-Ring

$

$

Not available

Cub Cadet 710-3234

Screw, Socket Hd, M6 X 12-8.8

$

$

Not available

4

Cub Cadet 737-3022

Nipple, Oil Filter
(Superseded to 937-3022)

$15.99

$

In Stock, only 1 left!

0

5

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

6

Cub Cadet 747-3155

Rod, Dump Valve Lower

$

$

Not available

7

Cub Cadet 732-3068

Spring, Torsion

$

$

Not available

8

Cub Cadet 703-2055

Plate, Retaining

$

$

Not available

9

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X .50 Lg GR5

$4.99

$

In Stock, Qty 11

0

11

Cub Cadet 712-0324

Nut, Hex Top Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

12

Cub Cadet 747-3154

Rod, Dump Valve Upper

$

$

Not available

13

Cub Cadet 720-3017

Knob, Ball

$14.99

$

In Stock, only 4 left!

0

14

Cub Cadet SU-2510028

Fitting Assembly

Note: Shipped with a metric thread socket head screw.

$

$

Not available

Cub Cadet SU-9004101-1130

O-Ring

$

$

Not available

15

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

Cub Cadet 710-3218

Screw, Socket Head, 1/4-20 X .65 Lg

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 727-3012

Elbow, 90 Degree Tube

$26.99

$

In Stock, only 4 left!

0

18

Cub Cadet 721-3001

O-Ring, 3/8 OD Tube

$3.49

$

In Stock, Qty 6

0

19

Cub Cadet 727-3002

Connector, 37 Degree Tube
(Superseded to 927-3002)

$12.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 727-3074

Line, Metal Pickup

$

$

Not available
