1440 (145-633-100) - Cub Cadet Garden Tractor (SN: 821060 - 880000) Hydrostatic Transmission Parts Diagram

Garden Tractor

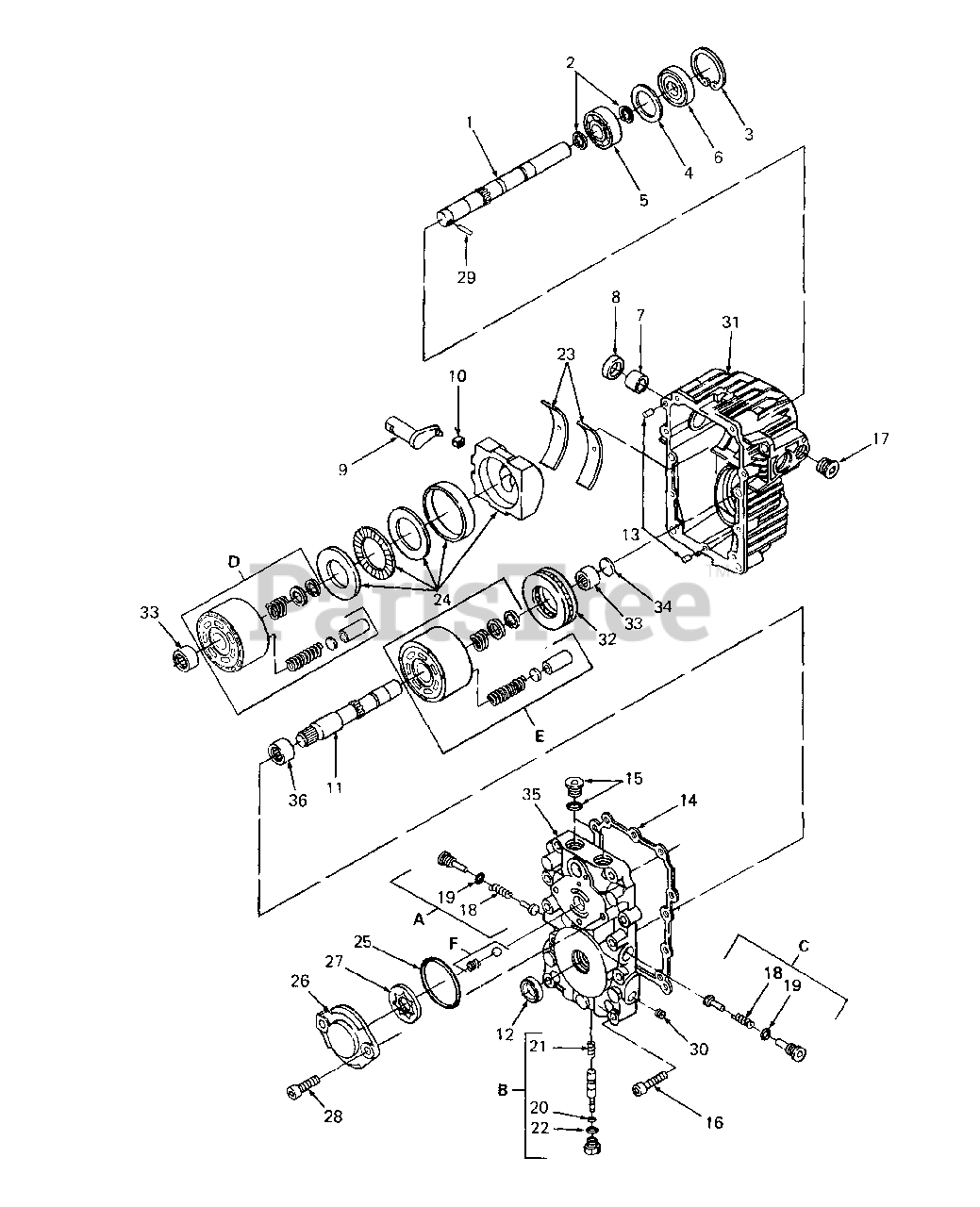

Hydrostatic Transmission Parts Diagram

  • Title

A

Cub Cadet HG-2510050

Kit, Poppet Check Valve

$

$

Not available

B

Cub Cadet HG-2510012

Kit, Bypass Valve

$114.99

$

Usually ships in 3-6 days

0

C

Cub Cadet HG-2510033

Kit, Orificed Check Valve

$

$

Not available

D

Cub Cadet HG-2510014

Kit, Pump Cylinder Block

$

$

Not available

E

Cub Cadet HG-2510013

Kit, Motor Cylinder Block

$

$

Not available

F

Cub Cadet HG-2510011

Kit, Charge Relief Valve

$12.99

$

Usually ships in 3-6 days

0

1

Cub Cadet HG-2000076

Shaft, Pump
(Superseded to HG-71388)

$

$

Not available

2

Cub Cadet HG-2000022

Ring, Retaining

Note: Included in Overhaul Seal Kit

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet HG-2000038

Ring, Retaining

Note: Included in Overhaul Seal Kit

$

$

Not available

4

Cub Cadet HG-2000023

Spacer

Note: Included in Overhaul Seal Kit

$8.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-2000032

Bearing, Ball

$

$

Not available

6

Cub Cadet HG-2000036

Seal, Lip
(Superseded to HG-51092)

Note: Included in Overhaul Seal Kit

$17.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-2000019

Bearing, Journal
(Superseded to HG-2510096)

$

$

Not available

8

Cub Cadet HG-2000037

Seal, Lip

Note: Included in Overhaul Seal Kit

$

$

Not available

9

Cub Cadet HG-2000014

Arm, Trunnion

$

$

Not available

10

Cub Cadet HG-2000015

Guide, Slot

$21.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-2000007

Shaft, Motor

$180.99

$

In Stock, only 1 left!

0

12

Not used

Note: Not used in this application

$

$

Not available

13

Cub Cadet HG-9004800-2506

Pin

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-2000061

Gasket, Center Section

Note: Included in Overhaul Seal Kit

$

$

Not available

15

Cub Cadet HG-9005110-5600

Plug

$20.99

$

Usually ships in 3-6 days

0

16

Cub Cadet HG-9007314-0808

Screw

$5.99

$

Usually ships in 3-6 days

0

17

Cub Cadet HG-9005110-7500

Plug

$

$

Not available

18

Cub Cadet HG-2000028

Spring

$

$

Not available

19

Cub Cadet HG-9004201-3700

O-Ring

Note: Included in Overhaul Seal Kit

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet HG-9004175-0027

O-Ring

Note: Included in Overhaul Seal Kit

$

$

Not available

21

Cub Cadet HG-2003011

Spring
(Superseded to HG-2513011)

$171.99

$

Usually ships in 3-6 days

0

22

Cub Cadet HG-9004201-2500

O-Ring

Note: Included in Overhaul Seal Kit

$

$

Not available

23

Cub Cadet HG-2000012

Bearing, Cradle

$

$

Currently unavailable

24

Cub Cadet HG-2510015

Swashplate

$

$

Not available

25

Cub Cadet HG-9004100-1430

O-Ring

$

$

Not available

26

Cub Cadet HG-2000008

Housing, Charge Pump
(Superseded to HG-2510056)

$

$

Not available

27

Cub Cadet HG-J1030731

Gerotor Assy

$

$

Not available

28

Cub Cadet HG-9007314-0805

Screw

$

$

Not available

29

Cub Cadet HG-9004800-1213

Pin

$

$

Not available

30

Cub Cadet HG-9005001-0600

Plug

$

$

Not available

31

Cub Cadet HG-2510032

Housing Assy
(Superseded to HG-2510096)

Note: (Includes Ref No. 7, 32, 33 & 34)

$

$

Not available

32

Cub Cadet HG-50019

Bearing, Thrust Ball
(Superseded to HG-53341)

$37.99

$

Usually ships in 3-6 days

0

33

Cub Cadet HG-2000033

Bearing, Needle

$

$

Currently unavailable

34

Cub Cadet HG-2000011

Washer, Thrust

$

$

Not available

35

Cub Cadet HG-2510019

Center Section Assy

Note: (For tractors w/serial no. 831,439 & below); (Includes Ref No. 33 & 36)

$

$

Not available

Cub Cadet HG-2510047

Center Section Assy

Note: (For tractors w/serial no. 831,440 & above); (Includes Ref No. 33 & 36)

$

$

Not available

36

Cub Cadet HG-2000035

Bearing, Needle

$

$

Currently unavailable

Cub Cadet HG-2510010

Kit, Overhaul Seal

Note: Includes items 2-4, 6, 8, 14, 19, 20 & 22

$

$

Not available
