1440 (145-633-100) - Cub Cadet Garden Tractor (SN: 821060 - 880000) Engine Electrical Parts Diagram

Garden Tractor

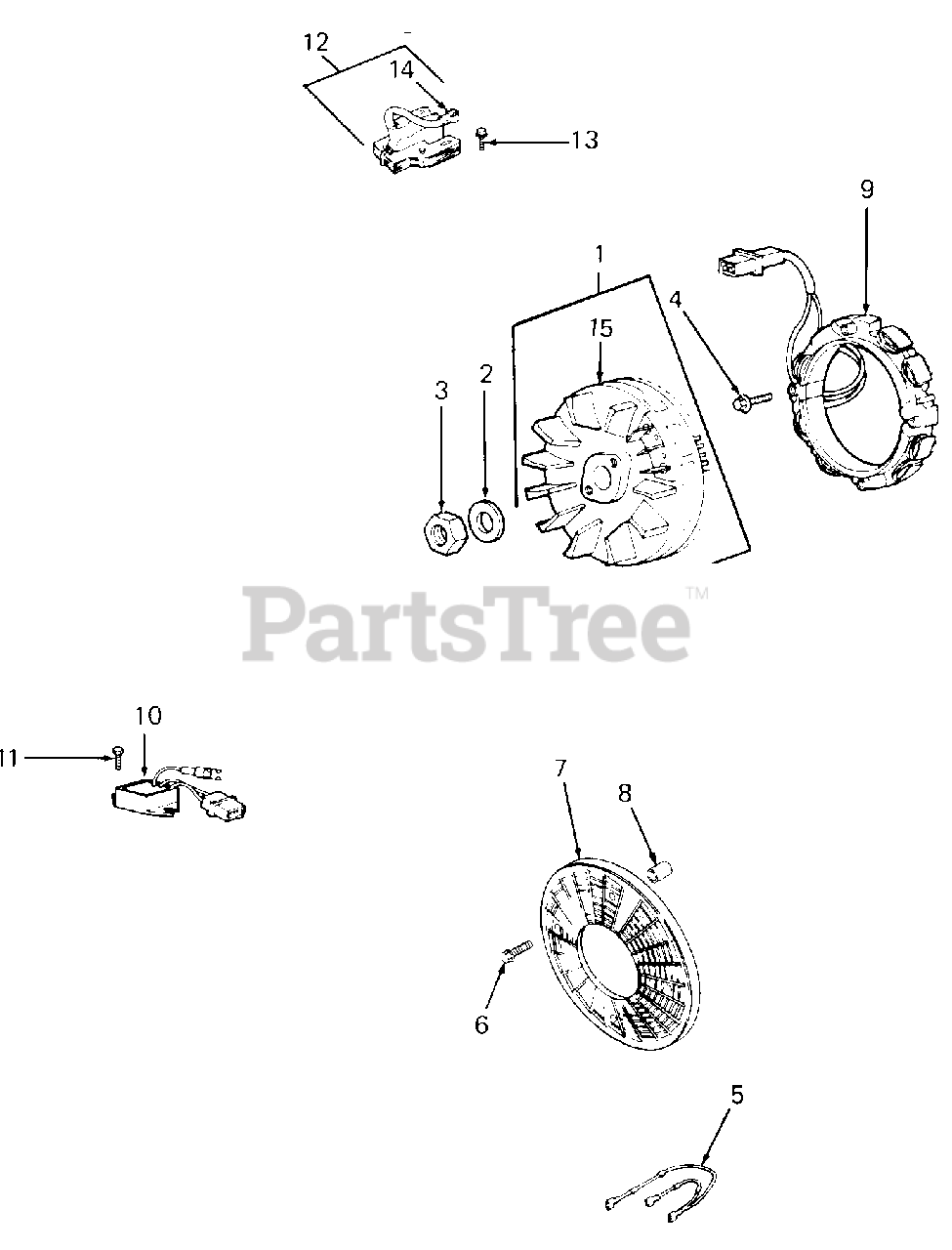

Engine Electrical Parts Diagram

  • Title

1

Cub Cadet BS-807531

Flywheel & Ring Gear

$

$

Not available

2

Cub Cadet BS-805007

Washer, Spring

$

$

Not available

3

Cub Cadet BS-805021

Nut, Hex

$

$

Not available

4

Cub Cadet BS-805407

Screw, Mounting
(Superseded to BS-692066)

$3.49

$

In Stock, Qty 7

0

5

Cub Cadet BS-493792

Wire, Ground
(Superseded to BS-844547)

$17.99

$

In Stock, Qty 20+

0

6

Cub Cadet BS-805447

Screw, Sems
(Superseded to BS-691647)

$3.99

$

In Stock, only 4 left!

0

7

Cub Cadet 703-2164

Screen, Rotating

$

$

Not available

8

Cub Cadet BS-805402

Spacer
(Superseded to BS-691500)

$7.49

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-393295

Stator, 16 Amp
(Superseded to BS-592830)

$101.99

$

In Stock, Qty 20+

0

10

Cub Cadet BS-394890

Regulator
(Superseded to BS-845907)

$61.99

$

In Stock, Qty 20+

0

11

Cub Cadet BS-805448

Screw, Mounting
(Superseded to BS-692067)

$3.99

$

In Stock, Qty 11

0

12

Cub Cadet BS-492341

Armature
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

13

Cub Cadet BS-805407

Screw, Mounting
(Superseded to BS-692066)

$3.49

$

In Stock, Qty 7

0

14

Cub Cadet BS-221798

Terminal
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-807805

Gear, Flywheel Ring

$

$

Currently unavailable
