1440 (144-633-100) - Cub Cadet Garden Tractor (SN: 821060 - 880000) Transmission Controls Parts Diagram

Garden Tractor

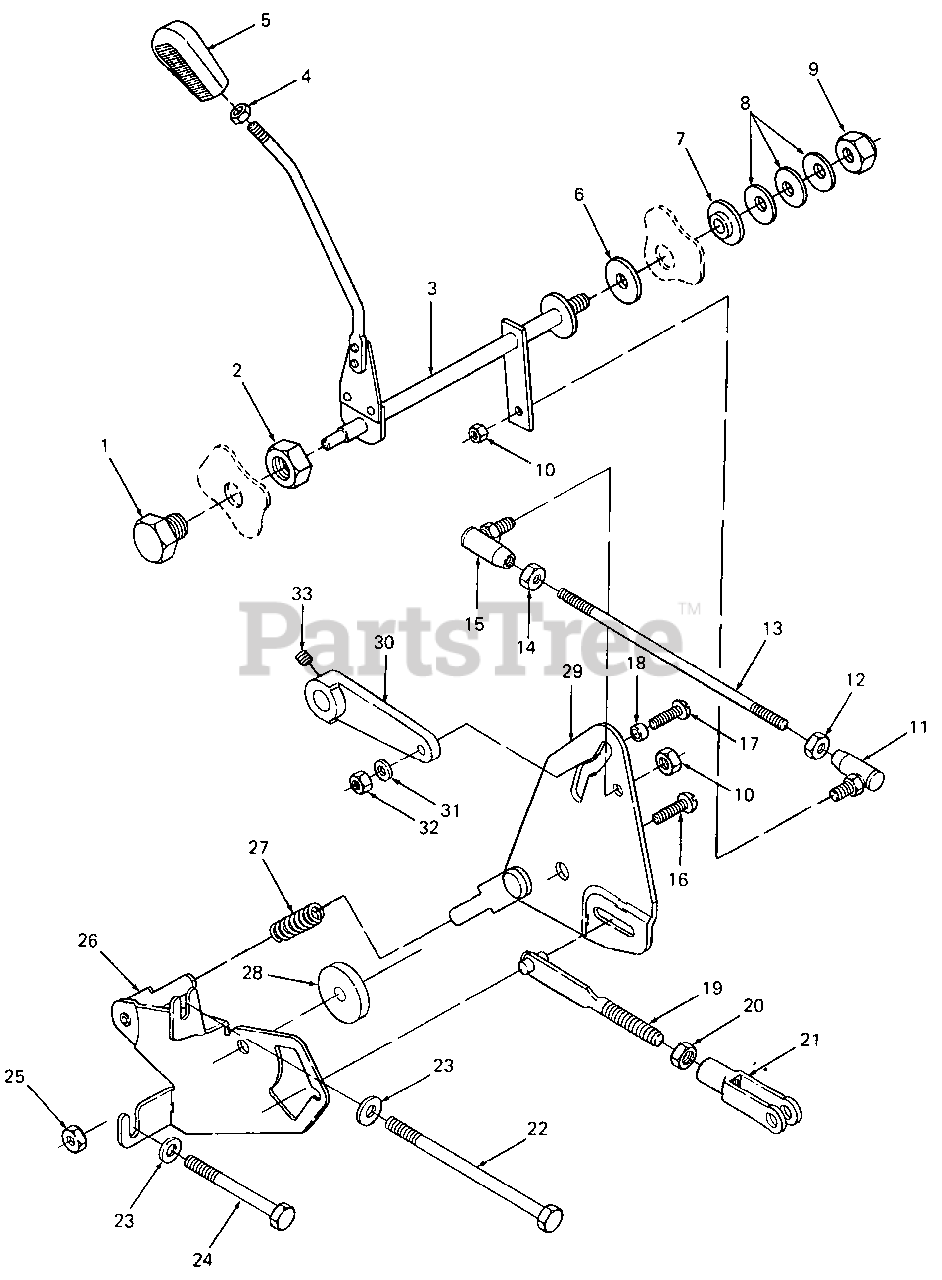

Transmission Controls Parts Diagram

  • Title

1

Cub Cadet 710-3033

Screw, Rockshaft Bearing, 3/4-16 X .75 Lg

$

$

Not available

2

Cub Cadet 712-3026

Nut, Hex Jam, 3/4-16 GR5

$4.99

$

In Stock, Qty 7

0

3

Cub Cadet 703-1838

Shaft Assy, Cross

$

$

Not available

4

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 16

0

5

Cub Cadet 731-3108

Knob, Speed Control

$

$

Not available

6

Cub Cadet 723-3055

Disc, Friction
(Superseded to 923-3055)

$

$

Not available

7

Cub Cadet 748-3024

Spacer, Shouldered

$

$

Not available

8

Cub Cadet 736-3022

Washer, Bell
(Superseded to 936-3022)

$5.49

$

In Stock, only 2 left!

0

9

Cub Cadet 712-3053

Nut, Hex Top Lock, 1/2-20
(Superseded to 912-3053)

$

$

Not available

10

Cub Cadet 712-0305

Nut, Hex Patch Lock, 5/16-24
(Superseded to 912-0237)

$

$

Not available

11

Cub Cadet 723-3011

Ball Joint, 5/16-24
(Superseded to 923-3011)

$37.99

$

In Stock, only 4 left!

0

12

Cub Cadet 712-3025

Nut, Hex Jam, 5/16-24 Trd

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 747-3157

Rod, Connecting

$

$

Not available

14

Cub Cadet 712-3045

Nut, Hex Jam, 5/16-24 LH Trd
(Superseded to 912-3045)

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 723-3012

Ball Joint, 5/16-24 LH Trd
(Superseded to 923-3012)

$42.99

$

In Stock, only 4 left!

0

16

Cub Cadet 710-0971

Screw, Truss Hd, 5/16-18 X 1

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet 710-0166

Screw, Truss Hd, 1/4-20 X 1
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

18

Cub Cadet 750-3062

Spacer, 3/8 OD X .700

$

$

Not available

19

Cub Cadet 703-2105

Rod, Control

$

$

Not available

20

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

21

Cub Cadet 719-3013

Clevis Adjustment

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 711-3037

Pin, Clevis
(Superseded to 911-0415)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0140

Washer, Flat, .385 X .62 X .063 Thk

$7.49

$

In Stock, Qty 6

0

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia

$4.49

$

In Stock, Qty 12

0

22

Cub Cadet 710-3226

Bolt, Hex Patch, 5/16-18 X 5.5 Lg GR5

$14.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-3008

Washer, Flat, .344 X .750 X .105 Thk
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-3227

Bolt, Hex Patch, 5/16-18 X 3.0 Lg GR5

$

$

Not available

25

Cub Cadet 712-3007

Nut, Hex Jam, 5/16

$6.99

$

In Stock, only 2 left!

0

26

Cub Cadet 603-0010

Arm Assy, Cam
(Superseded to 903-0010)

$

$

Not available

27

Cub Cadet 732-0330

Spring, Compression
(Superseded to 932-0330)

$

$

Not available

28

Cub Cadet 738-3094

Spacer, Shouldered

$

$

Not available

29

Cub Cadet 603-0011

Cam Assy, Return

$

$

Not available

30

Cub Cadet 748-3043

Pintle, Control

$

$

Not available

31

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

32

Cub Cadet 712-3006

Nut, Hex, 1/4

$4.99

$

In Stock, Qty 17

0

33

Cub Cadet 710-3242

Set Screw, Socket w/Patch

$

$

Not available
