144-998P401 - Yard-Man Garden Tractor (1994) Electrical/Switches Parts Diagram

Garden Tractor

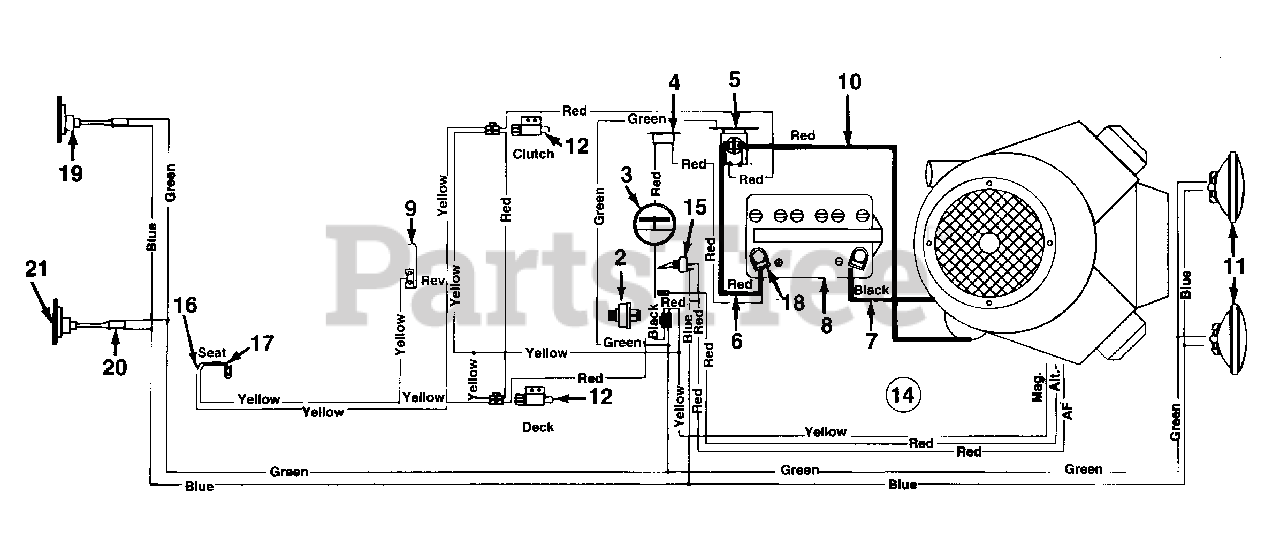

Electrical/Switches Parts Diagram

  • Title

?1

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

Note: (Not Shown)

$9.49

$

In Stock, only 1 left!

0

2

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

Note: Optional

$43.99

$

In Stock, Qty 5

0

3

MTD 725-3141

Ammeter
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

4

MTD 725-1382

Circuit Breaker 20 Amp

$

$

Not available

5

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

6

MTD 725-0558

Electric Wire

$

$

Currently unavailable

7

MTD 725-0994

Electric Wire
(Superseded to 629-0739)

$

$

Not available

8

MTD 725-0453B

Battery

$

$

Not available

9

MTD 725-1644

Spring Switch (Reverse Safety)

$9.99

$

In Stock, Qty 11

0

10

MTD 725-0562

Electric Wire
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

11

MTD 725-0222

Headlights
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

12

MTD 725-1657

Safety Switch (PTO & Clutch)
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

14

MTD 629-0119

Wire Harness

$

$

Currently unavailable

15

MTD 725-0646

Light Switch
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

16

MTD 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

17

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

18

MTD 725-0662

Battery Boot

$

$

Not available

19

MTD 725-0612

Taillight

Note: Optional

$

$

Not available

20

MTD 725-1380

Taillight Harness

Note: Optional

$

$

Not available

21

MTD 725-3020

Taillight Bulb

Note: Optional

$

$

Not available
