144-0390 - Toro Electric Deck Lift Kit for Z Master 4000 Series Mower Electric Deck Lift Assembly No. 144-0390 Parts Diagram

Electric Deck Lift Kit for Z Master 4000 Series Mower

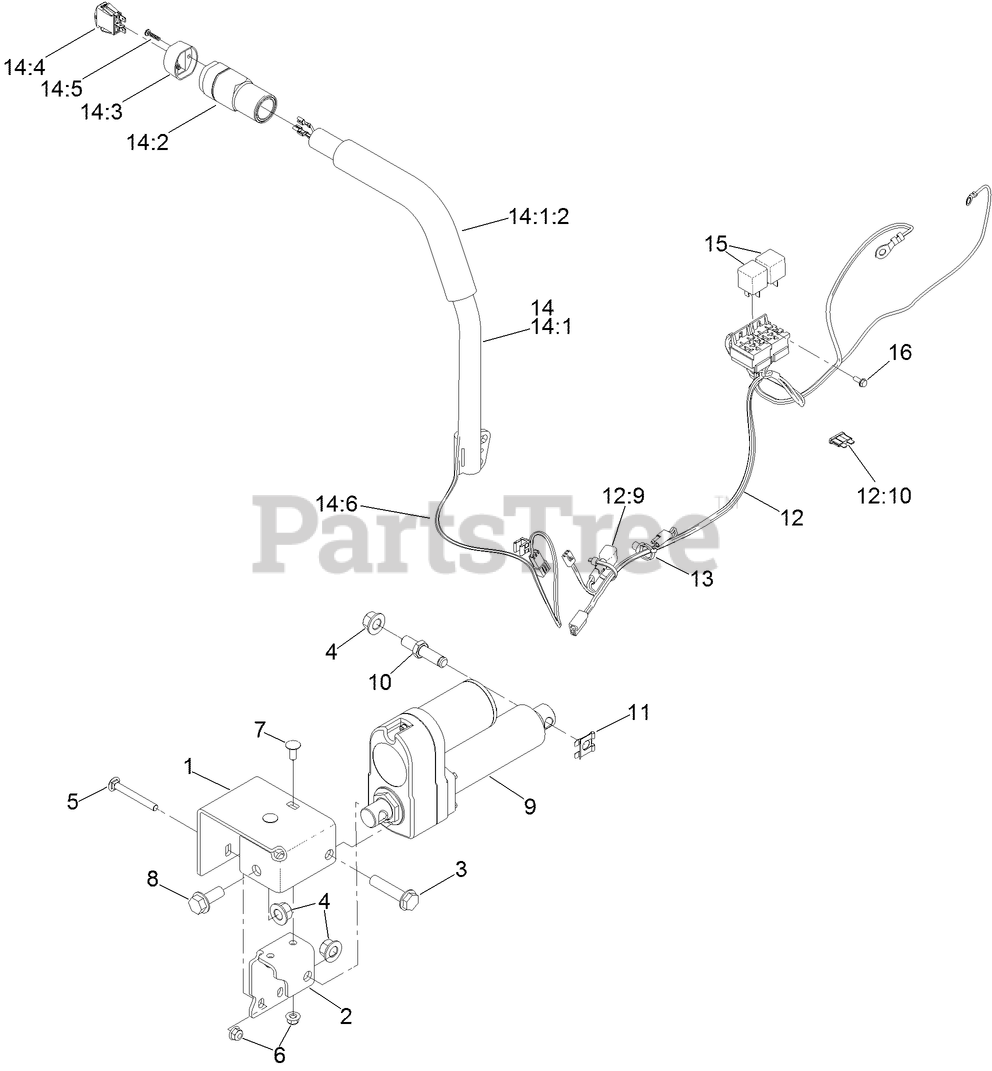

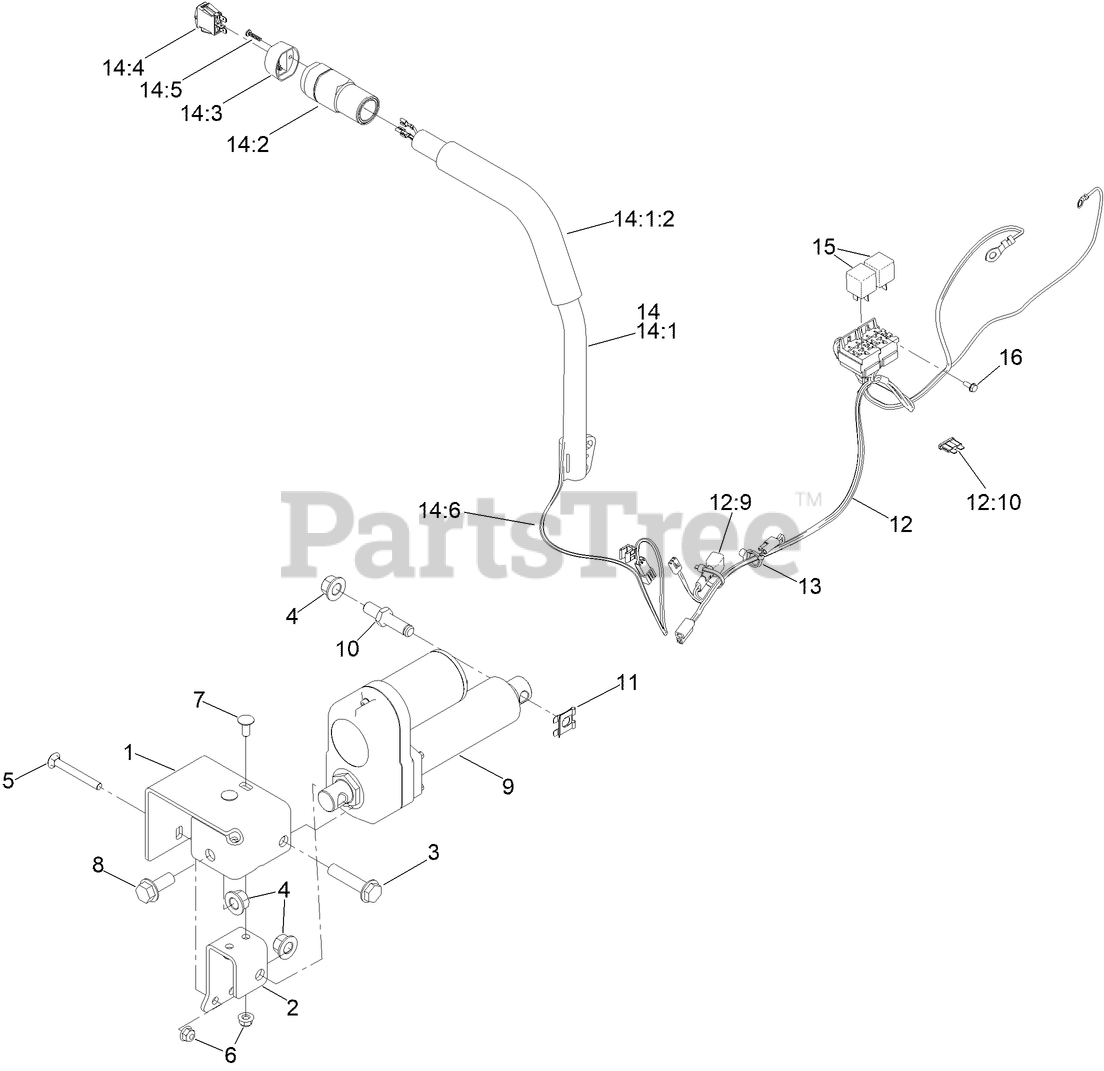

Electric Deck Lift Assembly No. 144-0390 Parts Diagram

  • Title

1

Toro 144-2667-01

BRACKET-MOUNT, OUTER
(Superseded to 145-3663-01)

$31.99

$

Usually ships in 0 days

0

2

Toro 144-2668-01

BRACKET-MOUNT, INNER
(Superseded to 145-3664-01)

$27.99

$

Usually ships in 0 days

0

3

Toro 3234-46

SCREW-HHF

$14.99

$

Usually ships in 3-6 days

0

4

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

5

Toro 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 15

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 137-3061

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

8

Toro 3234-38

SCREW-HHF

$6.49

$

In Stock, only 3 left!

0

9

Toro 139-8111

ACTUATOR-LINEAR

$

$

Not available

10

Toro 139-8135

PIN-PIVOT, ACTUATOR

$18.99

$

Usually ships in 3-6 days

0

11

Toro 138-8491

CLIP-PIN

$7.49

$

In Stock, only 2 left!

0

12

Toro 140-1200

HARNESS-WIRE, DECK LIFT

$111.99

$

Usually ships in 3-6 days

0

12:9

Toro 103-3895

DIODE

$64.99

$

In Stock, only 4 left!

0

12:10

Toro 109101

FUSE-BLADE, 20 AMP

$2.49

$

In Stock, Qty 6

0

13

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

14

Toro 140-8020

HANDLE ASM-LH

$224.99

$

Usually ships in 3-6 days

0

14:1

HANDLE ASM - LH

Note: Not serviced separately

$

$

Not available

14:1:2

Toro 109-5668

GRIP-CONTROL, LEVER

$14.99

$

In Stock, Qty 7

0

14:2

Toro 125-2662

CASE ASM

$53.99

$

Usually ships in 3-6 days

0

14:3

Toro 121-3399

CAP-SWITCH

$10.99

$

Usually ships in 3-6 days

0

14:4

Toro 140-1228

Air Cleaner Element

$51.99

$

Usually ships in 3-6 days

0

14:5

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

14:6

Toro 144-0354

HARNESS-WIRE, HANDLE

$46.99

$

Usually ships in 3-6 days

0

15

Toro 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

16

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0
