143Y849H019 - Turf Power Garden Tractor (1993) (Agway) PTO Clutch Parts Diagram

Garden Tractor

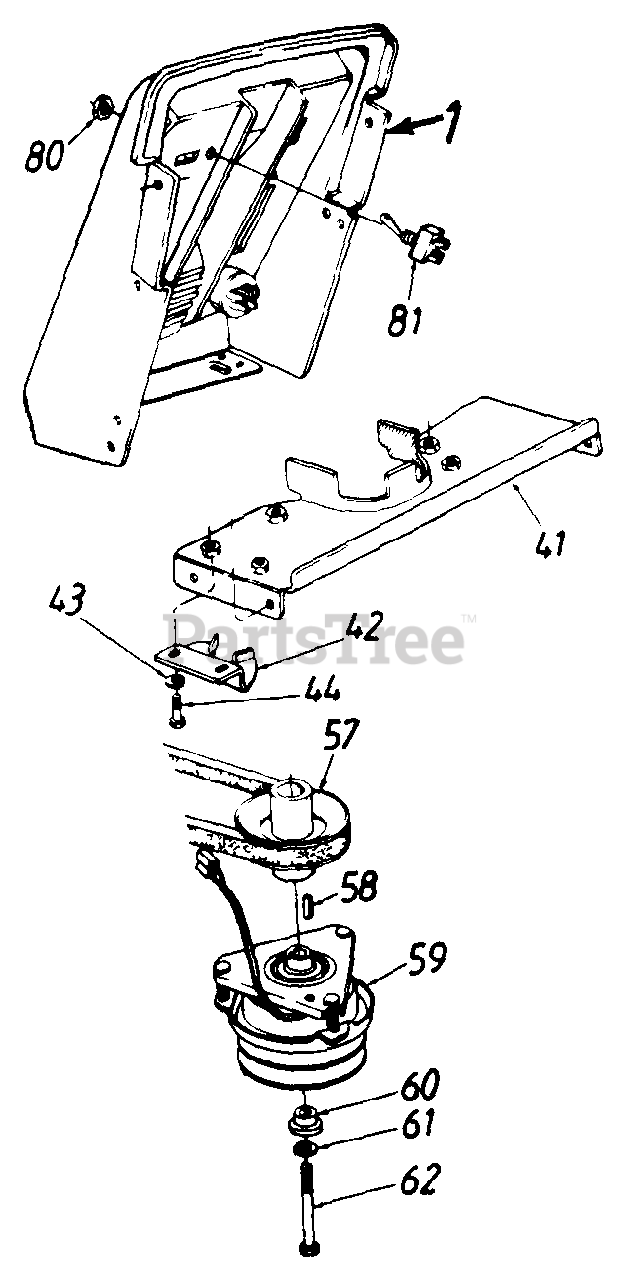

PTO Clutch Parts Diagram

  • Title

1

MTD 731-1047A

Dash Panel

$

$

Not available

41

MTD 17357

Belt Guard Brkt.
(Superseded to 17358D-0637)

$

$

Not available

42

MTD 17418

Torque Bracket

Variations

MTD 17418-0637

No Longer Available BRACKET-TO - POWDER BLACK (0637)

$

$

Not available

$

$

43

MTD 736-0242

Bell-Wash .345" I.D. x 88" I.D.

$4.49

$

In Stock, Qty 20+

0

44

MTD 710-3008

Hex Bolt 5/16-18 x 75" Lg (Gr 5)

$4.49

$

In Stock, Qty 20+

0

57

MTD 756-0546A

Engine Pulley

$

$

Not available

58

MTD 714-0128

Sq. Key 1/4" x 1" Lg.

$4.99

$

In Stock, Qty 6

0

59

MTD 717-0949

Electric Clutch
(Superseded to 917-1434)

$634.99

$

Usually ships in 3-6 days

0

60

MTD 738-0785

Shld. Spacer
(Superseded to 938-0785)

$25.99

$

In Stock, Qty 9

0

61

MTD 736-0171

L-Wash 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

62

MTD 710-1049

Hex Bolt 7/16-20 x 3.75" Lg.

$10.99

$

Usually ships in 3-6 days

0

80

UNKNOWN

$

$

Not available

81

UNKNOWN

$

$

Not available
