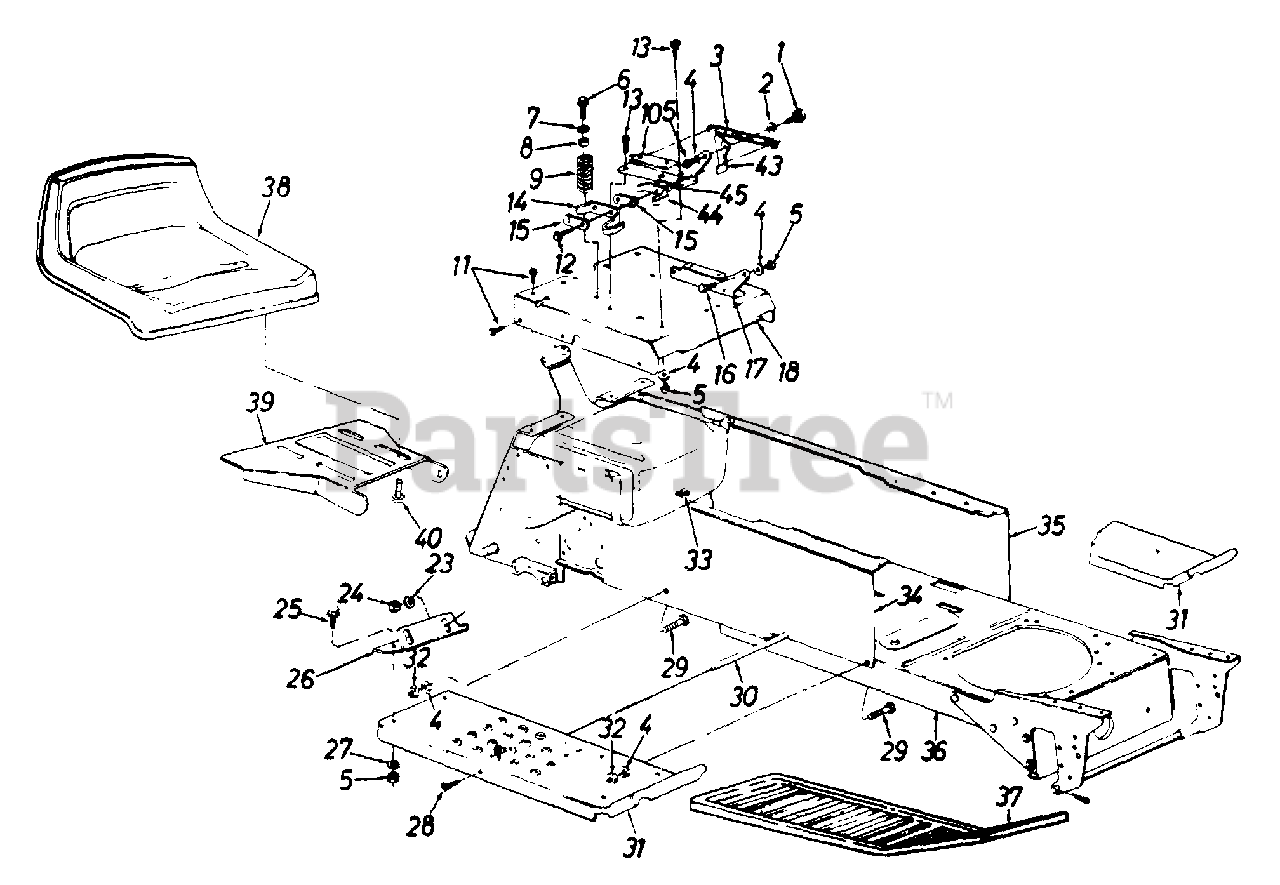

143Y839H019 - Turf Power Garden Tractor (1993) (Agway) Seat/Frame Parts Diagram

Garden Tractor

Seat/Frame Parts Diagram

  • Title

1

MTD 738-0296

Shld. Bolt .437" Dia. x .162"

$4.49

$

In Stock, Qty 20+

0

2

MTD 736-0141

Spr. Wash..445" I.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

3

MTD 732-0581B

Ext. Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

4

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

5

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0601

Hex Wash. Hd. Tap Scr. 5/16-18 x .7" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

7

MTD 736-0159

Fl-Wash..344" I.D.

$4.49

$

In Stock, Qty 20+

0

8

MTD 722-0160

Bushing

$

$

Not available

9

MTD 732-0588

Compression Spring

$15.99

$

In Stock, only 2 left!

0

10

MTD 17702

Seat Pivot Brkt. Support - R.H.
(Superseded to 17702-0637)

Variations

MTD 17702-0637

BRACKET-SEAT SUP-R - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 15

0

13

MTD 710-1228

Torx Hd. AB-Tap Scr. 5/16-18 x .75' Lg.
(Superseded to 710-0726)

$4.49

$

In Stock, Qty 20+

0

14

MTD 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

15

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

16

MTD 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

17

MTD 17701

Seat Pivot Brkt. Support - L.H.
(Superseded to 17701-0637)

Variations

MTD 17701-0637

BRACKET-SEAT SUP-L - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 16848C

Seat Plate
(Superseded to 983-0108A-0637)

Variations

MTD 16848C-0637

BRACKET ASSY-PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

24

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

25

MTD 710-0116

Hex Bolt 5/16-18 x 75" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

26

MTD 17406

Fender Bracket - R.H.
(Superseded to 17406-0637)

Variations

MTD 17406-0637

Fender Bracket-R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17407

Fender Bracket - L.H.

Variations

MTD 17407-0637

No Longer Available BRKT-FENDE - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 736-0242

Bell-Wash..345" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

29

MTD 710-1012

Rib Neck Bolt 5/16-24 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

30

MTD 738-0435

Running Board Rod

$

$

Not available

31

MTD 16922

Running Board - R.H.

Variations

MTD 16922-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16922-0499

No Longer Available RUNNING BO - CUB BEIGE (0499)

$

$

Not available

MTD 16922-0629

No Longer Available RUNNING BO - SILVER FLAKE (0629)

$

$

Not available

MTD 16922-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 16922-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16922-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 16922-0650

No Longer Available RUNNING BO - RED METALLIC (0650)

$

$

Not available

MTD 16922-0660

No Longer Available RUNNING BO - TEAL (0660)

$

$

Not available

MTD 16922-0662

No Longer Available RUNNING BO - OYSTER GRAY (0662)

$

$

Not available

MTD 16922-0665

No Longer Available RUNNING BO - YARDMAN GREEN (0665)

$

$

Not available

MTD 16922-0667

No Longer Available RUNNING BO - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16922-0674

No Longer Available RUNNING BO - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16922-0686

No Longer Available RUNNING BO - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 16922-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 16922-0691

No Longer Available RUNNING BO - BLACK JACK (0691)

$

$

Not available

MTD 16922-0692

No Longer Available RUNNING BO - AGWAY BLUE (0692)

$

$

Not available

MTD 16922-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

MTD 16921

Running Board - L.H.

Variations

MTD 16921-0483

No Longer Available RUNNING BO - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16921-0498

No Longer Available RUNNING BO - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16921-0499

No Longer Available RUNNING BO - CUB BEIGE (0499)

$

$

Not available

MTD 16921-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 16921-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 16921-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16921-0648

No Longer Available RUNNING BO - TECH GRAY (0648)

$

$

Not available

MTD 16921-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 16921-0662

No Longer Available RUNNING BO - OYSTER GRAY (0662)

$

$

Not available

MTD 16921-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 16921-0667

No Longer Available RUNNING BO - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16921-0674

No Longer Available RUNNING BO - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16921-0686

No Longer Available RUNNING BO - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 16921-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 16921-0691

No Longer Available RUNNING BO - BLACK JACK (0691)

$

$

Not available

MTD 16921-0692

No Longer Available RUNNING BO - AGWAY BLUE (0692)

$

$

Not available

MTD 16921-0709

No Longer Available RUNNING BO - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

32

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

33

MTD 726-0139

Speed Nut #102

$6.99

$

In Stock, only 1 left!

0

34

MTD 17360A

R.H. Side Frame

Note: New Part

$

$

Not available

35

MTD 17361B

L.H. Side Frame

Note: New Part

$

$

Not available

36

MTD 17359B

Lower Frame

Note: New Part

Variations

MTD 17359B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 731-1052

Rubber Foot Pad

$

$

Not available

38

MTD 757-0338

Seat 10-5/8" High
(Superseded to 957-0360A)

$

$

Not available

39

MTD 156070

Seat Pivot Bracket

$

$

Currently unavailable

40

MTD 710-0623

Hex Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

43

MTD 17239A

Seat Lift Bracket
(Superseded to 17239C)

$

$

Not available

44

MTD 725-1439

Seat Spring Switch

$8.49

$

In Stock, Qty 8

0

45

MTD 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0
