143Y839H019 - Turf Power Garden Tractor (1993) (Agway) Drive/Pedal Assembly/Speed Control Assembly/Hitch Plate Parts Diagram

Garden Tractor

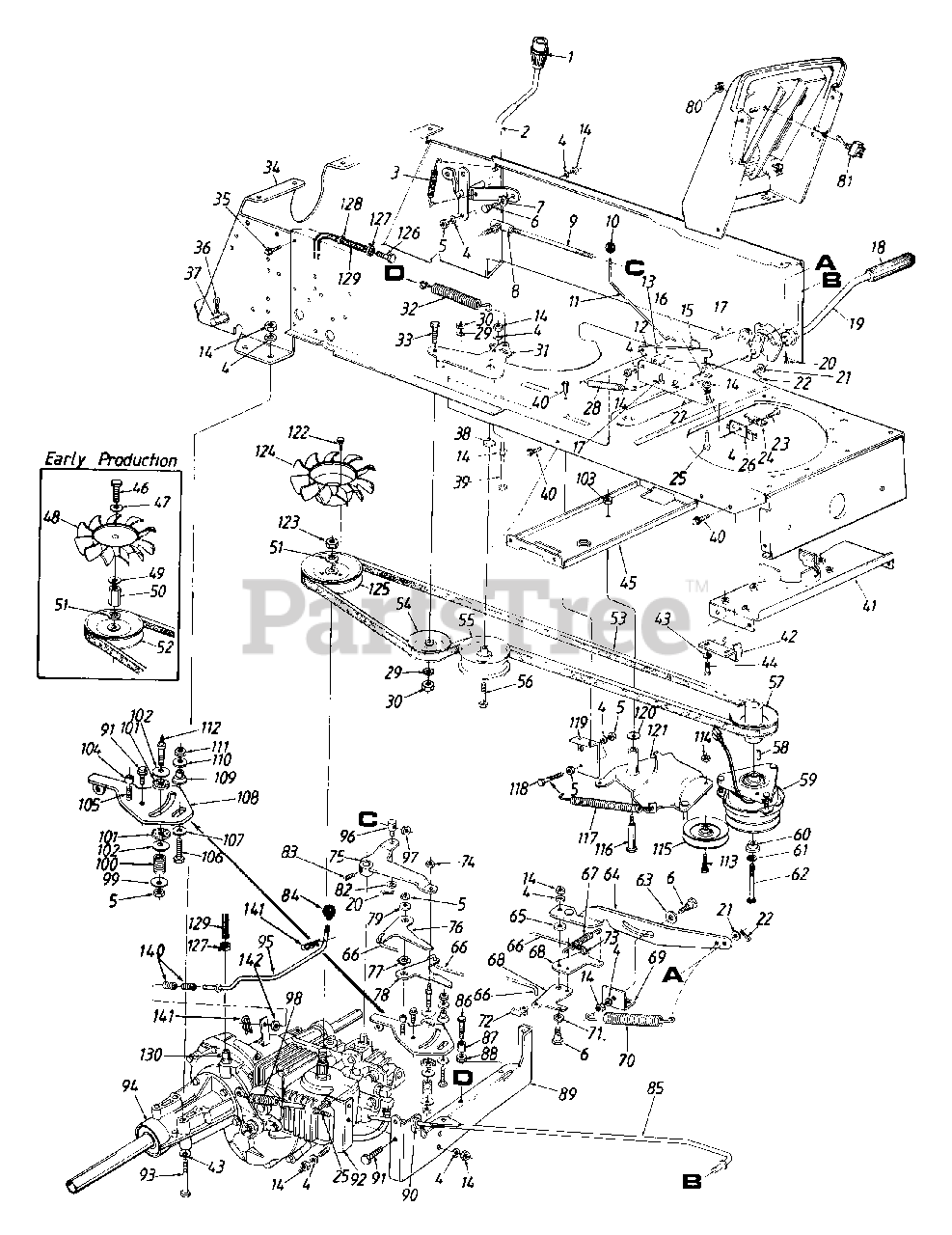

Drive/Pedal Assembly/Speed Control Assembly/Hitch Plate Parts Diagram

  • Title

1

MTD 720-0218

Shift Knob

$19.99

$

In Stock, only 1 left!

0

2

MTD 647-0010

Speed Control Lever Ass'y.

Note: New Part

$

$

Not available

3

MTD 732-0433

Ext. Spring 2.75" Lg.

$

$

Not available

4

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

5

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

6

MTD 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

7

MTD 736-0141

Spr. Wash..445" I.D. x.75" O.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

8

MTD 723-3012

Ball Joint 5/16-24 Thd.
(Superseded to 923-3012)

$42.99

$

In Stock, only 1 left!

0

9

MTD 747-0857

Speed Selector Adjusting Rod

Note: New Part

$

$

Not available

10

MTD 720-0166

Ball Knob

$

$

Not available

11

MTD 747-0876

Brake Lockout Rod

Note: New Part

$

$

Not available

12

MTD 16980

Brake Lockout Brkt.

Variations

MTD 16980-0637

No Longer Available BRACKET-LO - POWDER BLACK (0637)

$

$

Not available

$

$

13

MTD 750-0214

Spacer .34" I.D. x .88" O.D.

$

$

Not available

14

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 748-0234

Shld. Spacer .27" Lg.

$4.49

$

Usually ships in 3-6 days

0

16

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

17

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

18

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

19

MTD 17911

Foot Pedal Ass'y.

Note: New Part

Variations

MTD 17911-0637

No Longer Available PEDAL-ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 714-0111

Cotter Pin 3/32" Dia. x 1" Lg.

$4.99

$

In Stock, Qty 13

0

21

MTD 736-0275

Fl-Wash..34" I.D. x .68" O,D.

$6.99

$

Usually ships in 3-6 days

0

22

MTD 714-0115

Cotter Pin 1/8" Dia. x 1" Lg.

$3.99

$

Usually ships in 3-6 days

0

23

MTD 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

24

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

25

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

26

MTD 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

27

MTD 16924A

Clutch Ass'y. Mtg. Brkt.

$

$

Not available

28

MTD 732-0395

Ext. Spring 2.51" Lg.
(Superseded to 932-0395)

$

$

Not available

29

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

30

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

31

MTD 783-0056

Idler Brkt.

Note: New Part

$

$

Currently unavailable

32

MTD 732-0470

Ext. Spring 4.75" Lg.
(Superseded to 932-0470A)

$9.99

$

In Stock, Qty 7

0

33

MTD 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.

$5.99

$

In Stock, only 1 left!

0

34

MTD 17344A

Hitch Plate

Note: New Part

Variations

MTD 17344A-0637

No Longer Available PLATE-HITC - POWDER BLACK (0637)

$

$

Not available

$

$

35

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

36

MTD 714-0147

Hitch Pin

$4.99

$

In Stock, Qty 7

0

37

MTD 738-0482

Hitch Rod

$

$

Not available

38

MTD 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

39

MTD 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 2 left!

0

40

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

41

MTD 17358C

Belt Guard Brkt.
(Superseded to 17358D-0637)

$

$

Not available

42

MTD 17418

Torque Bracket

Variations

MTD 17418-0637

No Longer Available BRACKET-TO - POWDER BLACK (0637)

$

$

Not available

$

$

43

MTD 736-0242

Bell-Wash..345" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

44

MTD 710-3008

Hex Cap Scr. 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

45

MTD 16888

Deck Idler Support Brkt.
(Superseded to 16888A-0637)

$56.99

$

Usually ships in 3-6 days

0

46

MTD 710-1043A

Hex Cap Bolt 9/16-18 x.5" Lg.

Note: New Part

$

$

Not available

47

MTD 736-0427

Bell-Wash..567" I.D. x 1.125" O.D.
(Superseded to 936-0427)

$

$

Not available

48

MTD 731-0974

Fan

$

$

Not available

49

MTD 736-0516

Fl-Wash. 9/16" I.D. x 1.75" O.D.

$

$

Not available

50

MTD 712-0356

Fan Adapter Nut 9/16-18 Thd.

$

$

Not available

51

MTD 736-0508

Int. L-Wash. 9/16" I.D.

$3.99

$

Usually ships in 3-6 days

0

52

MTD 756-0635

Input Pulley
(Superseded to 756-0635A)

Note: New Part

$66.99

$

Usually ships in 3-6 days

0

53

MTD 754-0435

"V"-Belt
(Superseded to 954-0435)

$70.99

$

In Stock, only 4 left!

0

54

MTD 756-0116

Idler Pulley
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

55

MTD 756-0515

Fl-Idler Pulley

$

$

Not available

56

MTD 710-3096

Hex Bolt 3/8-16 x 2" Lg. (Gr. 8)

Note: New Part

$7.99

$

Usually ships in 3-6 days

0

57

MTD 756-0637

Engine Pulley

Note: New Part

$

$

Not available

58

MTD 714-0128

Sq.-Key 1/4" x 1" Lg.

$4.99

$

In Stock, Qty 6

0

59

MTD 717-0949

Electric Clutch
(Superseded to 917-1434)

$634.99

$

Usually ships in 3-6 days

0

60

MTD 738-0785

Shld. Spacer
(Superseded to 938-0785)

$25.99

$

In Stock, only 1 left!

0

61

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

62

MTD 710-1049

Hex Cap Bolt 7/16-20 x 3.75" Lg.

$10.99

$

Usually ships in 3-6 days

0

63

MTD 736-0179

Fl-Wash..531" I.D. x 1.25" O.D.

$4.99

$

In Stock, only 2 left!

0

64

MTD 683-0030

Neutral Return Link Ass'y.

Note: New Part

$

$

Not available

65

MTD 736-3074

Fl-Wash..344" I.D. x 1.12" O.D. (Hdn)

$

$

Not available

66

MTD 747-0880

Connecting Rod

Note: New Part

$

$

Not available

67

MTD 732-0387

Ext. Spring 2.5" Lg.

$

$

Not available

68

MTD 17757

Balancer Brkt.

$

$

Not available

69

MTD 17755A

Bracket

Note: New Part

$

$

Not available

70

MTD 732-0717

Ext. Spring 3.94" Lg.

Note: New Part

$

$

Not available

71

MTD 736-0141

Spr.-Wash..445" I.D. x .75" O.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

72

MTD 726-0281

Rod End Clevis Clip - R.H.

$

$

Not available

73

MTD 726-0280

Rod End Clevis Clip - L.H.

$

$

Not available

74

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

75

MTD 683-0032

Pintle Bracket Ass'y.

Note: New Part

$

$

Not available

76

MTD 783-0053

Flat Scissors

Note: New Part

$

$

Not available

77

MTD 736-0174

Spr. Wash..625" I.D. x.885" O.D.

$6.99

$

In Stock, only 2 left!

0

78

MTD 783-0054

Offset Scissors

Note: New Part

$

$

Not available

79

MTD 736-3078

Fl-Wash..344" I.D. x 1" O.D. (Hdn)

$4.49

$

In Stock, only 4 left!

0

80

MTD 712-3014

Hex Nut 1/2-27 Thd.

$

$

Not available

81

MTD 725-0893

Toggle Switch
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

82

MTD 736-0185

Fl-Wash..406" I.D. x .75" O.D.

$3.99

$

In Stock, only 3 left!

0

83

MTD 710-0257

Hex Socket Set Screw

Note: New Part

$

$

Not available

84

MTD 720-0187

Ball Knob

$10.99

$

Usually ships in 3-6 days

0

85

MTD 647-0006

Brake Rod Ass'y.

Note: New Part

$

$

Not available

86

MTD 710-0778

Hex Wash. Hd. Scr. 1/4-20 x 1.5" Lg.

$4.49

$

In Stock, only 3 left!

0

87

MTD 750-0555

Spacer .39" Lg.

$

$

Not available

88

MTD 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 19

0

89

MTD 783-0051

Transaxle Torque Brkt.

Note: New Part

Variations

MTD 783-0051-0637

No Longer Available BRKT-TRANS - POWDER BLACK (0637)

$

$

Not available

$

$

90

MTD 731-0555A

Grommet

$

$

Not available

91

MTD 710-0604

Hex Wash. Hd. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

92

MTD 783-0050

Transaxle Torque Brace

Note: New Part

Variations

MTD 783-0050-0637

No Longer Available BRACE-TRAN - POWDER BLACK (0637)

$

$

Not available

$

$

93

MTD 710-0189

Hex Bolt 5/16-18 x 3" Lg.

$6.49

$

In Stock, Qty 5

0

94

MTD 718-0241

Transaxle

Note: New Part

$

$

Not available

95

MTD 747-0909

Bypass Rod

Note: New Part

$

$

Not available

96

MTD 711-0198

Ferrule 3/8-24 Thd.
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

97

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

98

MTD 732-0716

Ext. Spring 4.01" Lg.
(Superseded to 732-0716D)

$13.99

$

In Stock, only 2 left!

0

99

MTD 736-3008

Fl-Wash..3/2" I.D. x.75" O.D.
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

100

MTD 732-0718

Comp. Spring 1.19" Lg.

Note: New Part

$

$

Not available

101

MTD 761-0196

Friction Washer
(Superseded to 961-0196)

$9.49

$

Usually ships in 3-6 days

0

102

MTD 736-0219

Bell-Wash..40" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

103

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

104

MTD 750-0808

Spacer

$

$

Not available

105

MTD 710-1012

Rib Neck Bolt 5/16-18 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

106

MTD 710-0299

Hex Bolt 1/4-28 x 1" Lg. (Gr. 5)

$4.49

$

Usually ships in 3-6 days

0

107

MTD 736-3090

Fl-Wash..26" I.D. x .72" O.D.

$6.99

$

In Stock, only 1 left!

0

108

MTD 783-0052

Scissors Mtg. Brkt.

Note: New Part

$

$

Not available

109

MTD 750-0918

Centering Gauge Spacer

$

$

Not available

110

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

111

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

112

MTD 738-0879

Friction Disc Stud
(Superseded to 938-0879)

Note: New Part

$15.99

$

Usually ships in 3-6 days

0

113

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

114

MTD 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 4 left!

0

115

MTD 756-0293A

V-Belt Idler
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

116

MTD 738-0129

Shld Bolt .498" Dia. x 2.05

$11.99

$

In Stock, only 1 left!

0

117

MTD 732-0180

Ext. Spring 4" Lg.
(Superseded to 932-0180)

$12.99

$

In Stock, only 2 left!

0

118

MTD 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

119

MTD 13833

Parking Brake Mtg. Brkt.

$

$

Not available

120

MTD 736-0105

Bell-Wash..38" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

121

MTD 14076A

Idler Brkt. Deck Ass'y.
(Superseded to 94076A-0637)

$

$

Not available

122

MTD 710-3007

Hex Wash. Hd. Tap Scr. #12 x 3/8" Lg.

$4.49

$

In Stock, Qty 20+

0

123

MTD 712-3035

Hex Jam Nut 9/16-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

124

MTD 731-1449

Fan
(Superseded to 931-1449A)

$35.99

$

In Stock, Qty 10

0

125

MTD 756-0635A

Input Pulley

$66.99

$

Usually ships in 3-6 days

0

126

MTD 731-1476

Plastic Vent
(Superseded to 731-1480)

$15.99

$

Usually ships in 3-6 days

0

127

MTD 735-0149

Rubber Grommet
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

128

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

129

MTD 751-0588

Hose 1/2" I.D. x 18" Lg.

$29.99

$

Usually ships in 3-6 days

0

130

MTD 737-0294

Hose Fitting

$

$

Not available

140

MTD 732-0145

Comp. Spring 1" Lg.

$4.49

$

In Stock, only 1 left!

0

141

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

142

MTD 736-0463

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, only 2 left!

0
