143V834H401 - Yard-Man Garden Tractor (1993) Hood Assembly/Seat/Frame/Grille/Fender Parts Diagram

Garden Tractor

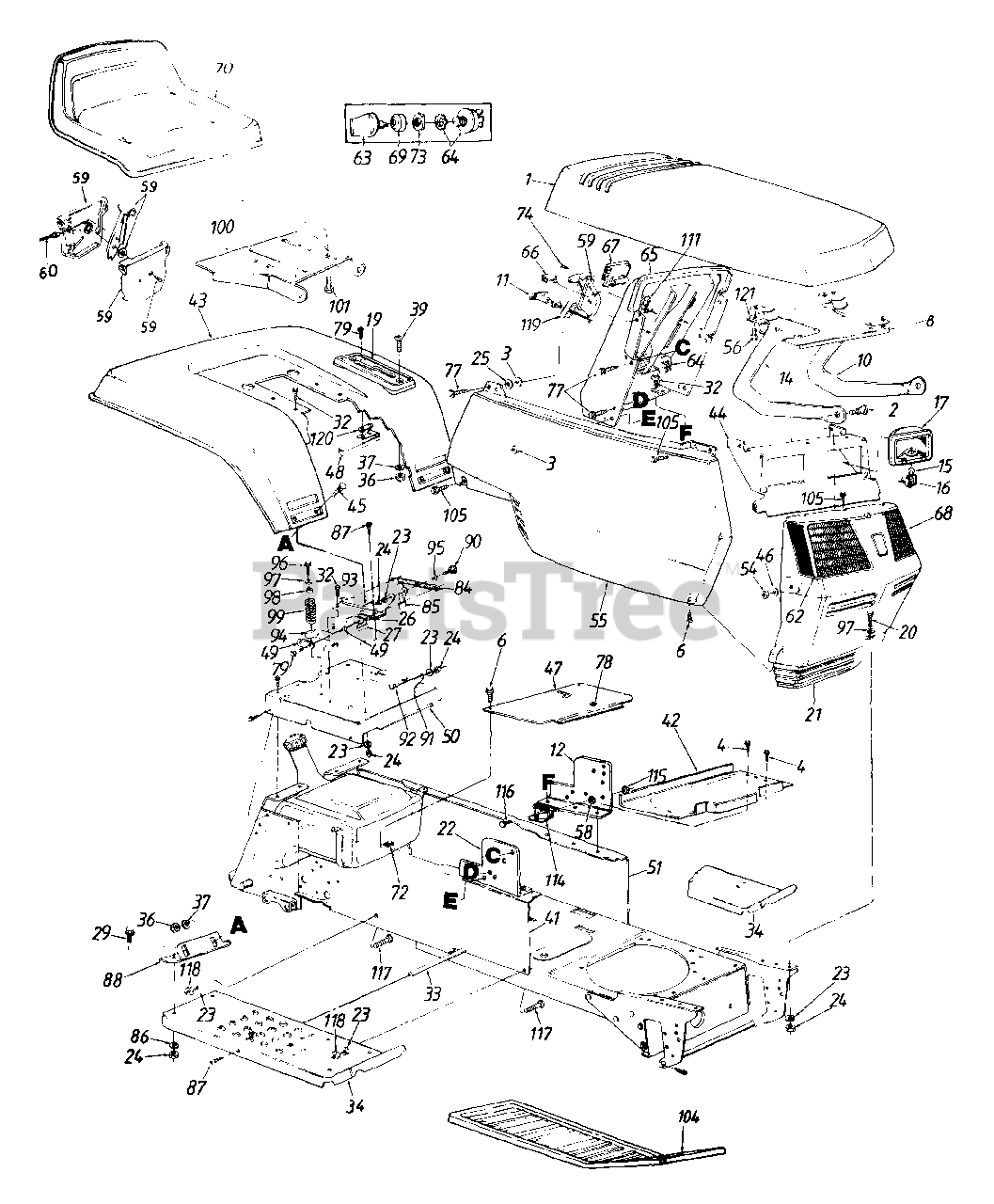

Hood Assembly/Seat/Frame/Grille/Fender Parts Diagram

  • Title

1

MTD 631-0013

Hood w/Foam
(Superseded to 931-1433)

Note: New Part

Variations

MTD 631-0013-0638

HOOD-RADIANT YELLO - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 731-1433

Hood
(Superseded to 931-1433)

Note: New Part

$

$

Not available

2

MTD 738-0141

Shld. Bolt .437" Dia. x .35"
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

3

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

8

MTD 16808

Hood Reinforcement

$

$

Not available

10

MTD 17761

Hood Hinge - L.H.

$

$

Not available

11

MTD 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

12

MTD 17294

Dash Support Brkt. - L.H.

$

$

Not available

14

MTD 17760

Hood Hinge - R.H.

$

$

Not available

15

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

16

MTD 725-1650

Twist Lock - Lamp Socket
(Superseded to 925-1650)

$

$

Not available

17

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

19

MTD 731-1053A

Speed Control Index Brkt.
(Superseded to 931-1734)

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 731-1442

Grille
(Superseded to 731-1442A)

Note: New Part

$

$

Not available

22

MTD 17293

Dash Support Bracket - R.H.
(Superseded to 17293B-0637)

$

$

Not available

23

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

26

MTD 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

27

MTD 725-1439

Seat Spring Switch

$8.49

$

In Stock, Qty 10

0

29

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, Qty 20+

0

32

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 738-0435

Running Board Rod

$

$

Not available

34

MTD 16922

Running Board - R.H.

Variations

MTD 16922-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16922-0499

No Longer Available RUNNING BO - CUB BEIGE (0499)

$

$

Not available

MTD 16922-0629

No Longer Available RUNNING BO - SILVER FLAKE (0629)

$

$

Not available

MTD 16922-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 16922-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16922-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 16922-0650

No Longer Available RUNNING BO - RED METALLIC (0650)

$

$

Not available

MTD 16922-0660

No Longer Available RUNNING BO - TEAL (0660)

$

$

Not available

MTD 16922-0662

No Longer Available RUNNING BO - OYSTER GRAY (0662)

$

$

Not available

MTD 16922-0665

No Longer Available RUNNING BO - YARDMAN GREEN (0665)

$

$

Not available

MTD 16922-0667

No Longer Available RUNNING BO - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16922-0674

No Longer Available RUNNING BO - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16922-0686

No Longer Available RUNNING BO - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 16922-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 16922-0691

No Longer Available RUNNING BO - BLACK JACK (0691)

$

$

Not available

MTD 16922-0692

No Longer Available RUNNING BO - AGWAY BLUE (0692)

$

$

Not available

MTD 16922-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

MTD 16921

Running Board - L.H.

Variations

MTD 16921-0483

No Longer Available RUNNING BO - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16921-0498

No Longer Available RUNNING BO - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16921-0499

No Longer Available RUNNING BO - CUB BEIGE (0499)

$

$

Not available

MTD 16921-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 16921-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 16921-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16921-0648

No Longer Available RUNNING BO - TECH GRAY (0648)

$

$

Not available

MTD 16921-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 16921-0662

No Longer Available RUNNING BO - OYSTER GRAY (0662)

$

$

Not available

MTD 16921-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 16921-0667

No Longer Available RUNNING BO - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16921-0674

No Longer Available RUNNING BO - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16921-0686

No Longer Available RUNNING BO - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 16921-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 16921-0691

No Longer Available RUNNING BO - BLACK JACK (0691)

$

$

Not available

MTD 16921-0692

No Longer Available RUNNING BO - AGWAY BLUE (0692)

$

$

Not available

MTD 16921-0709

No Longer Available RUNNING BO - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

36

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

37

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

39

MTD 710-0166

Truss Mach. Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

41

MTD 17360A

R.H. Side Frame

Note: New Part

$

$

Not available

42

MTD 17635

Battery Plate

$

$

Not available

43

MTD 17330A

Rear Fender

Variations

MTD 17330A-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17330A-0606

No Longer Available FENDER-RR - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 17330A-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

MTD 17330A-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17330A-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17330A-0662

No Longer Available FENDER-RR - OYSTER GRAY (0662)

$

$

Not available

MTD 17330A-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

$

$

44

MTD 17223

Light Bracket

Variations

MTD 17223-0637

No Longer Available BRACKET-LI - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

MTD 736-0278

FL-Wash..328" I.0. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

47

MTD 17393A

Transmission Panel
(Superseded to 17393B-0637)

Note: New Part

Variations

MTD 17393A-0483

No Longer Available COVER-TRANSMI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17393A-0499

No Longer Available COVER-TRANSMI - CUB BEIGE (0499)

$

$

Not available

MTD 17393A-0637

No Longer Available COVER-TRANSMI - POWDER BLACK (0637)

$

$

Not available

MTD 17393A-0638

No Longer Available COVER-TRANSMI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17393A-0648

No Longer Available COVER-TRANSMI - TECH GRAY (0648)

$

$

Not available

MTD 17393A-0665

No Longer Available COVER-TRANSMI - YARDMAN GREEN (0665)

$

$

Not available

$

$

48

MTD 725-1643

Reverse Safety Switch

$10.99

$

In Stock, only 1 left!

0

49

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

50

MTD 16848C

Seat Plate
(Superseded to 983-0108A-0637)

Variations

MTD 16848C-0637

BRACKET ASSY-PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 17361B

L.H. Side Frame

Note: New Part

$

$

Not available

54

MTD 712-0158

Hex Cent. I -Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

55

MTD 631-0014

Side Panel Ass'y. - R.H.

Note: New Part

$

$

Not available

MTD 631-0015

Side Panel Ass'y. - L.H.
(Superseded to 731-1435)

Note: New Part

$

$

Not available

MTD 731-1434

Side Panel Ass'y. - R.H.

Note: New Part

$

$

Not available

MTD 731-1435

Side Panel Ass'y. - L.H.

Note: New Part

$

$

Not available

56

MTD 710-0896

Hex Wash. Hd. 8-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0222

Ext L-Wash. 1/4" I D.

$5.99

$

In Stock, only 3 left!

0

59

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

60

MTD 746-0634

Throttle Control Wire 35" Lg.
(Superseded to 946-0634)

$11.99

$

In Stock, only 1 left!

0

MTD 746-0630

Throttle Control Wire - 39" Lg
(Superseded to 946-0630A)

Note: New Part

$28.99

$

Usually ships in 3-6 days

0

62

MTD 731-0948

Lens - R H
(Superseded to 931-0948)

$36.99

$

In Stock, only 1 left!

0

63

MTD 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

64

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

65

MTD 731-0957A

Dash Panel

$

$

Not available

66

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

67

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

68

MTD 731-0949

Lens - L H
(Superseded to 931-0949)

$

$

Not available

69

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

70

MTD 757-0365

Seat Ass'y
(Superseded to 957-04011)

Note: New Part

$

$

Not available

72

MTD 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

73

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

MTD 710-0779A

Truss Mach. AB-Tap Scr #10 x 5" Lg.

$4.49

$

In Stock, Qty 12

0

77

MTD 710-0642

Hex Wash. Hd. Tap Scr 1/4 x 75" Lg.

$4.49

$

In Stock, Qty 20+

0

78

MTD 731-0405

Snap Bushing

$

$

Not available

79

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr #8 x 50" Lg.

$4.49

$

In Stock, Qty 20+

0

84

MTD 732-0581B

Ext. Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

85

MTD 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

86

MTD 736-0242

Bell-Wash. .345" I.D. x 88" O.D

$4.49

$

In Stock, Qty 20+

0

87

MTD 710-0323

Truss Machine Scr 5/16-18 x 75" Lg.

$4.99

$

In Stock, only 2 left!

0

88

MTD 17406

Fender Bracket - R.H
(Superseded to 17406-0637)

Variations

MTD 17406-0637

Fender Bracket-R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17407

Fender Bracket - L.H.

Variations

MTD 17407-0637

No Longer Available BRKT-FENDE - POWDER BLACK (0637)

$

$

Not available

$

$

90

MTD 738-0296

Shld. Bolt 437" Dia. x 268"

$4.49

$

In Stock, Qty 20+

0

91

MTD 17701

Seat Pivot Brkt. Support - L.H.
(Superseded to 17701-0637)

Variations

MTD 17701-0637

BRACKET-SEAT SUP-L - POWDER BLACK (0637)

$

$

Not available

$

$

92

MTD 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

93

MTD 17702

Seat Pivot Brkt. Support - R.H.
(Superseded to 17702-0637)

Variations

MTD 17702-0637

BRACKET-SEAT SUP-R - POWDER BLACK (0637)

$

$

Not available

$

$

94

MTD 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

95

MTD 736-0141

Spr.-Wash. .445" I.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

96

MTD 710-0601

Hex Wash. Hd. Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

97

MTD 736-3078

Fl-Wash. .344" I.D, x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

98

MTD 722-0160

Bushing

$

$

Not available

99

MTD 732-0588

Compression Spring

$15.99

$

In Stock, only 2 left!

0

100

MTD 15607D

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

101

MTD 710-0623

Hex Tap Scr 3/8-16 x .75"

$4.49

$

In Stock, Qty 20+

0

104

MTD 731-1051

Foot Pad

$

$

Not available

105

MTD 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

111

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

114

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

115

MTD 712-0271

Hex Sems Nut 1/4-20 Thd

$4.49

$

In Stock, Qty 20+

0

116

MTD 710-0289

Hex Bolt 1/4-20 x 5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

117

MTD 710-1012

Rib Neck Bolt 5/16-24 x 75" Lg.

$4.49

$

Usually ships in 3-6 days

0

118

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

119

MTD 17782

Retainer Clip

$

$

Not available

120

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

121

MTD 17762

Hood Reinforcement Spacer

Variations

MTD 17762-0637

No Longer Available SPACER-HOO - POWDER BLACK (0637)

$

$

Not available

$

$
