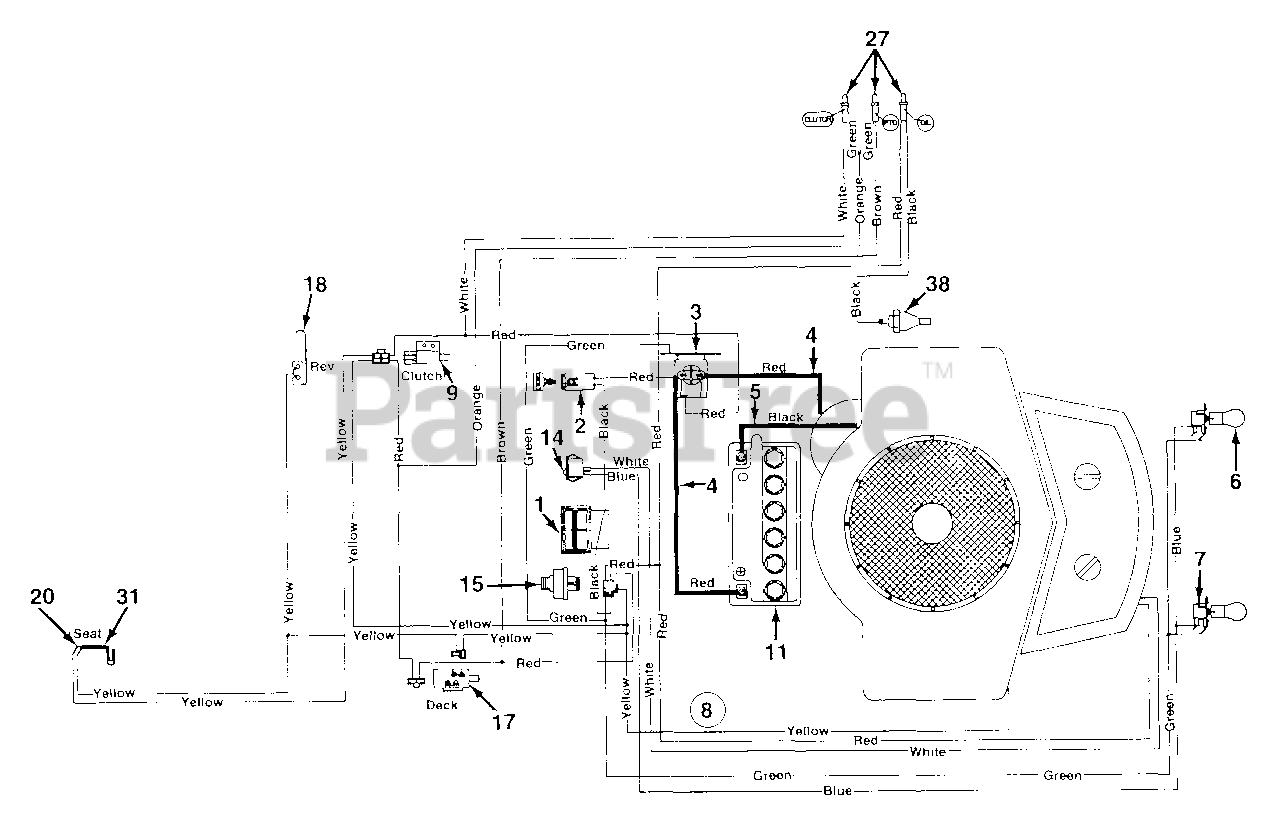

143V834H401 - Yard-Man Garden Tractor (1993) Electrical/Switches Parts Diagram

Garden Tractor

Electrical/Switches Parts Diagram

  • Title

1

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

2

MTD 725-1625

Fuse 7.5 Amp

Note: Model 143V834H401

$8.49

$

Usually ships in 3-6 days

0

2

MTD 725-1381

Fuse 20 Amp
(Superseded to 925-1381)

Note: Model 143W834H401

$6.49

$

In Stock, Qty 11

0

3

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

4

MTD 725-0561

Wire
(Superseded to 629-0705)

$

$

Not available

5

MTD 725-0996

6 Ga. Black Wire 7.5" Lg.

$

$

Not available

6

MTD 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

7

MTD 725-1650

Socket
(Superseded to 925-1650)

$

$

Not available

8

MTD 629-0110

Wire Harness

Note: New Part - Model 143V834H401; Code N

$

$

Not available

MTD 629-0117

Wire Harness
(Superseded to 929-0117)

Note: New Part - Model 143W834H401; Code N

$

$

Not available

9

MTD 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

11

MTD 725-1635

Battery (275 Cold Crank Amps)
(Superseded to 753-0608)

$

$

Not available

14

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

15

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

17

MTD 725-0465A

Safety Switch (Deck)
(Superseded to 925-0465A)

$30.99

$

In Stock, only 1 left!

0

18

MTD 725-1643

Spring Lever

$10.99

$

In Stock, only 1 left!

0

20

MTD 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

27

MTD 725-1365

Bulb
(Superseded to 925-1365)

$10.99

$

In Stock, only 3 left!

0

31

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 8

0

38

MTD 751-0537

Oil Pressure Switch

Note: Model 143V834H401

$

$

Not available
