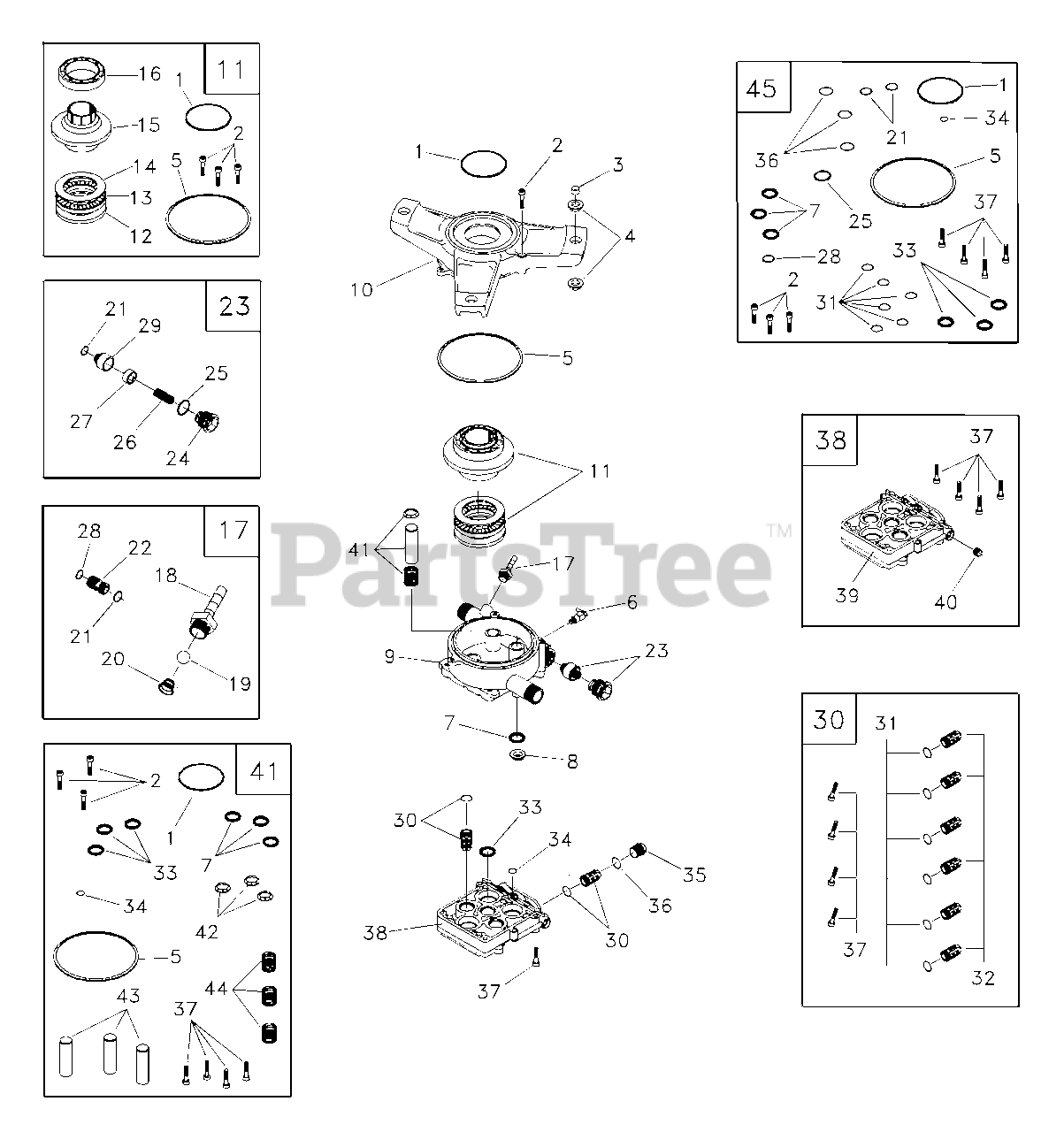

1439-0 - Generac 2,100 PSI Pressure Washer Pump Parts Diagram

2,100 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton 98300GS

SEAL, Engine Donut

$11.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton 97962GS

CAPSCREW, Socket Head

$3.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 96795GS

SLEEVE, Grommet Spacer

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 21429GS

BUSHING, Rubber Mount

$5.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 97835GS

O-RING, Housing Seal

$3.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 21783GS

THERMAL RELIEF, GPW-EG
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 93680GS

SEAL, Oil Piston

$7.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 97831GS

SPACER, Pilot

$5.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B2702GS

HOUSING, Piston

$

$

Not available

10

Briggs & Stratton 98227GS

ADAPTER, Engine

$21.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B2310GS

KIT, AXIAL CAM SERV

$64.99

$

Usually ships in 2-12 days

0

1

-----

SEAL, Engine Donut

$

$

Not available

2

-----

CAPSCREW, Socket Head

$

$

Not available

5

-----

O-RING, Housing Seal

$

$

Not available

12

-----

WASHER, Brg.

$

$

Not available

13

-----

ASSY, Brg. Cage

$

$

Not available

14

-----

WASHER, Brg.

$

$

Not available

15

-----

CAM, Axial

$

$

Not available

16

-----

BEARING, Ball

$

$

Not available

17

Briggs & Stratton 185287GS

KIT, CHEM INJECT

$

$

Not available

18

-----

FITTING, Chem Inject

$

$

Not available

19

-----

BALL, Chem Inject

$

$

Not available

20

-----

SPRING, Chem Inject

$

$

Not available

21

-----

O-RING, Venturi & Seat, Black

$

$

Not available

22

-----

VENTURI, Chem Inject

$

$

Not available

28

-----

O-RING, Venturi, Yellow

$

$

Not available

23

Briggs & Stratton 187879GS

KIT, UNLOADER

$38.99

$

In Stock, Qty 7

0

21

-----

O-RING, Venturi & Seat, Black

$

$

Not available

24

-----

CAP, Unloader

$

$

Not available

25

-----

O-RING, Unloader Cap

$

$

Not available

26

-----

SPRING, Unloader

$

$

Not available

27

-----

ASSY, Piston, Unloader

$

$

Not available

29

-----

SEAT, Unloader

$

$

Not available

30

Briggs & Stratton B3513GS

KIT, CHECK VALVES

$

$

Not available

31

-----

O-RING, Check Valve

$

$

Not available

32

-----

ASSY, Check Valve

$

$

Not available

37

-----

CAPSCREW, Socket Head

$

$

Not available

33

Briggs & Stratton B5433GS

SEAL, Double-Lip

$17.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 97837GS

O-RING, Hi-Pressure Transfer

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 97841GS

CAP, Outlet Check Valve

$

$

Not available

36

Briggs & Stratton 97840GS

O-RING, Outlet CV Cap

$5.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 40946GS

CAPSCREW, Socket Head

$3.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton B4186GS

KIT, HEAD CASTING SFG

$

$

Not available

37

-----

CAPSCREW, Socket Head

$

$

Not available

39

-----

HEAD, Pump

$

$

Not available

40

-----

PLUG, W/VIRB

$

$

Not available

41

Briggs & Stratton B2312GS

KIT, PISTON & SPRING

$112.99

$

Usually ships in 2-12 days

0

1

-----

SEAL, Engine Donut

$

$

Not available

2

-----

CAPSCREW, Socket Head

$

$

Not available

7

-----

SEAL, Oil Piston

$

$

Not available

5

-----

O-RING, Housing Seal

$

$

Not available

33

-----

SEAL, Double-Lip

$

$

Not available

34

-----

O-RING, High Pressure Transfer

$

$

Not available

37

-----

CAPSCREW, Socket Head

$

$

Not available

42

-----

RETAINER, Piston Spring

$

$

Not available

43

-----

PISTON

$

$

Not available

44

-----

SPRING, Piston Return

$

$

Not available

45

Briggs & Stratton B1933GS

KIT, O-RING/SEAL SERV
(Superseded to 185714GS)

$

$

Not available

1

-----

SEAL, Engine Donut

$

$

Not available

2

-----

CAPSCREW, Socket Head

$

$

Not available

5

-----

O-RING, Housing Seal

$

$

Not available

7

-----

SEAL, Oil Piston

$

$

Not available

21

-----

O-RING, Venturi & Seat, Black

$

$

Not available

25

-----

O-RING, Unloader Cap

$

$

Not available

28

-----

O-RING, Venturi, Yellow

$

$

Not available

31

-----

O-RING, Check Valve

$

$

Not available

33

-----

SEAL, Double-Lip

$

$

Not available

34

-----

O-RING, High Pressure Transfer

$

$

Not available

36

-----

O-RING, Outlet CV Cap

$

$

Not available

37

-----

CAPSCREW, Socket Head

$

$

Not available
